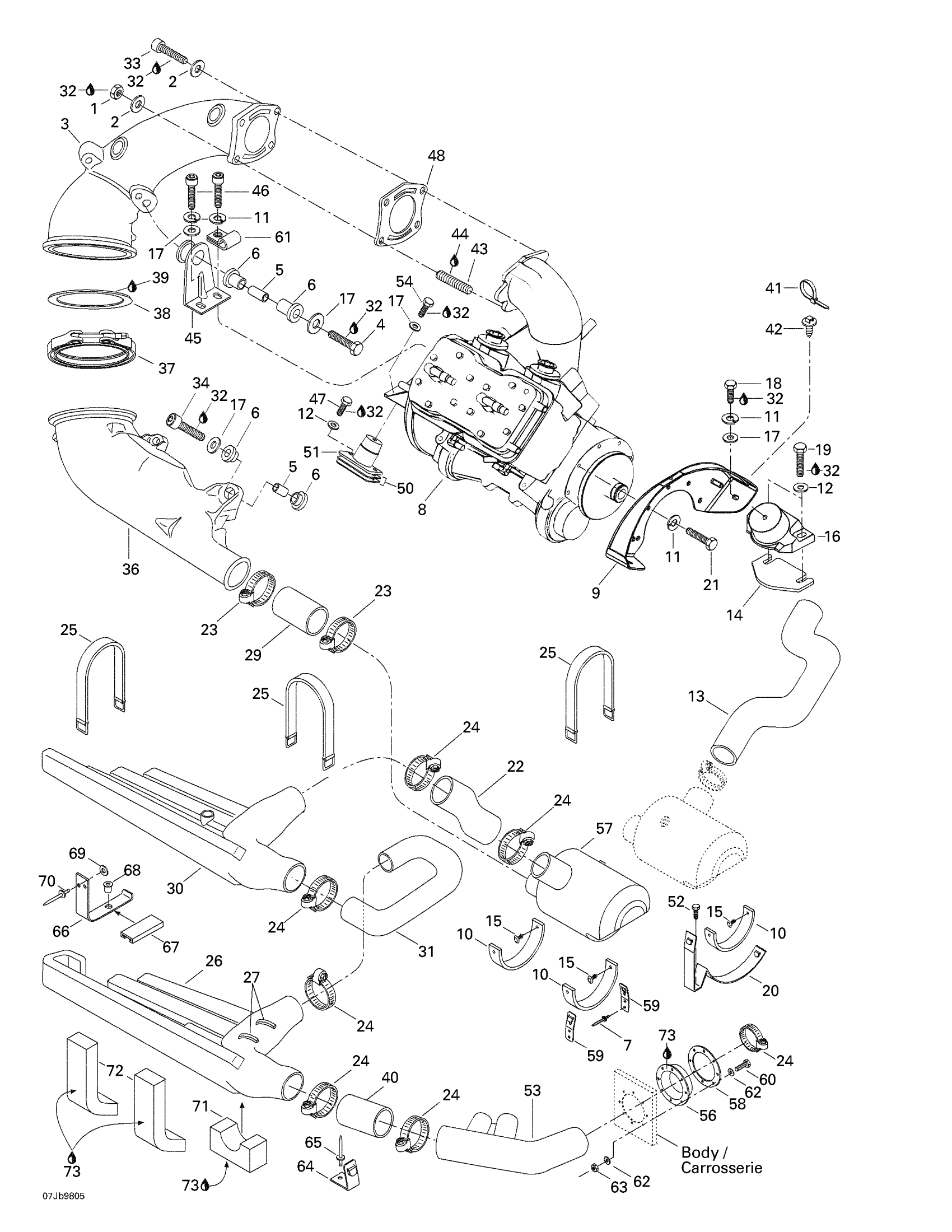

Sea-doo Speedster, 5615, 1998 Engine Support And Muffler Diagram

#

Description
Price

1

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

2

Flat Washer 10 mm, Stainless

234001600

$0.91

3

Head Pipe Ass'y | Includes 6 - 8.

274000161

Unavailable

4

Hex. Screw M8 X 40

207084060

$1.85

5

Bushing

274000254

Unavailable

6

RUBBER BUSHING - Call your local BRP dealership

293830036

Unavailable

7

Pop Rivet 3/16"

293150008

$0.40

8

Rotax Engine 787 (Silver)

270000378

Unavailable

9

Engine Support

270000359

Unavailable

10

Rubber Pad

293830055

Unavailable

11

Lock Washer 8 mm, Stainless

234181601

$0.46

12

Stainless, Flat Washer 8 mm

234081600

$0.46

13

RH Exhaust Hose

204340089

Unavailable

14

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

15

Black, Dart

293730006

$0.81

16

Rubber Mount

270000352

Unavailable

17

Flat Washer 8 mm, Stainless

234082600

$1.98

18

Hex. Screw M8 x 16

215681660

Unavailable

19

Hex. Screw M8 X 40

207184060

$1.85

20

Muffler Support

274000234

Unavailable

21

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

22

EXHAUST HOSE L.H - Call your local BRP dealership

204340090

Unavailable

23

Norma Clamp

293650077

$6.11

24

NORMA CLAMP - Call your local BRP dealership

293650076

Unavailable

25

Retainer Strap

293850097

$9.26

26

Resonator # 2

204340071

Unavailable

27

Seal Tray 1000Mm Long

219704368

$12.30

28

Exhaust Hose

204340072

Unavailable

29

Exhaust Hose

274000170

Unavailable

30

Resonator # 1

204340070

Unavailable

31

Exhaust Hose

204340072

Unavailable

32

Loctite 243, 10 ml

293800060

$20.77

33

Socket Head Screw M10 x 35

215903560

Unavailable

34

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

35

LH Exhaust Hose (Port Side)

204340107

Unavailable

36

Cone Pipe ass'y

274000210

Unavailable

37

Clamp-Exhaust

274000357

Unavailable

38

Brass Washer

274000169

Unavailable

39

Sealant, Loctite, 80 ml | DS 650

293800090

$20.77

40

Exhaust Hose | CHALLENGER 1800 (5774).

204340073

Unavailable

41

Tie Wrap 142 mm

293750002

$0.88

42

Mount Dart

293730040

$0.86

43

Stud M10

211300017

Unavailable

44

Loctite 271, 10 ml

293800005

$20.77

45

Pipe Support

274000598

Unavailable

46

Allen Screw M8 x 20

215982060

Unavailable

47

Hex. Screw M8 X 40

207184060

$1.85

48

Gasket

290931500

Unavailable

49

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

50

Shim 0.3 mm - Call your local BRP dealership

204250048

Unavailable

SHIM 1.3 MM - Call your local BRP dealership This part replaces 204250049.

204250049

Unavailable

51

Rubber Mount

270000353

Unavailable

52

Screw 6.3 x 32

216663260

Unavailable

53

Resonator # 3

204340091

Unavailable

54

Hex. Screw M8 X 18

207181860

$1.43

55

Flat Washer 8 mm, Stainless

234082600

$1.98

56

Gasket

274000276

Unavailable

57

Expension Chamber R.H

204340069

Unavailable

Expension Chamber L.H

204340080

Unavailable

58

Ring

274000277

Unavailable

59

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

60

Hex. Screw M6 X 25

207162560

$1.22

61

Clip

293850018

Unavailable

62

Stainless Flat Washer M6

234061600

$0.25

63

Hex. Elastic Stop Nut M6

232561600

$0.92

64

Strap Clip 90°

204060017

Unavailable

65

Avdel Rivet 3/16"

293150037

$0.47

66

Resonator Support

204060192

Unavailable

67

Protector Pad

204060193

Unavailable

68

CUSHION - Call your local BRP dealership

293350016

Unavailable

69

Flat Washer 5 mm, Stainless

234052600

$0.64

70

Pop Rivet 3/16"

293150008

$0.40

71

Support Foam Lower

204060190

Unavailable

72

Foam Support, Exterior

204060191

Unavailable

73

Silicone Sealant 51388, 300 ml

296000309

$35.72
