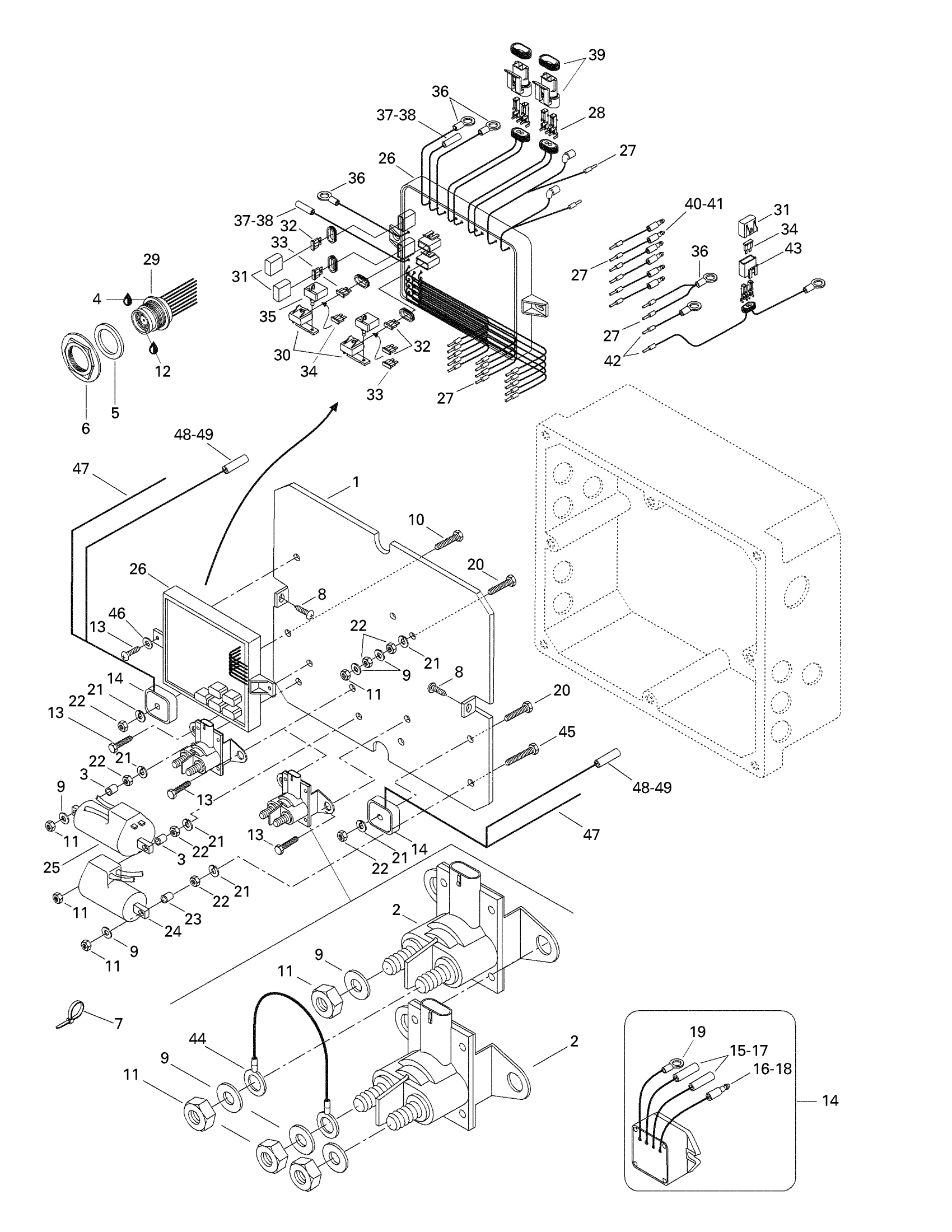

Sea-doo Speedster, 5602/5608, 1997 Electrical Box Diagram

#

Description
Price

1

Mounting Plate

278000570

Unavailable

2

Starter Relay

278003012

$35.07

3

SPACER - Call your local BRP dealership

278000235

Unavailable

4

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

5

Gasket(Canon)

293250053

Unavailable

6

Nut(Canon)

211100029

Unavailable

7

Tie Wrap 94 mm | 4X4

293750001

$0.83

8

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

9

Stainless Flat Washer M6

234061600

$0.25

10

Hex. Screw M6 X 40

207164060

$2.74

11

Hex. Elastic Stop Nut M6

232561600

$0.92

12

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

13

Hex. Flange Screw M6 X 10

210261040

$1.25

14

RECTIFIER ASS'Y - Call your local BRP dealership | Includes 1 - 6.

278000123

Unavailable

15

Female Terminal | DS 650 X

278001009

$2.55

16

Male Terminal

278000230

$3.48

17

Insulated Sheath

278001007

$3.22

18

Insulated Sheath

278001008

$3.20

19

Open Barrel

278000992

$1.79

20

Hex. Screw M6 X 35

207163560

$1.17

21

Lock Washer Helical M6

234161601

$0.92

22

Hex. Nut M6

232061600

$0.91

23

Spacer

278000876

Unavailable

24

Ignition Coil R.H

204470005

Unavailable

25

Ignition Coil L.H

204470138

Unavailable

26

Electronic Module Ass'y | Includes 26 - 43.

204470056

Unavailable

27

Male Terminal(Canon)

278000868

Unavailable

28

Female Terminal

278001114

$2.55

29

Female Housing(Canon)

278000867

Unavailable

30

Fuse Holder Cap

278001326

$6.03

31

FUSE CAP - Call your local BRP dealership

278000378

Unavailable

32

Fuse, 5 Amperes | CE

278000344

$3.22

33

Fuse, 15 Amperes

278000343

$2.72

34

Fuse, 20 Amperes

409003900

$3.22

35

Fuse Holder

278000379

Unavailable

36

Open Barrel

278000992

$1.79

37

Female Terminal | DS 650 X

278001009

$2.55

38

Insulated Sheath

278001007

$3.22

39

Male Connector, 2 Circuits

278001113

$12.65

40

Male Terminal

278000230

$3.48

41

Insulated Sheath

278001008

$3.20

42

Male Terminal

278000869

Unavailable

43

Fuse Holder

204470059

Unavailable

44

Junction Cable

204470073

Unavailable

45

Hex. Screw M6 X 45

207164560

$1.51

46

Flat Washer M6, Stainless

234062600

$0.64

47

<> Wire (Not Shown) (Incl. It.8, 9)

278000588

Unavailable

48

Male Terminal

278000230

$3.48

49

Insulation Sheath

278000231

$4.13
