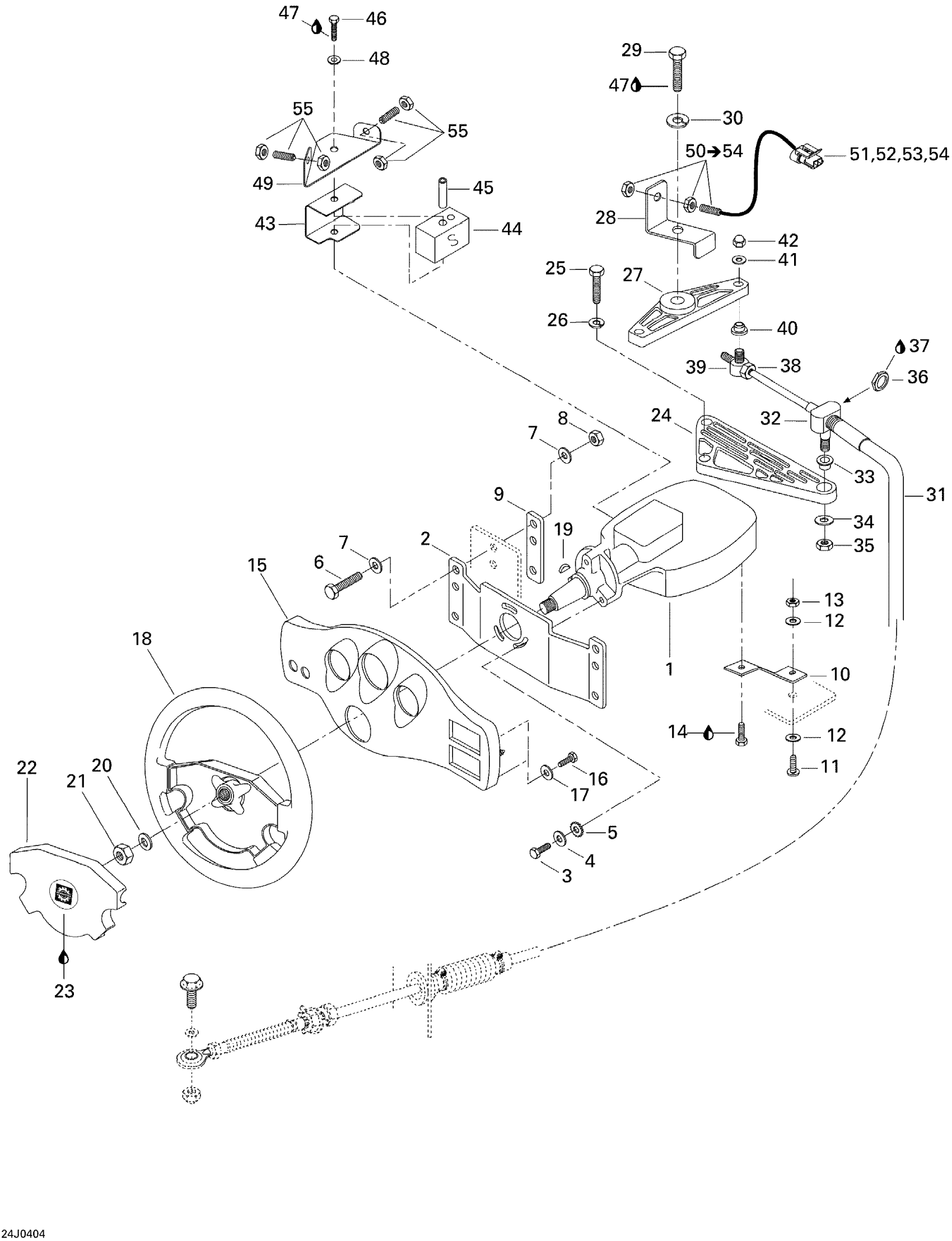

Sea-doo Speedster 1600, 240 ER, 2004 Steering System Diagram
#
1
HELM ASS'Y - Call your local BRP dealership
204390244
Unavailable
2
Steering Support
204390247
Unavailable
3
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership
211000050
Unavailable
4
Flat Washer M6, Stainless
234062600
Unavailable
5
Serrated Lock Washer 8 mm
234481608
Unavailable
6
Hex. Screw M6 X 30
207163060
Unavailable
7
Stainless Flat Washer M6
234061600
Unavailable
8
Hex. Elastic Stop Nut M6
232561600
Unavailable
9
Reinforcement Plate
204390130
Unavailable
10
Steering Support
204390243
Unavailable
11
PHILLIPS SCREW M6 X 25 - Call your local BRP dealership
208662560
Unavailable
12
Flat Washer M6, Stainless
234062600
Unavailable
13
Hex. Elastic Stop Nut M6
232561600
Unavailable
14
Loctite 243, 10 ml
293800060
Unavailable
15
Fascia
204390209
Unavailable
16
Hex. Flange Screw K40 X 25
241142560
Unavailable
17
Flat Washer 4 mm, Stainless
234042600
Unavailable
18
STEERING, BLACK - Call your local BRP dealership
204390440
Unavailable
19
WOODRUFF KEY - Call your local BRP dealership
277000384
Unavailable
20
FLAT WASHER, STAINLESS - Call your local BRP dealership
211200006
Unavailable
21
LOCK NUT 1/2-20 - Call your local BRP dealership
211100021
Unavailable
22
Black, Steering Center
204390076
Unavailable
23
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
Unavailable
24
Cable Support
204390125
Unavailable
25
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership
211000050
Unavailable
26
Lock Washer 1/4”
211200025
Unavailable
27
HELM ARM - Call your local BRP dealership
204390250
Unavailable
28
Switch Mount
204390376
Unavailable
29
HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership
211000054
Unavailable
30
Lock Washer 1/4”
211200025
Unavailable
31
STEERING CABLE - Call your local BRP dealership
204390212
Unavailable
32
PIVOT 3/8? - Call your local BRP dealership
277000461
Unavailable
33
Flanged Bushing
293350014
Unavailable
34
Flat Washer 10 mm, Stainless
234001600
Unavailable
35
LOCK NUT - Call your local BRP dealership
211100024
Unavailable
36
HEX. JAM NUT 5/8-18 - Call your local BRP dealership
204390053
Unavailable
37
Loctite 243, 10 ml
293800060
Unavailable
38
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
39
PIVOT - Call your local BRP dealership
277000456
Unavailable
40
BUSHING - Call your local BRP dealership
204130095
Unavailable
41
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
42
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
43
Bumper Support
204390245
Unavailable
44
Bumper
204390246
Unavailable
45
Bushing
204130004
Unavailable
46
HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership
204100014
Unavailable
47
Loctite 243, 10 ml
293800060
Unavailable
48
Flat Washer M6, Stainless
234062600
Unavailable
49
Cam Switch
204390339
Unavailable
50
LOW SPEED CONTROL SENSOR ASS'Y - Call your local BRP dealership | Includes 46 to 50
204470631
Unavailable
51
Female Terminal Housing
204470634
Unavailable
52
Terminal Support
204470635
Unavailable
53
Wire Seal
204470641
Unavailable
54
Female Terminal
278001481
Unavailable
55
Low Speed Control Actuator
204470632
Unavailable
