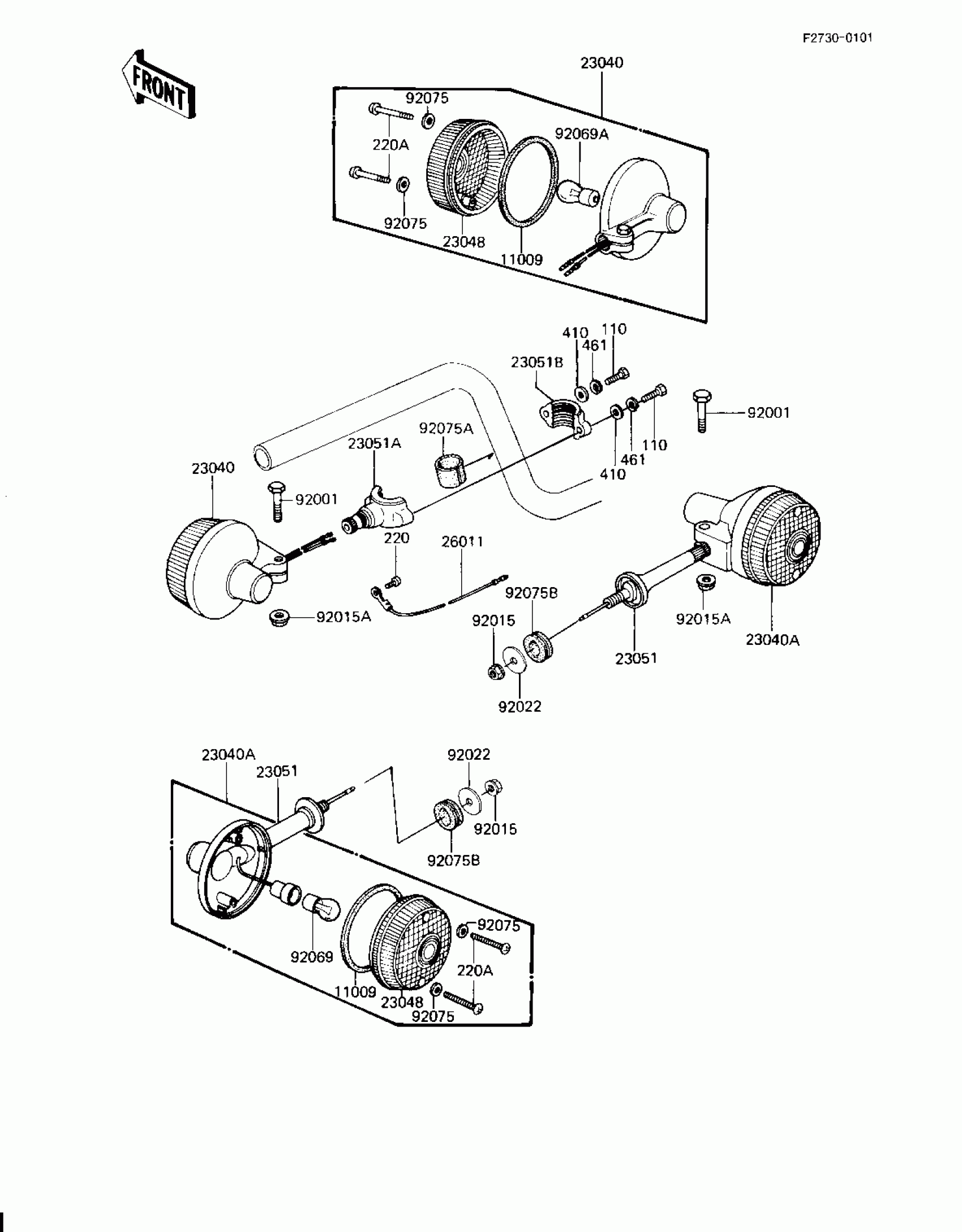

Kawasaki Spectre TURN SIGNALS Diagram

#

Description
Price

11009

GASKET,SIGNAL LAMP

23050-003

$4.39

23040

LAMP-SIGNAL,FR

23040-1042

Unavailable

23040A

LAMP-SIGNAL,RR

23040-1043

Unavailable

23048

LENS-SIGNAL LAMP,"045-6588"

23048-1001

$8.79

23051

BRACKET-SIGNAL LAMP,R

23051-1076

Unavailable

23051A

BRACKET-SIGNAL LAMP,F

23051-1077

Unavailable

23051B

BRACKET-SIGNAL LAMP,F

23051-1079

Unavailable

26011

WIRE-LEAD,SIGNAL LAMP

26011-061

Unavailable

92001

BOLT,6X30,BLACK

92001-1750

$2.41

92015

NUT,FLANGED,10MM

92015-1428

$3.81

92015A

NUT,FLANGED,6MM,BLACK

92015-1237

$4.18

92022

WASHER,10.5X37X1.6

92022-1246

$7.49

92069

BULB,12V 32CP(23W)

92069-055

$3.95

92069A

BULB,12V 32/3CP(23/8W)

92069-060

$7.39

92075

WASHER,PLAIN,4MM

23058-002

$1.77

92075A

DAMPER

23066-003

$7.58

92075B

DAMPER,SIGNAL LAMP

92075-1391

$12.64

110

BOLT,5X16,BLACK

110C0516A

Unavailable

220

SCREW PAN HEAD 3X5

220B0305A

$0.54

220A

SCREW-PAN-CROS

220B0420

Unavailable

410

WASHER PLAIN

410F0500

$1.24

461

WASHER-SPRING,5MM,BLACK

461K0500

Unavailable
