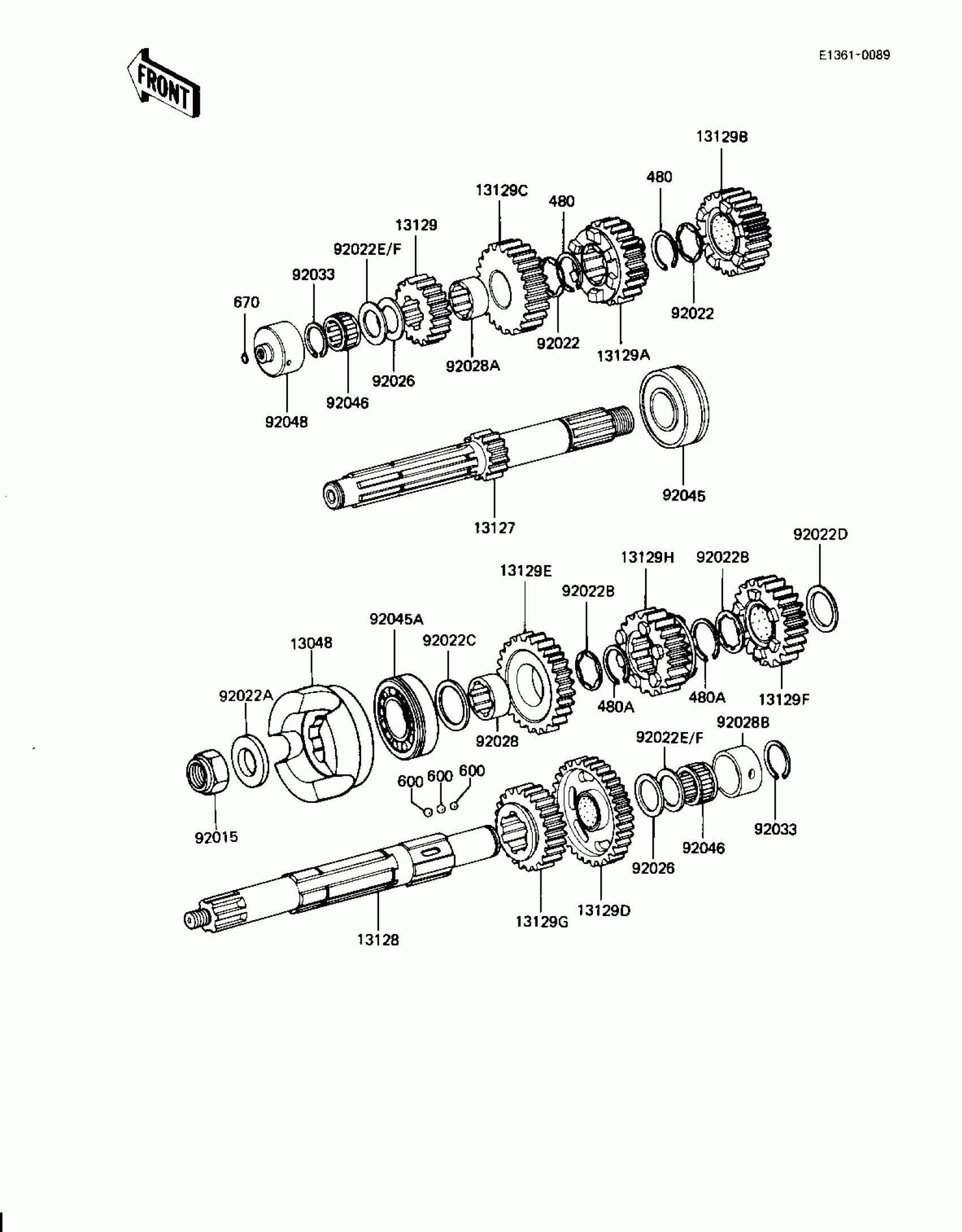

Kawasaki Spectre TRANSMISSION Diagram

#

Description
Price

13048

DAMPER,OUTPUT SHAFT

13048-1004

Unavailable

13127

SHAFT-TRANSMISSION IN

13127-1038

Unavailable

13128

SHAFT-TRANSMISSION OU

13128-1035

Unavailable

13129

GEAR,INPUT 2ND,18T

13129-1235

$180.38

13129A

GEAR,INPUT 3RD,21T

13129-1236

Unavailable

13129B

GEAR,INPUT 4TH,23T

13129-1237

Unavailable

13129C

GEAR,INPUT TOP,25T

13129-1238

Unavailable

13129D

GEAR,OUTPUT LOW,37T

13129-1239

$237.03

13129E

GEAR,OUTPUT 2ND,33T

13129-1240

$199.93

13129F

GEAR,OUTPUT 3RD,30T

13129-1241

Unavailable

13129G

GEAR,OUTPUT 4TH,27T

13129-1242

Unavailable

13129H

GEAR,OUTPUT TOP,26T

13129-1243

$219.65

92015

NUT,LOCK,14MM

92015-1067

$9.56

92022

WASHER,TOOTHED,26X35.5X1.5

92022-1077

$10.63

92022A

WASHER,14.1X31X5

92022-1115

$11.41

92022B

WASHER,TOOTHED,30X42X1.4

92022-1218

Unavailable

92022C

WASHER,28.3X42X2.9

92022-1219

$14.24

92022D

WASHER,32.3X42X3

92022-1220

$12.73

92022E

WASHER,22.3X35X1.6

92022-212

$9.58

92022F

WASHER,22.3X35X1.2

92022-213

Unavailable

92026

SPACER,22X35.5X1.0

92026-1020

$4.61

92028

BUSHING,2ND GEAR

92028-1112

Unavailable

92028A

BUSHING,TOP GEAR

92028-1124

$46.36

92028B

BUSHING,OUTPUT SHAFT

92028-123

$55.78

92033

RING-SNAP,20X25.5X1.2

92033-025

$3.78

92045

BEARING-BALL,5305NSH2

92045-1028

$135.50

92045A

BEARING-BALL,63/28NC3

92045-1034

$60.25

92046

BEARING-NEEDLE,FWF-223014

92046-031

$15.89

92048

RACE,DRIVE SHAFT BEARING

92048-1012

$51.50

480

CIRCLIP-TYPE-C,28MM

480J2800

$3.58

480A

CIRCLIP-TYPE-C,32MM

480J3200

$1.28

600

BALL-STEEL,3/16

600A0600

$1.02

670

O RING,8MM

670B1508

$1.00
