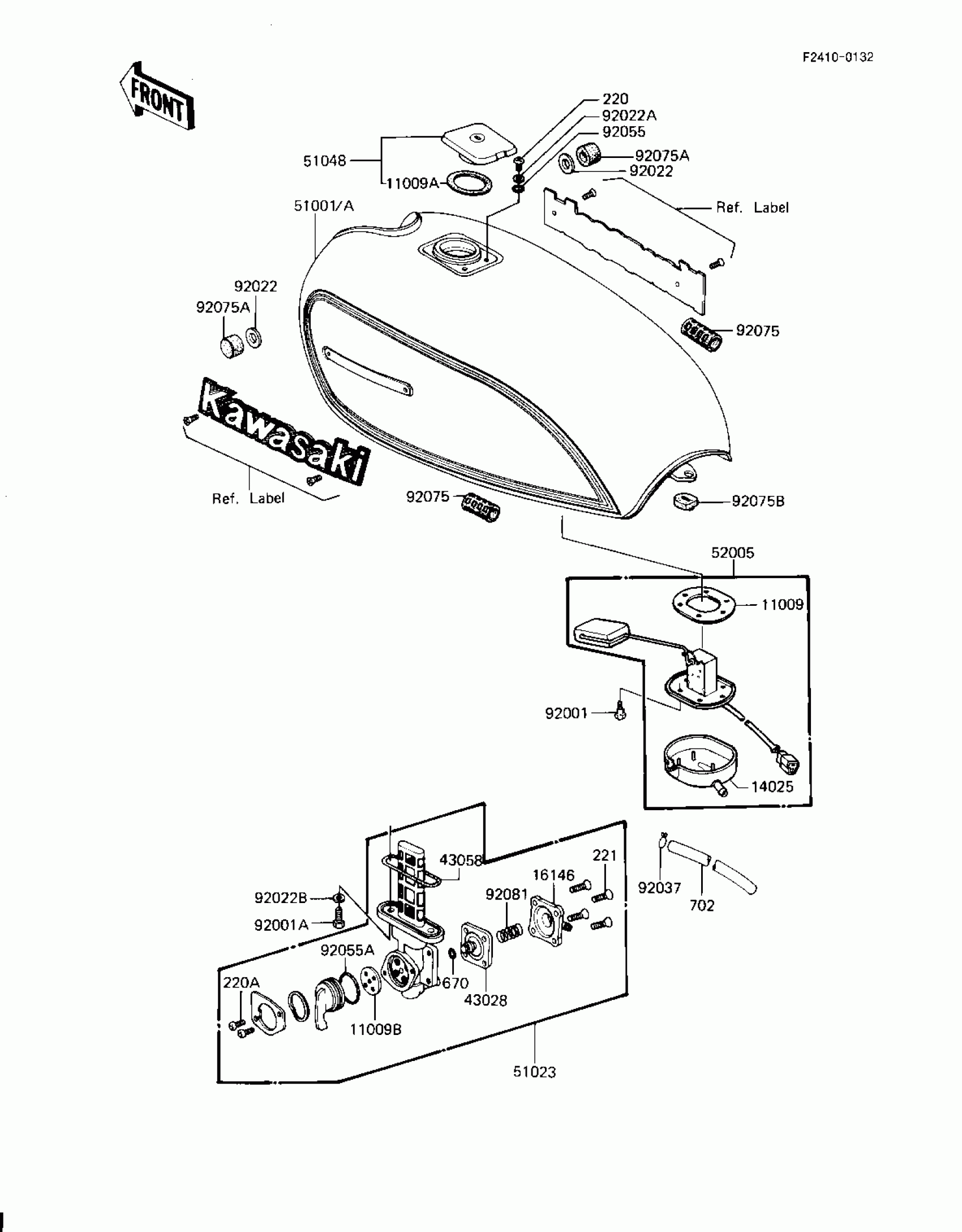

Kawasaki Spectre FUEL TANK Diagram

#

Description
Price

11009

GASKET,FUEL GAUGE

11009-1037

Unavailable

11009A

GASKET,FUEL TANK CAP

11009-1051

$9.09

11009B

GASKET,TAP VALVE

11009-1194

$8.29

14025

COVER,FUEL GAUGE

14024-1434

$36.06

16146

COVER-ASSY,TAP DIAPHRAGM

16146-1005

$19.78

43028

DIAPHRAGM,TAP

43028-1015

$17.72

43058

RING,TAP FLANGED

51039-010

$5.77

51001A

TANK-COMP-FUEL,E/GOLD

51001-5198-H7

$780.36

51023

TAP-ASSY,FUEL

51023-1039

$134.37

51048

CAP-ASSY-TANK,FUEL

51048-1015

$162.26

52005

GAUGE,FUEL

52005-1027

Unavailable

92001

BOLT,FUEL GAUGE

92001-1069

$6.17

92001A

BOLT,6X20

92001-1091

$3.04

92022

WASHER,10.5X26X2.3

92022-044

$2.99

92022A

WASHER,5.3X10X0.8

92022-1038

$2.76

92022B

WASHER-PLAIN

92022-183

$2.99

92037

CLAMP,TUBE

92037-147

$5.61

92055

RING-O

92055-1023

$3.04

92055A

RING-O,TAP LEVER

92055-1027

$3.98

92075

DAMPER,FUEL TANK

92075-084

$7.65

92075A

DAMPER,FUEL TANK

92075-125

$4.67

92075B

DAMPER,FUEL TANK

92075-295

$7.30

92081

SPRING,TAP DIAPHRAGM

92081-1171

$3.32

220

SCREW PAN HEAD 5X10

220B0510

Unavailable

220A

UNAVAILABLE IN PRICE BOOK

22000308A

Unavailable

221

SCREW-CSK-CROS,4X14

221B0414

Unavailable

670

O RING,4MM

670B1504

$3.17

702

TUBE-RUBBER,7X10X780

702A07780

$10.11
