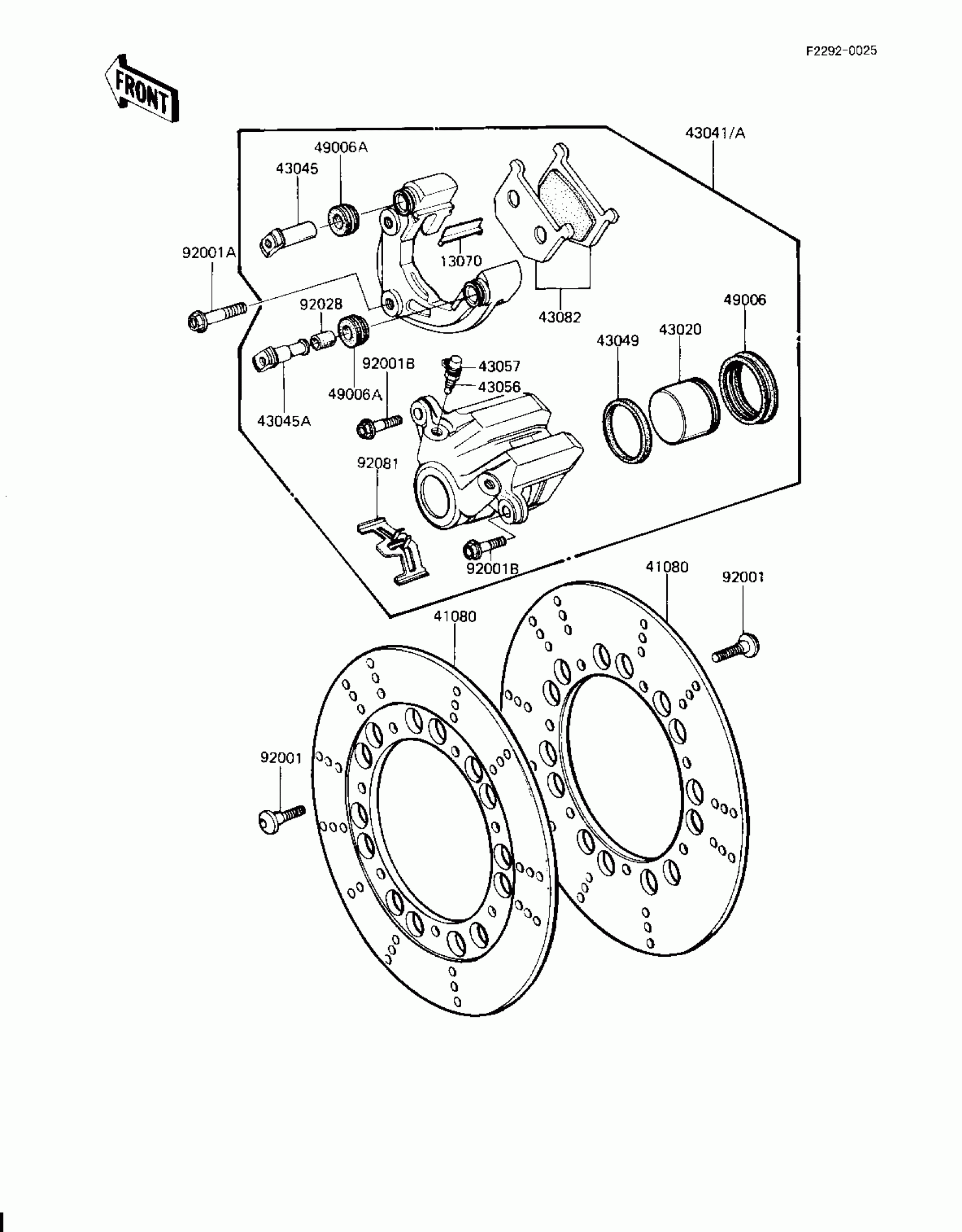

Kawasaki Spectre FRONT BRAKE Diagram

#

Description
Price

13070

GUIDE,PAD

13070-1026

$8.42

41080

DISC,FR,SILVER

41080-1127

$641.01

43020

PISTON-COMP-BRAKE

43020-1096

Unavailable

43041

CALIPER-ASSY,FRONT-LH

43041-1062

$429.46

43041A

CALIPER-ASSY,FRONT-RH

43041-1063

$404.44

43045

SHAFT-CALIPER

43045-1007

$21.69

43045A

SHAFT-CALIPER

43045-1008

$21.69

43049

PACKING,PISTON SEAL

43049-002

$10.56

43056

BREATHER

43056-003

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43082

PAD-ASSY-BRAKE

43082-1021

$76.49

49006

BOOT,PISTON

49006-1043

$10.53

49006A

BOOT,SHAFT

49006-1044

$6.62

92001

BOLT,DISC PLATE,8X30

92001-1951

$3.60

92001A

BOLT,FLANGED,10X41

92001-1355

Unavailable

92001B

BOLT,FLANGED,8X25,BLACK

92001-1510

$6.69

92028

BUSHING,7.8X11X15.7

92028-1090

$6.81

92081

SPRING,PAD

92081-1229

$16.98
