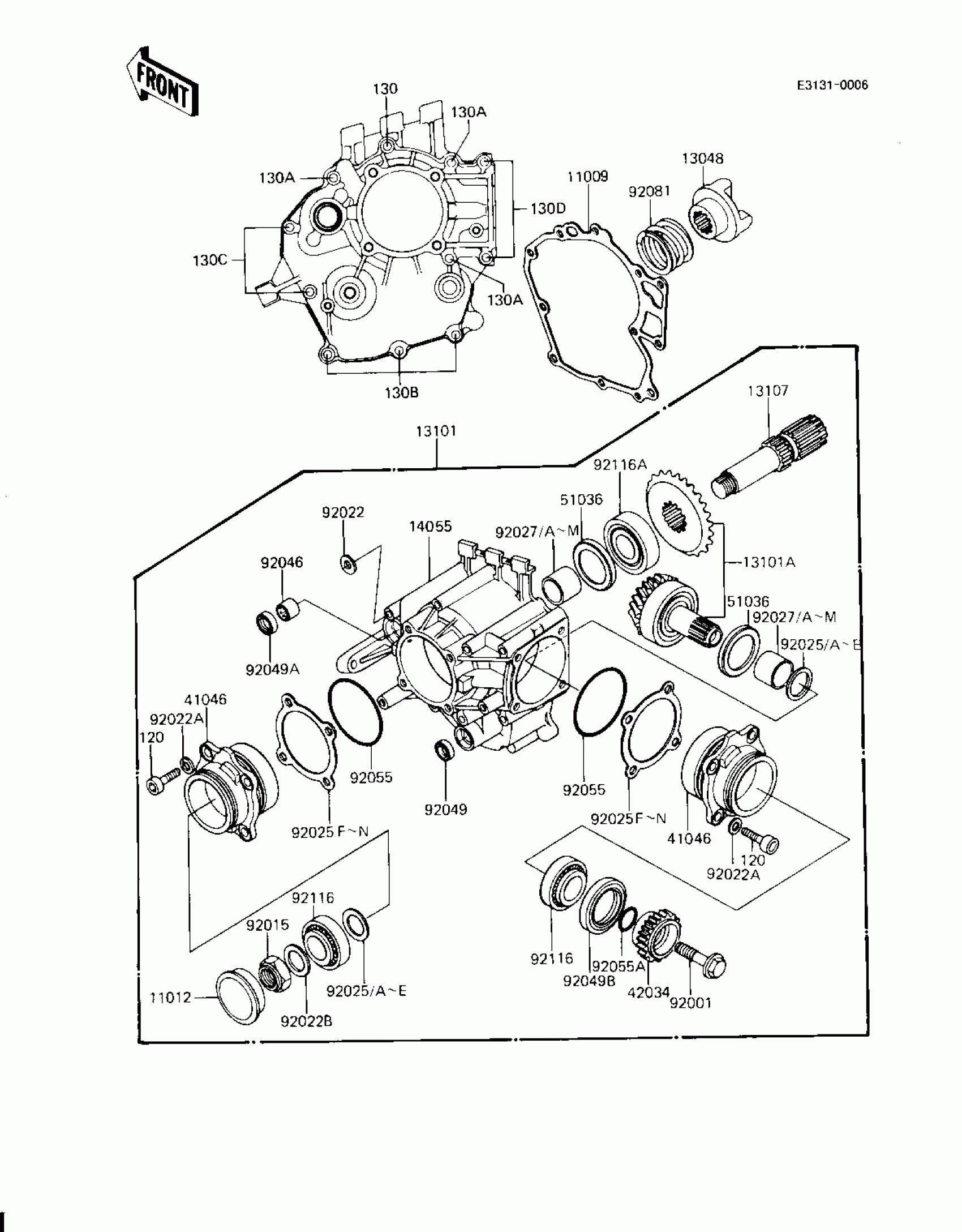

Kawasaki Spectre FRONT BEVEL GEARS Diagram

#

Description
Price

11009

GASCKET,FRONT BEVEL

11009-1112

Unavailable

11012

CAP

11012-1071

$31.13

13048

CAM,DAMPER

13048-1005

Unavailable

13101

GEAR-ASSY,FRONT BEVEL

13101-1014

Unavailable

13101A

GEAR-ASSY,FRONT BEVEL

13101-5027

$1,178.44

13107

SHAFT,FRONT BEVEL GER

13107-1014

Unavailable

14055

CASE,FRONT BEVEL GEAR

14055-1003

$553.86

41046

HOUSING-BEARING,F.BVL

41046-1011

$173.84

42034

COUPLING,FR DRIVEN

42034-1091

$135.99

51036

CUP

51036-1002

$4.86

92001

BOLT,FLANGED,12X42

92001-1169

$21.76

92015

NUT,20M/M

92015-1065

$9.24

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92022A

WASHER,8.5X13X1

92022-1028

$2.99

92022B

WASHER,20.3X36X2.3

92022-1116

$6.55

92025

SHIM,25.2X29.8X1.70

92025-1072

Unavailable

92025A

SHIM,25.2X29.8X1.72

92025-1073

Unavailable

92025B

SHIM,25.2X29.8X1.74

92025-1074

Unavailable

92025C

SHIM,25.2X29.8X1.76

92025-1075

Unavailable

92025D

SHIM,25.2X29.8X1.78

92025-1076

Unavailable

92025E

SHIM,25.2X29.8X1.80

92025-1077

Unavailable

92025F

SHIM,0.15T

92025-1078

Unavailable

92025G

SHIM,0.50T

92025-1079

Unavailable

92025H

SHIM,0.60T

92025-1080

Unavailable

92025I

SHIM,0.70T

92025-1081

Unavailable

92025J

SHIM,0.80T

92025-1082

Unavailable

92025K

SHIM,0.90T

92025-1083

Unavailable

92025L

SHIM,1.00T

92025-1084

Unavailable

92025M

SHIM,1.20T

92025-1085

Unavailable

92025N

SHIM,0.10T

92025-1115

Unavailable

92027

COLLAR,25.2X29.8X22.8

92027-1152

Unavailable

92027A

COLLAR,25.2X29.8X22.9

92027-1153

Unavailable

92027B

COLLAR,25.2X29.8X23

92027-1154

Unavailable

92027C

COLLAR,25.2X29.8X23.1

92027-1155

Unavailable

92027D

COLLAR,25.2X29.8X23.2

92027-1156

Unavailable

92027E

COLLAR,25.2X29.8X23.3

92027-1157

Unavailable

92027F

COLLAR,25.2X29.8X23.4

92027-1158

Unavailable

92027G

COLLAR,25.2X29.8X23.5

92027-1159

Unavailable

92027H

COLLAR,25.2X29.8X23.6

92027-1160

Unavailable

92027I

COLLAR,25.2X29.8X23.7

92027-1161

Unavailable

92027J

COLLAR,25.2X29.8X23.8

92027-1162

Unavailable

92027K

COLLAR,25.2X29.8X23.9

92027-1163

Unavailable

92027L

COLLAR,25.2X29.8X24

92027-1164

Unavailable

92027M

COLLAR,25.2X29.8X24.1

92027-1165

Unavailable

92046

BEARING-NEEDLE,7E-HK1412

92046-037

$17.53

92049

SEAL-OIL,SB12205

92049-004

$7.63

92049A

SEAL-OIL,TC14244.8

92049-1037

$9.56

920498

SEAL-OIL,TC35527

92049-1038

$14.16

92055

O RING,65MM

671B2565

$6.75

92055A

RING-O,ID=18.64

92055-1044

$4.41

92081

SPRING,CAM DAMPER

92081-1117

$69.36

92116

BEARING-ROLLER,4T30205

92116-1003

$32.44

92116A

BEARING-ROLLER,4T30305

92116-1006

$44.54

120

BOLT-SOCKET,8X30

120P0830

Unavailable

130

BOLT-FLANGED,6X100

130G06100

Unavailable

130A

BOLT-FLANGED,6X115

130G06115

Unavailable

130B

BOLT-FLANGED,6X55

130G0655

Unavailable

130C

BOLT-FLANGED,6X70

130G0670

Unavailable

130D

BOLT-FLANGED,6X95

130G0695

Unavailable
