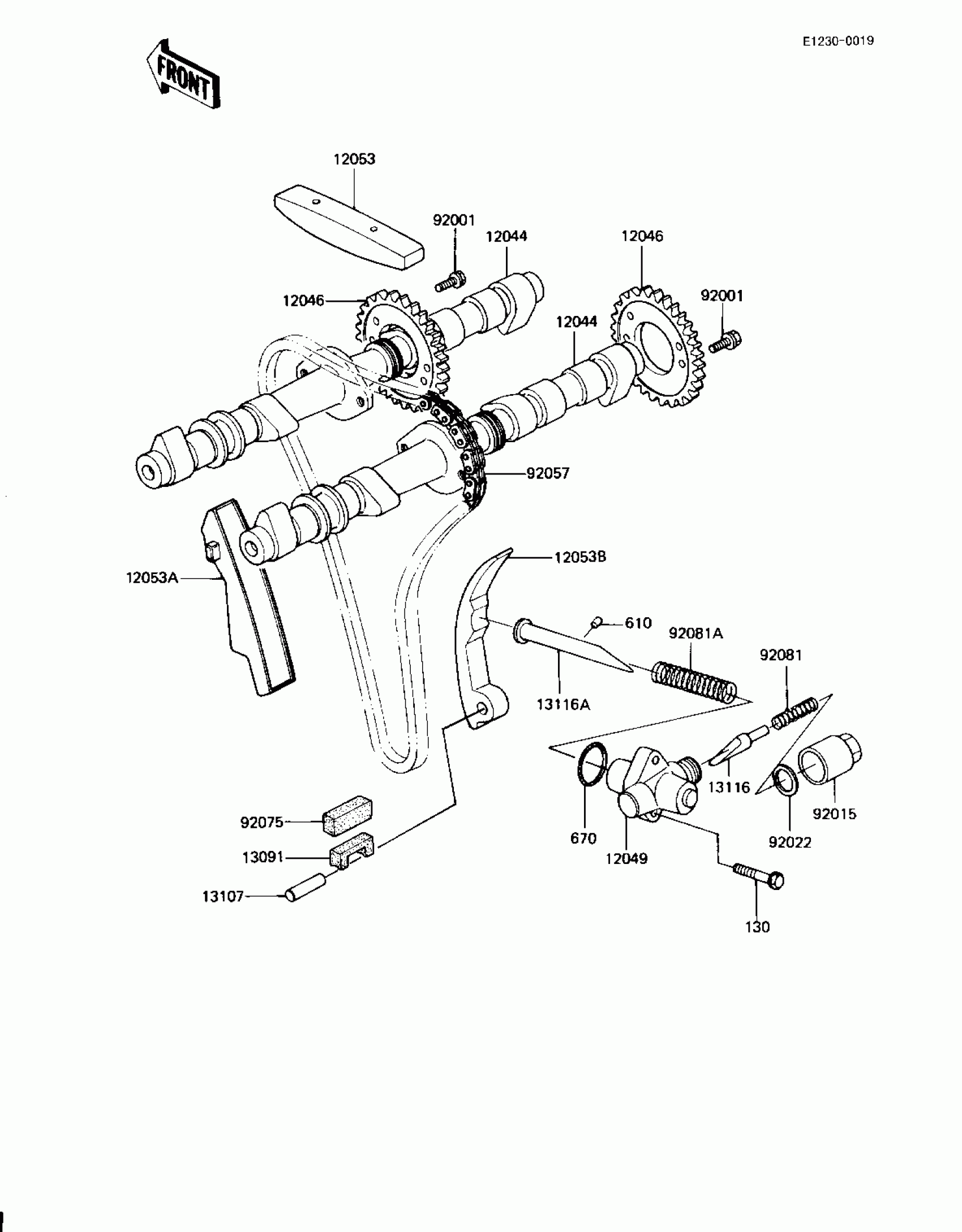

Kawasaki Spectre CAMSHAFTS/CHAIN/TENSIONER Diagram

Description

Price

12044

CAMSHAFT-VALVE

12044-1027

$607.74

12046

SPROCKET,CAMSHAFT,42T

12046-1025

$74.35

12049

TENSIONER,CAM CHAIN

12049-1009

Unavailable

12053

GUIDE-CHAIN,CAM,HEAD

12053-1018

$31.99

12053A

GUIDE-CHAIN,CAM,FR

12053-1048

$59.19

12053B

GUIDE-CHAIN,CAM,RR

12053-1049

$59.19

13091

HOLDER,CAM CHAIN GUIDE

13091-1084

$7.76

13107

SHAFT,8X28

13107-1020

Unavailable

13116

ROD-PUSH,TENSIONER

13116-1012

Unavailable

13116A

ROD-PUSH,TENSIONER

13116-1038

$43.46

92001

BOLT,FLANGED,6X11

92003-208

$3.29

92015

NUT,CAP,18MM

92015-1100

Unavailable

92022

WASHER,18.3X24X1.4

92022-1175

$3.92

92057

CHAIN,CAMSHAFT,75-010X152L

92057-1052

$149.10

92075

DAMPER,CAM CHAIN GUIDE

92075-1270

$10.00

92081

SPRING,TENSIONER

92081-1302

$4.85

92081A

SPRING,TENSIONER

92081-1380

$7.97

130

BOLT,FLANGED,6X25

130G0625

Unavailable

610

ROLLER,4X8

610A0408

$3.32

670

O RING,22MM

670E2022

$7.86
