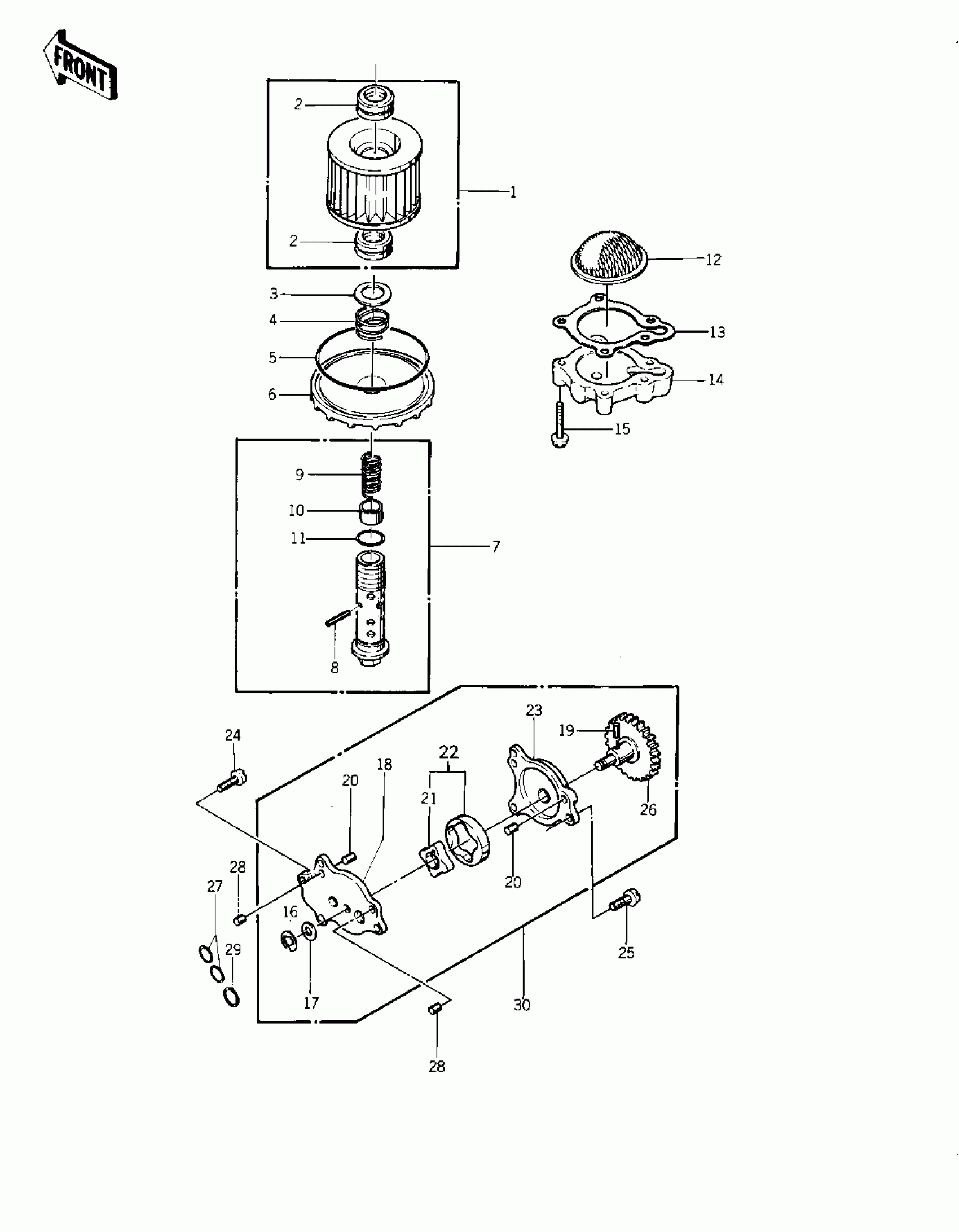

Kawasaki Special OIL PUMP/OIL FILTER ('75 S) Diagram

#

Description
Price

1

ELEMENT-OIL FILTER

16099-003

$9.67

2

GROMMET,OIL FILTER

16135-010

Unavailable

3

WASHER,20.5X30X0.5,STEEL

92022-144

$7.49

4

SPRING,OIL FILTER

92081-1018

$3.69

4

SPRING,OIL FILTER

92081-1018

$3.69

5

O RING,90MM

671B2590

$7.86

6

COVER,OIL FILTER

16101-004

$40.44

7

VALVE,OIL FILTER

16126-1108

$38.20

7

VALVE,OIL FILTER

16126-1108

$38.20

8

PIN,SPRING,2X20

92043-111

$5.46

9

SPRING

92081-133

Unavailable

10

PISTON

92136-001

Unavailable

11

O RING,16MM

670B2016

$1.20

12

FILTER,OIL

16111-003

$19.41

13

GASKET,OIL FILTER COVER

11009-1874

$6.44

14

COVER,OIL STRAINER

16101-003

$17.75

15

SCREW PAN HEAD 6X30

220B0630

Unavailable

16

CIRCLIP 5MM

482K5000

Unavailable

17

WASHER,THRUST

92026-098

Unavailable

18

COVER,OIL PUMP

16142-002

$19.46

19

PIN-DOWEL,4X8

551A0408

$0.80

20

PIN-DOWEL,6X8

551A0608

$3.53

21

ROTOR ASSY,OIL PUMP

16154-001

$44.42

22

ROTOR ASSY,OIL PUMP

16154-001

$44.42

23

BODY,OIL PUMP

16141-002

$43.76

24

SCREW PAN HEAD 6X18

220B0618

$2.92

25

SCREW PAN HEAD 6X25

220B0625

Unavailable

26

GEAR,OIL PUMP DRIVEN

16085-023

$77.49

27

"O" RING,11.5MM

92055-072

Unavailable

28

PIN-DOWEL,6X8

551A0608

$3.53

29

RING-O,13.5MM

92055-073

$9.71

30

OIL PUMP ASSY

16083-004

$156.90
