Partiron

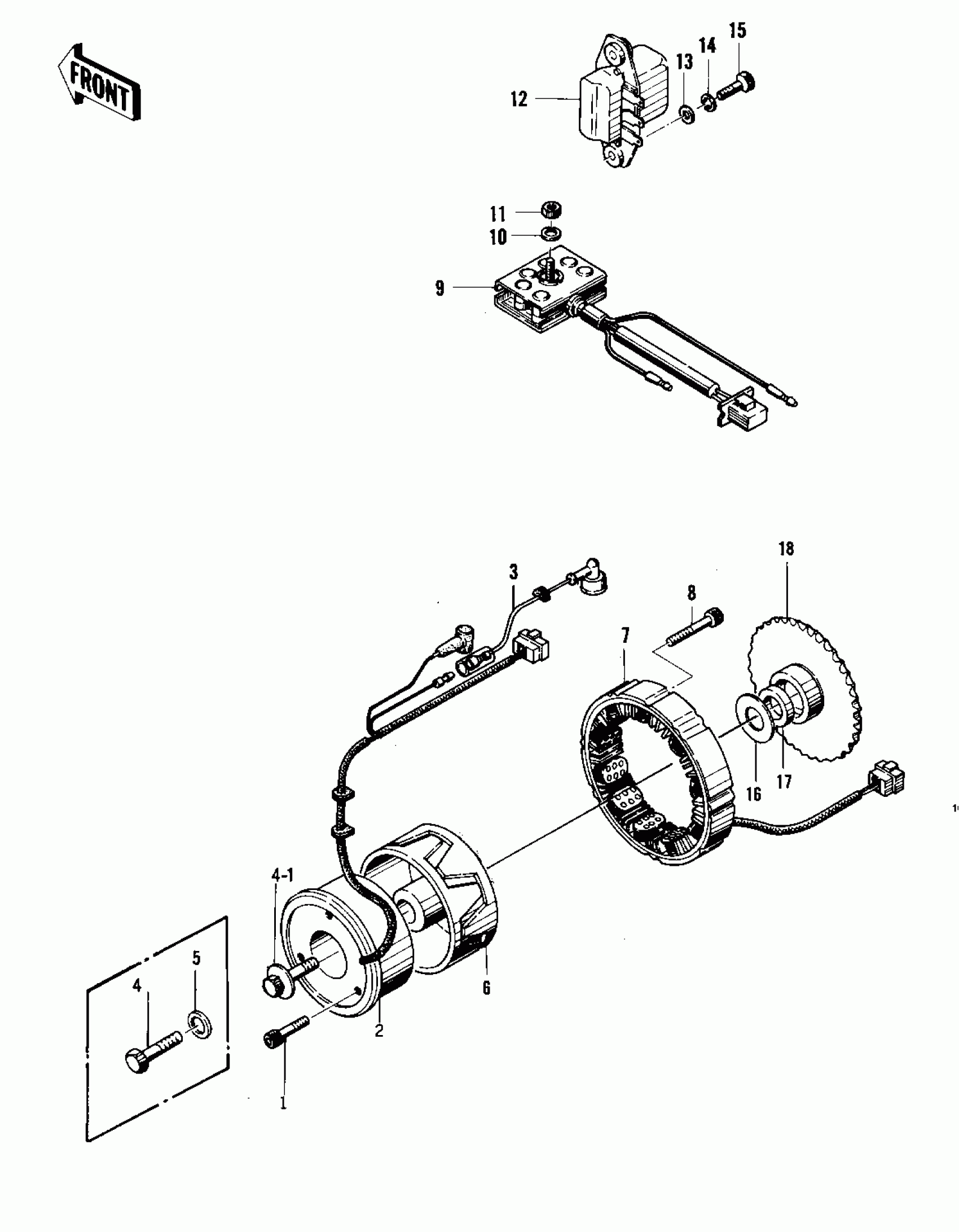

Kawasaki Special GENERATOR/REGULATOR/RECTIFIER ('75 S) Diagram

#

Description
Price

1

BOLT-SOCKET,6X18

120P0618

Unavailable

2

COIL FIELD

21077-002

$332.47

3

WIRE DYNAMO LEAD

26011-087

Unavailable

4

BOLT,10X40

92002-1303

Unavailable

4-1

BOLT,10X40

92002-1303

Unavailable

5

WASHER-PLN,11X36X4

92022-307

Unavailable

6

ROTOR

21007-030

$447.19

7

STATOR ASSY

21076-019

$560.77

8

BOLT,ALLEN,6X32

120Q0632

Unavailable

9

RECTIFIER

21061-030

$304.25

9

RECTIFIER

21061-030

$304.25

10

WASHER SPRING 6MM

461F0600

Unavailable

11

NUT 6MM

311B0600

Unavailable

12

UNAVAILABLE IN PRICE BOOK

21066-018

Unavailable

13

WASHER,6.5X20X1.6

92022-125

$1.02

14

WASHER SPRING 6MM

461F0600

Unavailable

15

BOLT-UPSET,6X20

112G0620

Unavailable

16

WASHER,THRUST

92026-100

$8.75

17

OIL SEAL

92050-066

$9.36

18

GEAR STARTER CLUTCH

21170-001

$80.29
