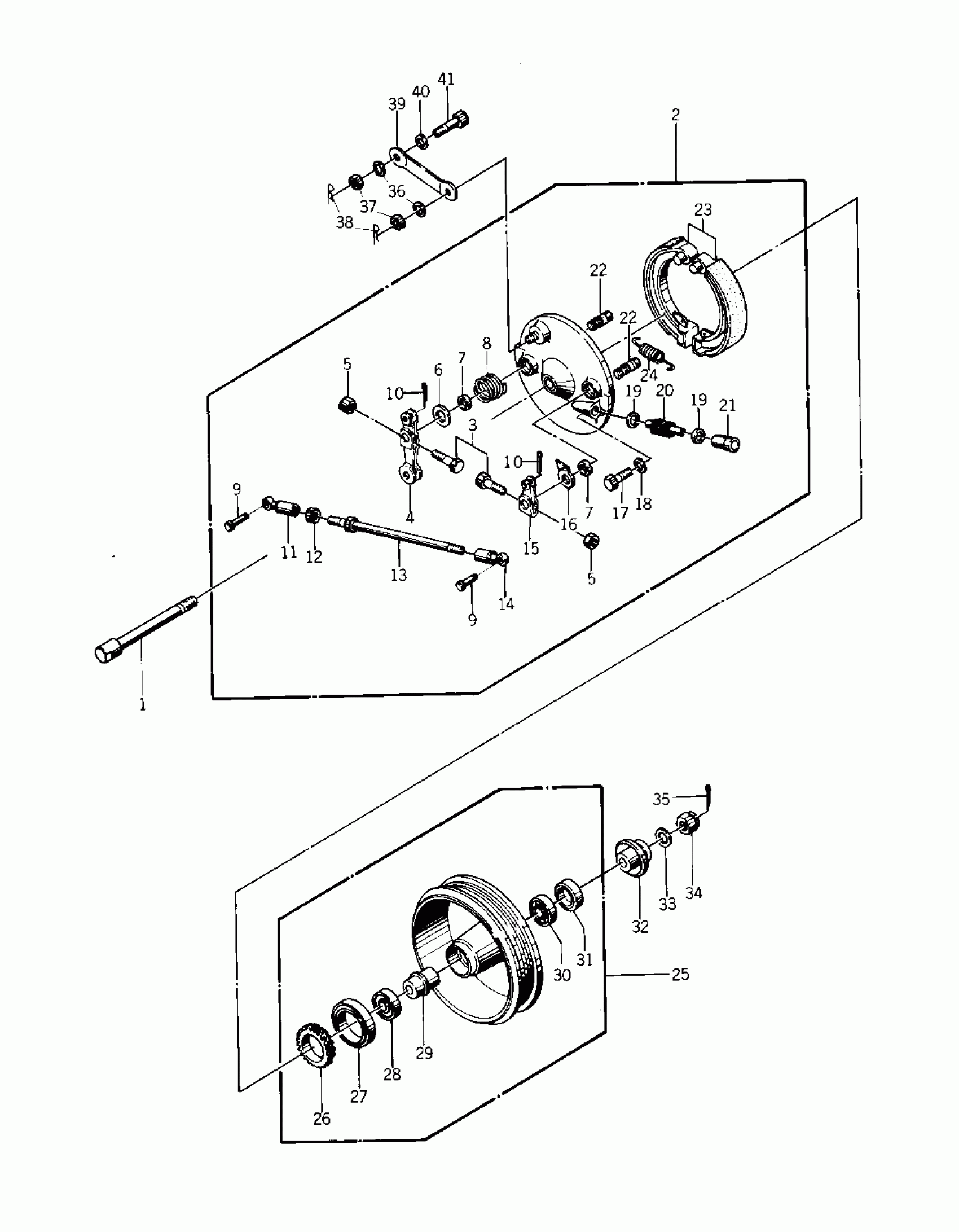

Kawasaki Special FRONT HUB/BRAKE ('76-'77 S2/S3) Diagram

#

Description
Price

1

AXLE,FRONT

41068-045

Unavailable

2

PANEL-ASY,FR BRK BUFF

41035-062-80

$227.35

3

BOLT-UPSET

112G0630

Unavailable

4

LEVER FRT BRK CAM 1ST

41053-011

Unavailable

5

NUT,6MM

41072-007

$3.92

6

WASHER,BRAKE CAMSHAFT

41052-005

Unavailable

7

SEAL,BRAKE CAM

41051-001

$4.26

8

SPRING FR BRK CAM LEV

41056-001

Unavailable

9

PIN BRAKE CONNECT ROD

41055-003

$9.02

10

PIN COTTER 1.2X10

550D1210

$1.73

11

ROD END,BRK CONNECT

41058-008

Unavailable

12

NUT-HEX

311B0500

$0.42

13

ROD BRK CAM LEV CONCT

41057-004

Unavailable

14

ROD END,BRK CONNECT

41058-009

Unavailable

15

LEVER FRT BRK CAM 2ND

41053-012

Unavailable

16

INDICATOR,FR BK SHOE

41085-015

$7.54

17

BOLT-UPSET

112G0618

Unavailable

18

WASHER PLAIN 6MM

411B0600

Unavailable

19

WASHER PINION THRUST

41063-003

Unavailable

20

PINION SPEEDOMETER

41060-007

Unavailable

21

BUSH SPEDMETER PINION

41062-003

$29.37

22

CAM SHAFT,FRONT BRAKE

41050-016

$46.61

23

SHOE,BRAKE

41048-019

Unavailable

24

SPRING FRNT BRK SHOE

41049-004

Unavailable

25

DRUM-ASSY,FR BRK

41034-007

$184.46

26

.GEAR SPEEDOMETER

41059-009

$20.29

27

OIL SEAL WOC55687

92050-017

Unavailable

29

SPACER F AXLE BEARING

41039-011

$7.64

30

BEARING-BALL,#6302C3

601B6302

Unavailable

31

OIL SEAL WTC25428

92052-005

Unavailable

32

COLLAR,FRONT AXLE

41069-029

$5.76

33

WASHER-PLAIN-SMALL,14MM

410B1400

Unavailable

34

NUT,CASTLE,14MM

42045-020

$7.65

35

PIN-COTTER,3.0X25

550D3025

Unavailable

36

WASHER SPRING 10MM

461F1000

Unavailable

37

NUT-HEX-FINE,10MM

314B1000

Unavailable

37

NUT-HEX-FINE,10MM

314B1000

Unavailable

38

PIN-SNAP,8MM

554A0800

Unavailable

38

PIN-SNAP,8MM

554A0800

Unavailable

39

TORQUE LINK,FR BRAKE

43007-042

$10.03

40

WASHER PLAIN 10MM

410B1000

Unavailable

41

BOLT-HEX HEAD,6MM

92003-069

Unavailable
