1977 Kawasaki Special Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1977 Kawasaki Special, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

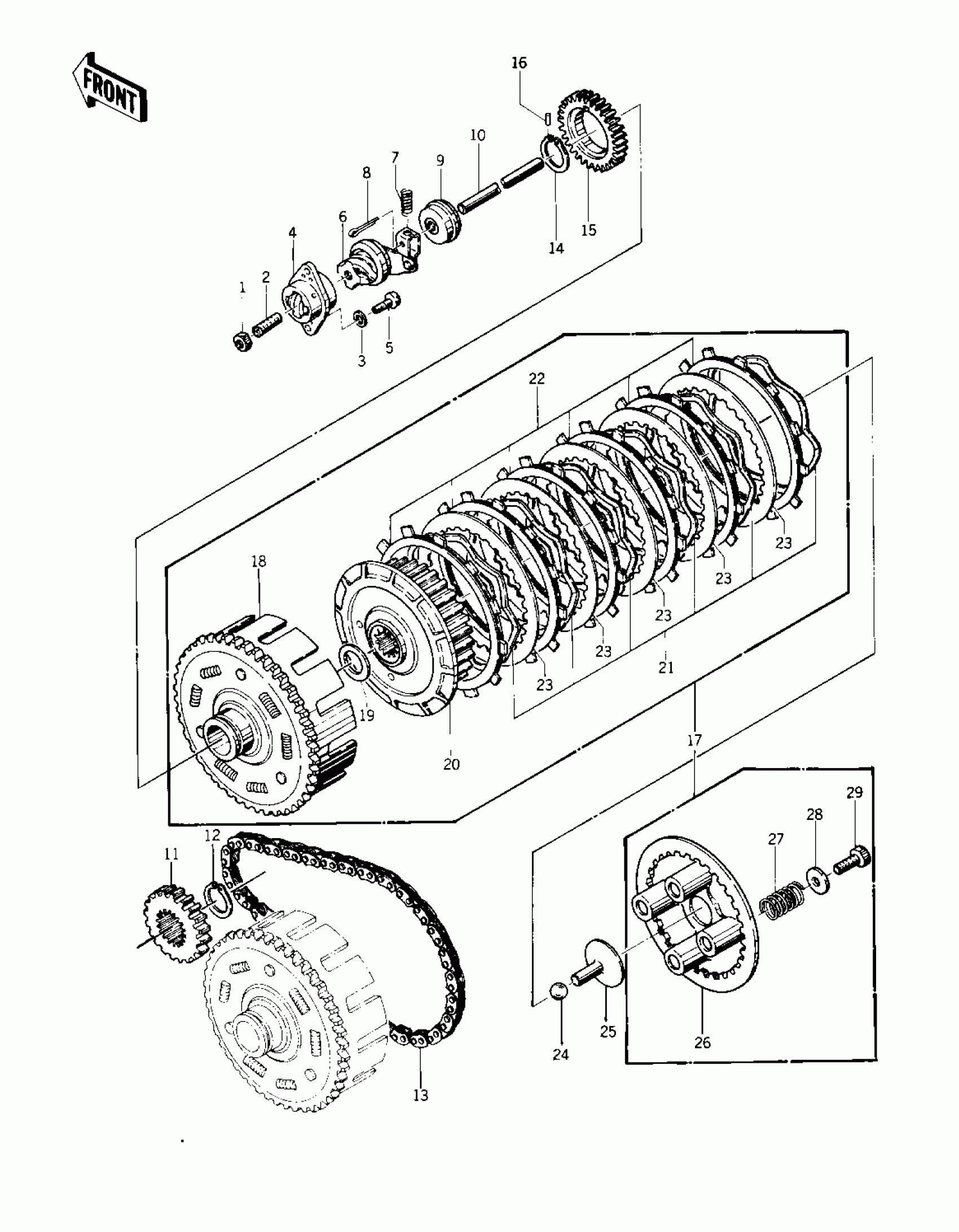

1977 Kawasaki Special Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NUT-HEX-SMALL,8MM

318B0800

1
Out of stock

2

SCREW,SLOTTED,8X25

92014-014

1
Out of stock

3

WASHER PLAIN 6MM

411B0600

1
Out of stock

4

OUTER,CLUTCH RELEASE

13118-007

1
Out of stock

5

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

6

INNER,CLUTCH RELEASE

13102-013

1
Out of stock

7

SPRING,CLUTCH RELEASE

92081-069

1
Out of stock

8

PIN-COTTER,1.6X15

550D1615

1
Out of stock

9

OIL SEAL,PUSH ROD

92050-068

1
Out of stock

9

OIL SEAL,PUSH ROD

92049-1041

—
Out of stock

10

ROD,PUSH,CLUTCH

13116-1017

1
Out of stock

10

ROD,PUSH,CLUTCH

13116-1017

1
Out of stock

11

SPROCKET,PRIMARY

13121-030

1
Out of stock

12

CIRCLIP-TYPE-C,30MM

480J3000

1
Out of stock

13

CHAIN,PRIMARY DRIVE

13122-005

1
Out of stock

14

CIRCLIP, 38MM

480J3800

1
Out of stock

15

GEAR,OIL PUMP

16084-019

1
Out of stock

15

GEAR,OIL PUMP

16084-019

1
Out of stock

16

PIN, DOWELL, 6X6

610A0606

1
Out of stock

17

CLUTCH-ASSY

13081-074

1
Out of stock

18

HOUSING,CLUTCH

13095-045

1
Out of stock

19

WASHER,CLUTCH THRUST

92022-288

1
Out of stock

20

HUB,CLUTCH

13087-040

1
Out of stock

21

RING,CLUTCH STEEL

13229-005

1
Out of stock

22

PLATE,FRICTION

13088-1001

1
Out of stock

22

PLATE,FRICTION

13088-1001

1
Out of stock

23

PLATE-CLUTCH,T=2.0

13089-026

1
Out of stock

24

BALL-STEEL,3/8"

600A1200

1
Out of stock

25

PUSHER,CLTCH SPRG PLT

13116-029

1
Out of stock

26

PLATE,CLUTCH SPRING

13187-007

1
Out of stock

27

SPRING,CLUTCH

92081-1033

1
Out of stock

27

SPRING,CLUTCH

92081-1033

1
Out of stock

28

HOLDER,CLUTCH SPRING

13091-011

1
Out of stock

29

BOLT-UPSET

112G0618

1
Out of stock
