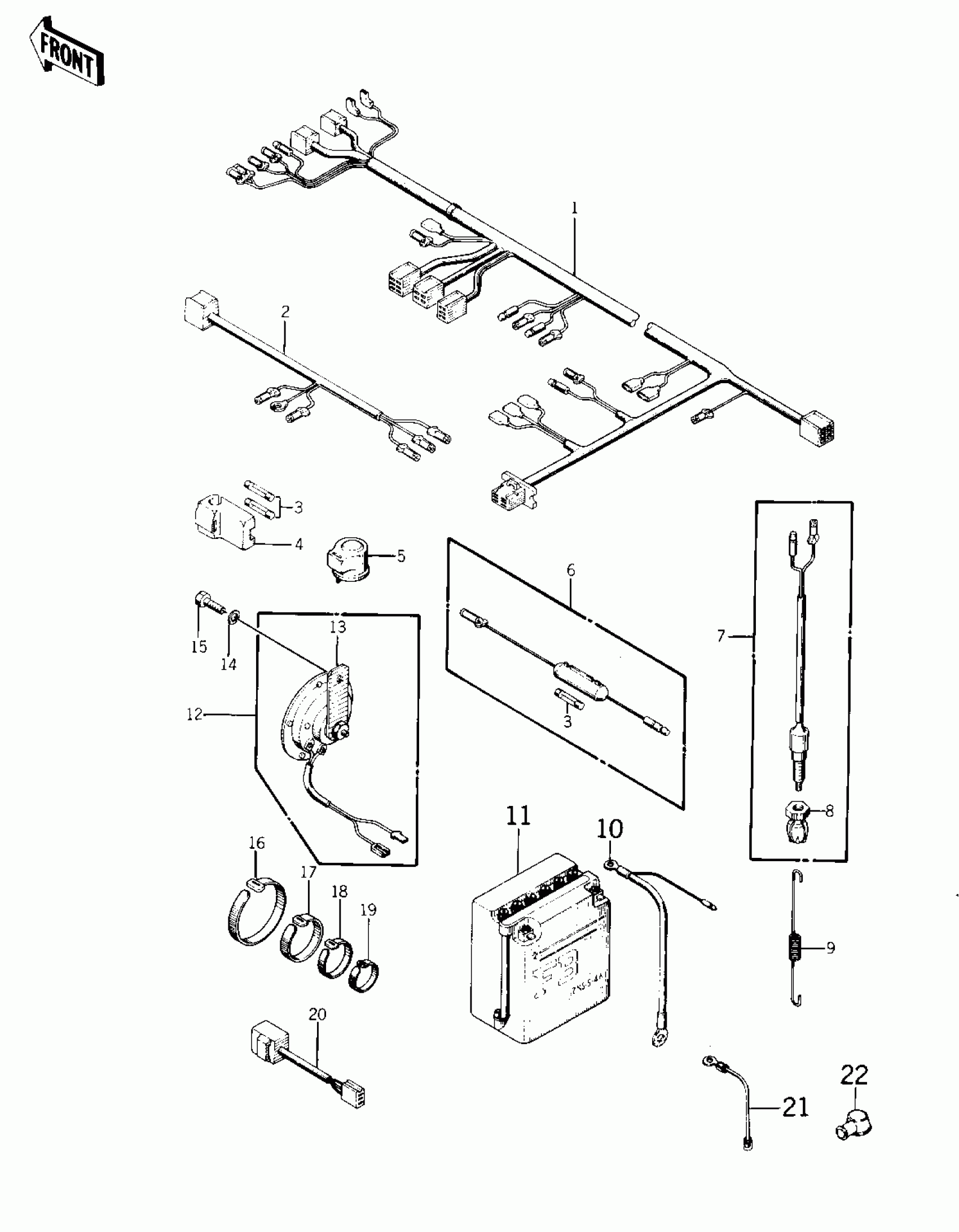

Kawasaki Special CHASSIS ELECTRICAL EQUIPMENT ('75 S) Diagram

#

Description
Price

1

WIRING HARNESS MAIN

26001-119

Unavailable

2

WIRING HARNESS REAR

26002-049

Unavailable

3

FUSE,20A,L=25

26006-005

$4.02

4

HOLDER,SPARE FUSE

26016-002

Unavailable

5

RELAY-ASSY,TURN SIGNAL

27002-011

Unavailable

6

FUSE ASSY 20A

26004-024

$20.66

7

SWITCH,BRAKE LAMP

27010-025

$27.60

8

NUT,BRAKE LAMP SWITCH

27037-001

$27.60

9

SPRING,BRAKE LIGHT SW

27011-015

$9.93

10

WIRE-BATTERY GROUND

26010-039

$11.90

11

FB BAT 12N5.5-4A

26012-022

$56.86

11

YUA BAT 12N5.5-4A

K26012-022

$56.86

12

HORN

27003-053

$211.74

13

BRACKET,HORN

27038-002

Unavailable

14

WASHER SPRING 8MM

461F0800

Unavailable

15

BOLT-SMALL-UPSET,8X14

115B0814

Unavailable

16

BAND,L=218

92072-032

$3.97

17

BAND,L=149

92072-031

$3.97

18

BAND,L=123

92072-030

$3.97

19

BAND,L=95

92072-067

Unavailable

20

SWITCH,BK LIGHT IND

28019-002

$68.10

21

WIRE-BATTERY LEAD

26010-038

$3.29

22

CAP BAT TERMINAL RUBB

92073-001

$12.80
