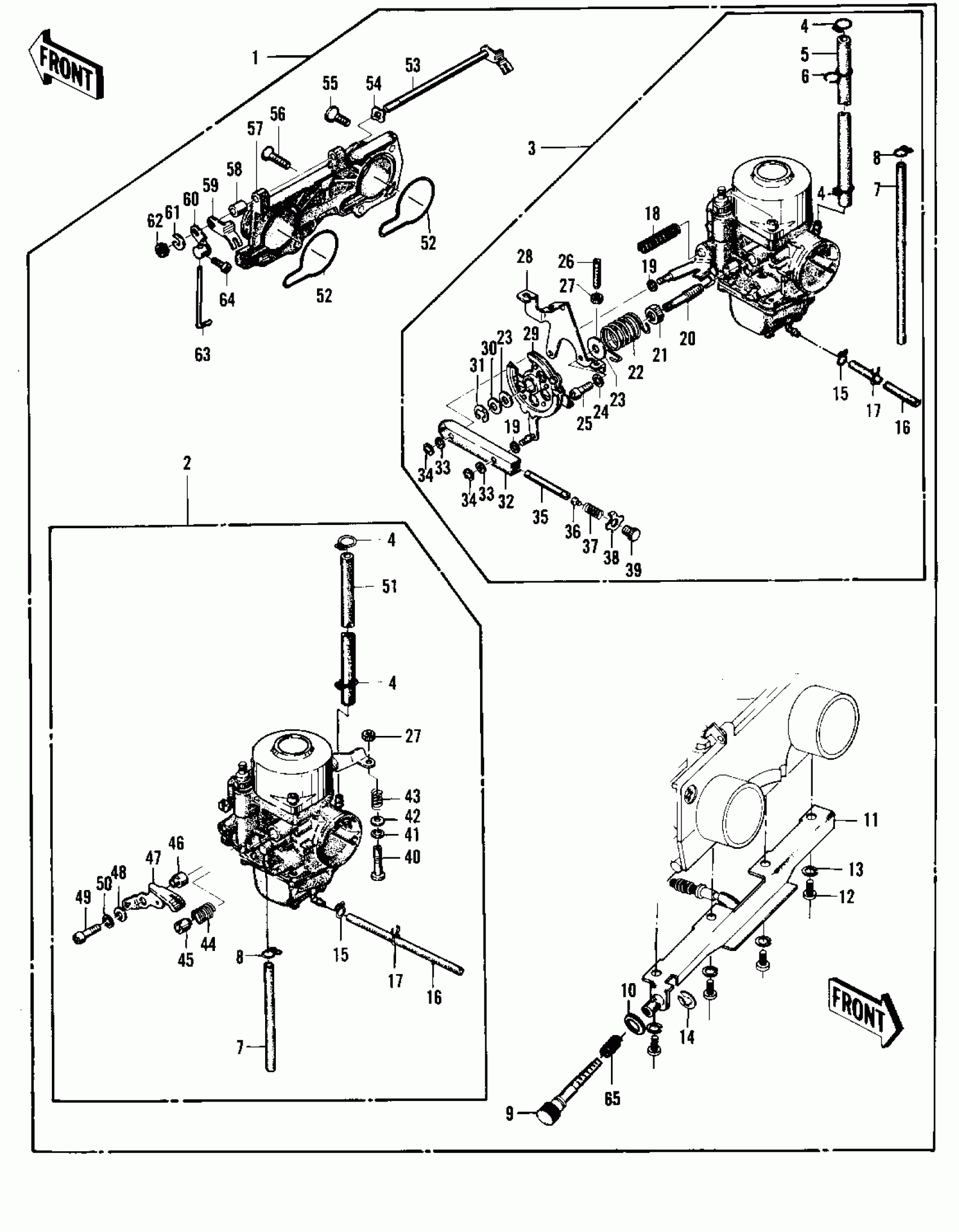

Kawasaki Special CARBURETOR ASSY (KZ400-S2) Diagram

#

Description
Price

1

CARBURETOR ASSY

16001-275

$552.22

2

CARBURETOR,R.H

16001-282

Unavailable

3

CARBURETOR,L.H

16001-283

Unavailable

4

CLAMP,FUEL HOSE

92037-1040

Unavailable

5

HOSE,FUEL

92059-112

Unavailable

6

CLAMP,FUEL HOSE

16044-005

$1.00

7

TUBE,4.5X8X380

92059-110

Unavailable

8

CLAMP,HOSE

16044-004

$0.51

9

SCREW,THROTTLE STOP

16021-024

$19.12

10

WASHER,PLAIN,7MM

16039-029

$1.58

11

STAY PLATE

16065-044

$18.25

12

SCREW PAN HEAD 4X6

220B0406

$1.21

13

WASHER SPRING 4MM

461F0400

Unavailable

14

CIRCLIP-TYPE-E,6MM

482J6000

$1.49

15

CLAMP,TUBE

92037-1142

$4.31

16

TUBE,3.5X6.5X330

92059-111

$22.10

17

CLAMP,OVERFLOW HOSE

16044-002

Unavailable

18

SPRING,THR CABLE PLY

16040-013

$3.29

19

WASHER,WAVE

16034-009

$1.56

20

SCREW,BALANCE ADJUST

16041-008

$13.08

21

NUT,5MM

16003-010

$1.61

22

SPRING,ADJUST

16040-011

$8.31

23

WASHER,PLAIN

16039-023

$1.19

24

WASHER SPRING 5MM

461F0500

Unavailable

25

SCREW PAN HEAD 5X10

220B0510

Unavailable

26

SCREW,SLOTTED

16046-006

$2.71

27

NUT,5MM

16003-011

$1.73

28

HOLDER,THR CABL PULY

16070-002

$19.71

29

PULLEY,THROTTLE CABL

16074-003

$28.32

30

WASHER,PLAIN,8MM

16039-024

$1.22

31

CIRCLIP-TYPE-E,6MM

482J6000

$1.49

32

LINK,ADJUSTER

16071-002

$27.90

33

WASHER,PLAIN,3MM

16039-030

$2.02

34

CIRCLIP

16008-013

$1.56

35

ROD CABLE ADJUSTING

16002-015

$5.80

36

PLUG,CABLE ADJST ROD

16042-007

$1.93

37

SPRING,CABLE ADJUST

16040-012

$1.85

38

WASHER,LOCK,7MM

16054-006

$1.39

39

BOLT,HEX HEAD,7MM

16067-007

$3.64

40

SCREW,THROTTLE STOP

16021-030

$6.97

40

SCREW,THROTTLE STOP

16021-031

$5.63

41

WASHER,PLAIN,5MM

16039-025

$2.36

41

WASHER,PLAIN

16039-045

$2.61

42

WASHER,PLAIN,5MM

16039-026

$1.19

42

WASHER,PLAIN

16039-027

Unavailable

43

SPRING,THR STOP SCREW

16022-012

$1.68

43

SPRING,THR STOP SCREW

16022-014

$1.56

44

SPRING,CHOKE LEVER

16040-014

Unavailable

45

CONTACT,CHOKE LEVER

16147-002

Unavailable

46

COLLAR,CHOKE LEVER

16073-010

Unavailable

47

LEVER,CHOKE

16063-006

Unavailable

48

WASHER,PLAIN

16039-027

Unavailable

49

SCREW-PAN-CROS

220B0520

$0.56

50

WASHER SPRING 5MM

461F0500

Unavailable

51

HOSE,FUEL

92059-113

$10.34

52

"O" RING,CARB MOUNT

16038-015

Unavailable

52

"O" RING,CARB MOUNT

16038-023

Unavailable

53

SHAFT,THROTTLE VALVE

16041-019

$13.08

54

WASHER,WAVE

16034-010

$1.39

55

SCREW-PAN-CROS,6X16

220B0616

Unavailable

56

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.36

57

PLATE,CARB MOUNTING

16070-003

$53.78

58

COLLAR,CHOKE LEV SHFT

16073-011

$1.56

59

LEVER,THROTTLE VALVE

16063-011

$6.20

60

LEVER,THROTTLE VALVE

16063-008

Unavailable

61

WASHER,LOCK,6MM

16054-007

Unavailable

62

NUT,6MM

16003-012

Unavailable

63

ROD

16024-013

Unavailable

64

SCREW PAN HEAD 3X5

220B0305A

$0.48

65

SPRING,THR STOP SCREW

16022-011

$6.53
