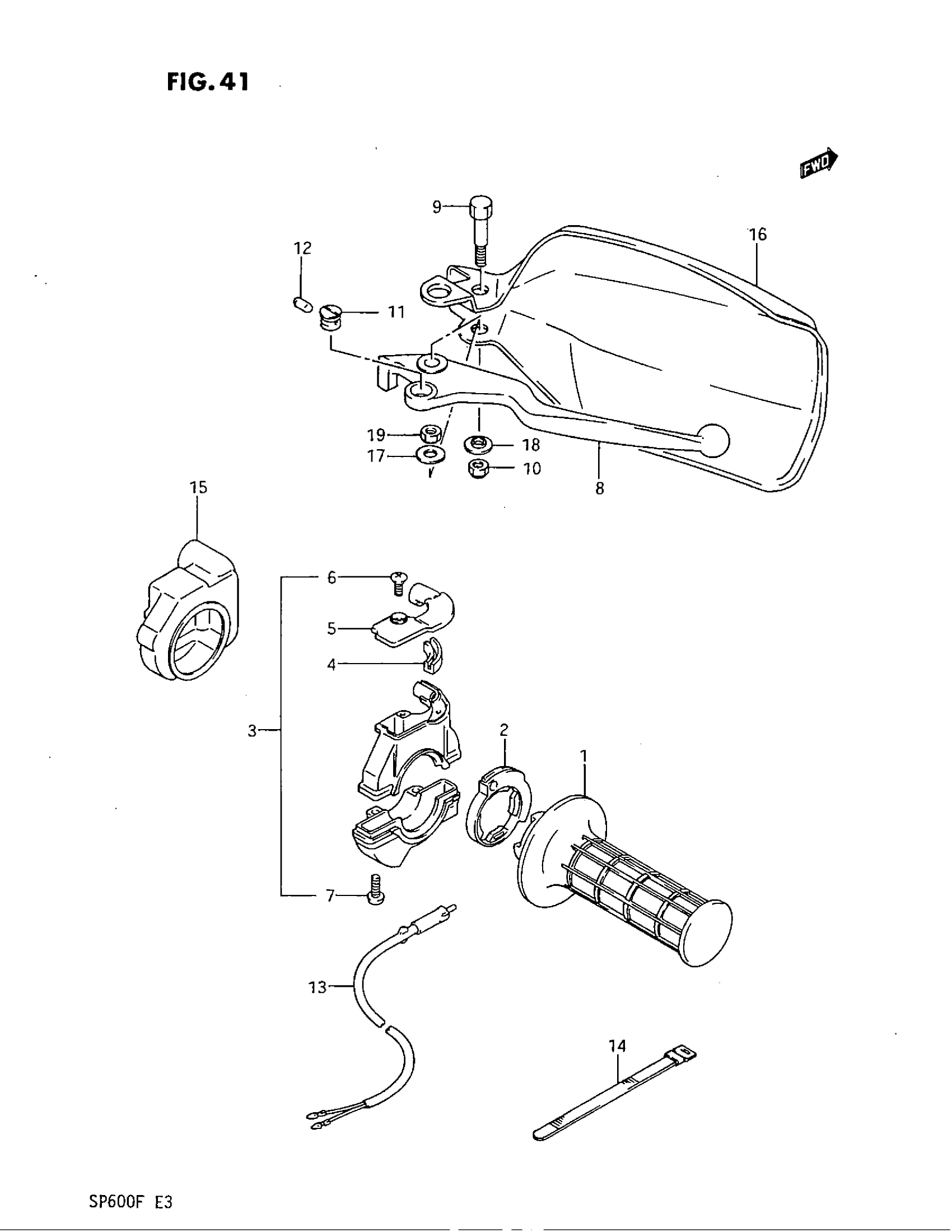

Suzuki SP600 (1985) RIGHT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, THROTTLE This part replaces 57110-14300.

57110-27C00

$24.14

2

ROTOR

57114-20410

$6.80

3

CASE ASSY, THROTTLE | Includes Item(s) 4 - 7

57100-20411

Unavailable

4

PIECE

57122-20410

$7.22

5

COVER

57129-20411

$13.50

6

SCREW This part replaces 02132-04068.

02122-0410A

$1.22

7

SCREW This part replaces 02112-05168.

02112-05167

$1.97

8

LEVER, BRAKE

57421-13A10

Unavailable

9

BOLT

57431-14A00

$8.97

10

.NUT This part replaces 08319-21065.

08319-2106B

$2.31

11

ADJUSTER

57443-13A00

Unavailable

12

ROD, PUSH

57444-13A00

Unavailable

13

SWITCH ASSY, STOP This part replaces 57460-13000.

57460-13001

$33.02

14

CLAMP (L:120)

09407-12402

$2.80

15

COVER, THROTTLE CASE

57129-14501

Unavailable

16

GUARD SET,KNUCK This part replaces 57341-14A00-14C.

57300-14851-14C

Unavailable

17

WASHER

09160-06019

$1.38

18

WASHER

09169-06033

$1.57

19

.NUT This part replaces 08319-21068.

08319-2106A

$1.89
