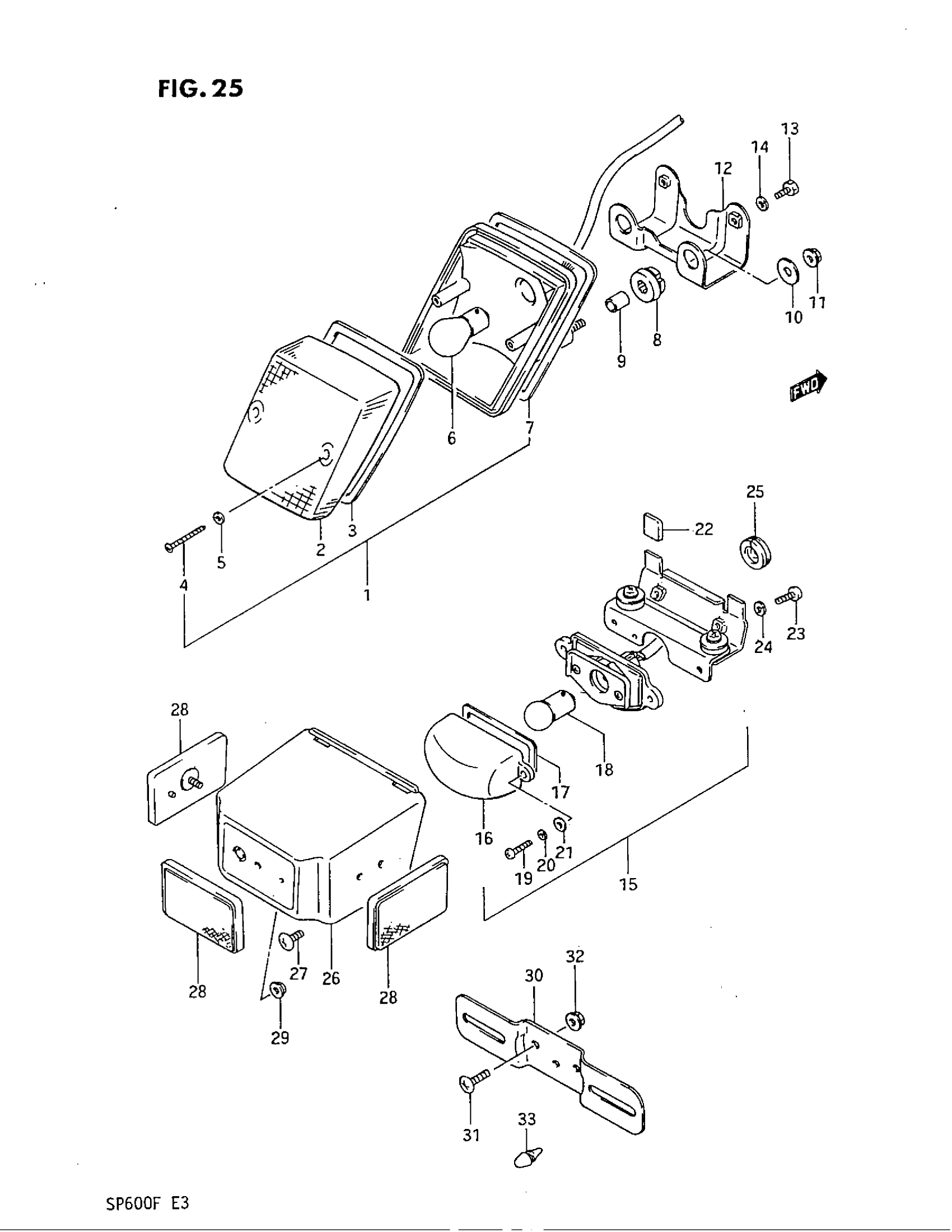

Suzuki SP600 (1985) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, RR C | Includes Item(s) 2 - 7 This part replaces 35710-14A30.

35710-28A20-999

Unavailable

2

LENS

35712-14A00

Unavailable

3

GASKET This part replaces 35713-14A00.

35713-31D00

$10.62

4

SCREW This part replaces 03211-04258.

03211-0425B

$2.95

5

GASKET

35627-43010

$2.29

6

BULB (12V,23/8W)

09471-12084

Unavailable

7

GASKET

35733-14A00

Unavailable

8

CUSHION

09320-09018

$2.28

9

SPACER (6.5X10X10) This part replaces 09180-06030.

09180-06310

$1.92

10

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.89

11

NUT This part replaces 08310-11066.

08310-0006A

$1.83

12

BRACKET, TAIL LAMP

35726-14A00

Unavailable

13

BOLT This part replaces 01107-06126.

01500-0612A

$1.80

14

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.83

15

LAMP ASSY, LICENSE | Includes Item(s) 16 - 22

35910-14A00

Unavailable

16

LENS

35912-00A10

Unavailable

17

GASKET

35913-04A00

Unavailable

18

BULB (12V, BW) This part replaces 09471-12037.

09471-12141

Unavailable

19

SCREW This part replaces 02112-04168.

02112-0416A

$1.24

20

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.86

21

WASHER This part replaces 08322-21048.

08322-01047

$1.88

22

CAP

35936-14A00

Unavailable

23

SCREW This part replaces 02112-06206.

02112-0620A

$1.45

24

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.83

25

GROMMET

09308-07011

$2.64

26

COVER, LICENSE LAMP

35917-14A30

Unavailable

27

SCREW This part replaces 02142-05165.

02142-0516A

$1.43

28

REFLEX REFLECTOR, REAR

35970-17300

Unavailable

29

NUT This part replaces 08316-26055.

08316-2005A

$2.21

30

BRACKET, LICENSE PLATE

35927-44430

Unavailable

31

SCREW This part replaces 02142-06165.

02142-0616A

$1.37

32

NUT This part replaces 08316-16066.

08316-1006B

$2.50

33

CUSHION

09321-06023

$2.72
