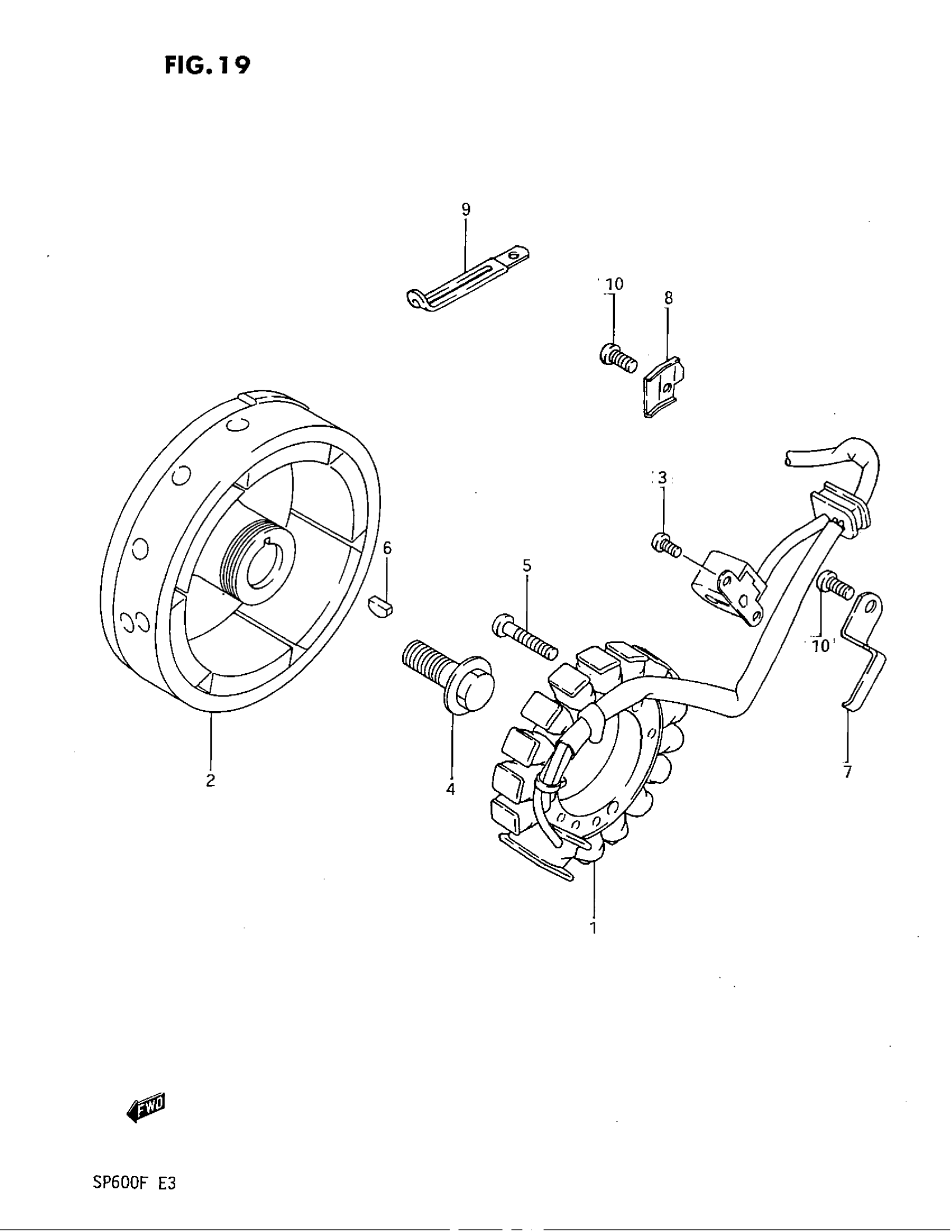

Suzuki SP600 (1985) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY

32101-14A00

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 32102-14A00.

32102-14A10

Unavailable

3

SCREW This part replaces 02112-05126.

02112-0512A

$1.49

4

BOLT

09103-14001

$12.85

5

SCREW, SEAT SUPPORT BRK This part replaces 02112-06306.

02112-0630A

$1.86

6

KEY This part replaces 08341-31049.

09420-04008

$3.18

7

CLAMP (A)

32371-37400

Unavailable

8

CLAMP (B)

32371-37410

Unavailable

9

CLAMP This part replaces 09404-06412.

09404-06039

$1.79

10

SCREW This part replaces 02112-06106.

02112-0610B

$1.89
