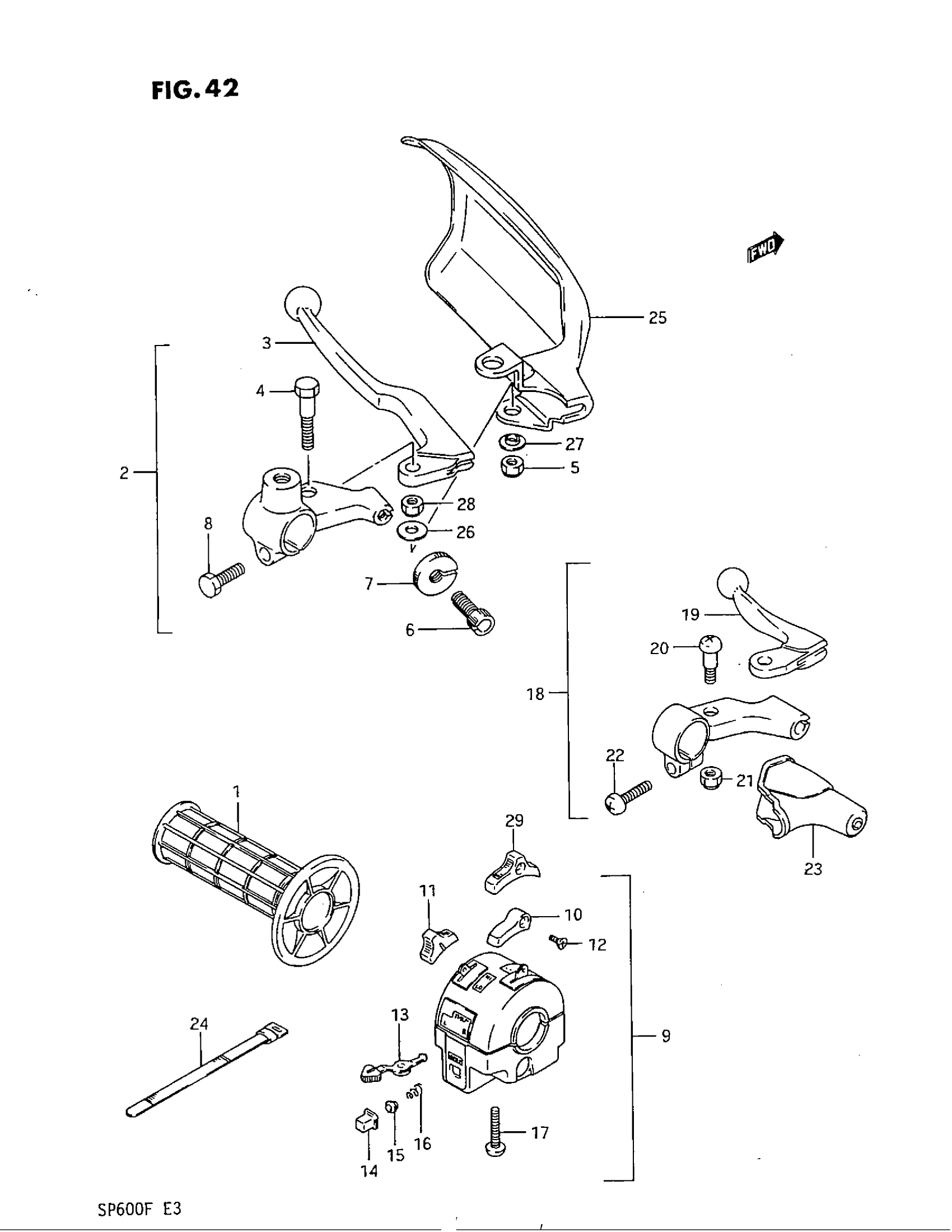

Suzuki SP600 (1985) LEFT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP LH This part replaces 57211-40201.

57211-27C00

$11.25

2

LEVER ASSY, CLUTCH | Includes Item(s) 3 - 8

57500-14A00

Unavailable

3

LEVER, CLUTCH

57620-49101

Unavailable

4

BOLT

57431-14A00

$8.97

5

.NUT This part replaces 08319-21065.

08319-2106B

$2.31

6

ADJUSTER

57441-44400

$5.91

7

NUT This part replaces 57442-44400.

57442-11010

$2.80

8

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

$1.77

9

SWITCH ASSY, HANDLE, LH | Includes Item(s) 10 - 17

37400-14A30

Unavailable

10

KNOB

37414-45602

Unavailable

11

KNOB, DIMMER

37421-45012

$6.95

12

SCREW This part replaces 02112-03068.

02112-0306B

$1.61

13

KNOB, TURN SIGNAL

37513-45011

$8.15

14

BUTTON, HORN

57371-45000

$5.10

15

CONTACT

57372-45000

$5.02

16

SPRING

57382-45000

$3.80

17

SCREW This part replaces 02112-05258.

02112-05257

$1.49

18

LEVER ASSY,DECO | Includes Item(s) 19 - 22 This part replaces 58700-38200.

58700-38210

$170.18

19

LEVER

58731-38200

$55.78

20

SCREW This part replaces 57431-01011.

57431-01012

$4.93

21

NUT

57633-38200

Unavailable

22

SCREW This part replaces 02112-06208.

02112-06207

$1.77

23

COVER

57342-37101

Unavailable

24

CLAMP (L:120)

09407-12402

$2.80

25

GUARD, KNUCKLE, LH (RED)

57541-14A00-14C

Unavailable

26

WASHER

09160-06019

$1.38

27

WASHER

09169-06033

$1.57

28

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

29

KNOB, LIGHTING | OPT

37411-45012

$4.93
