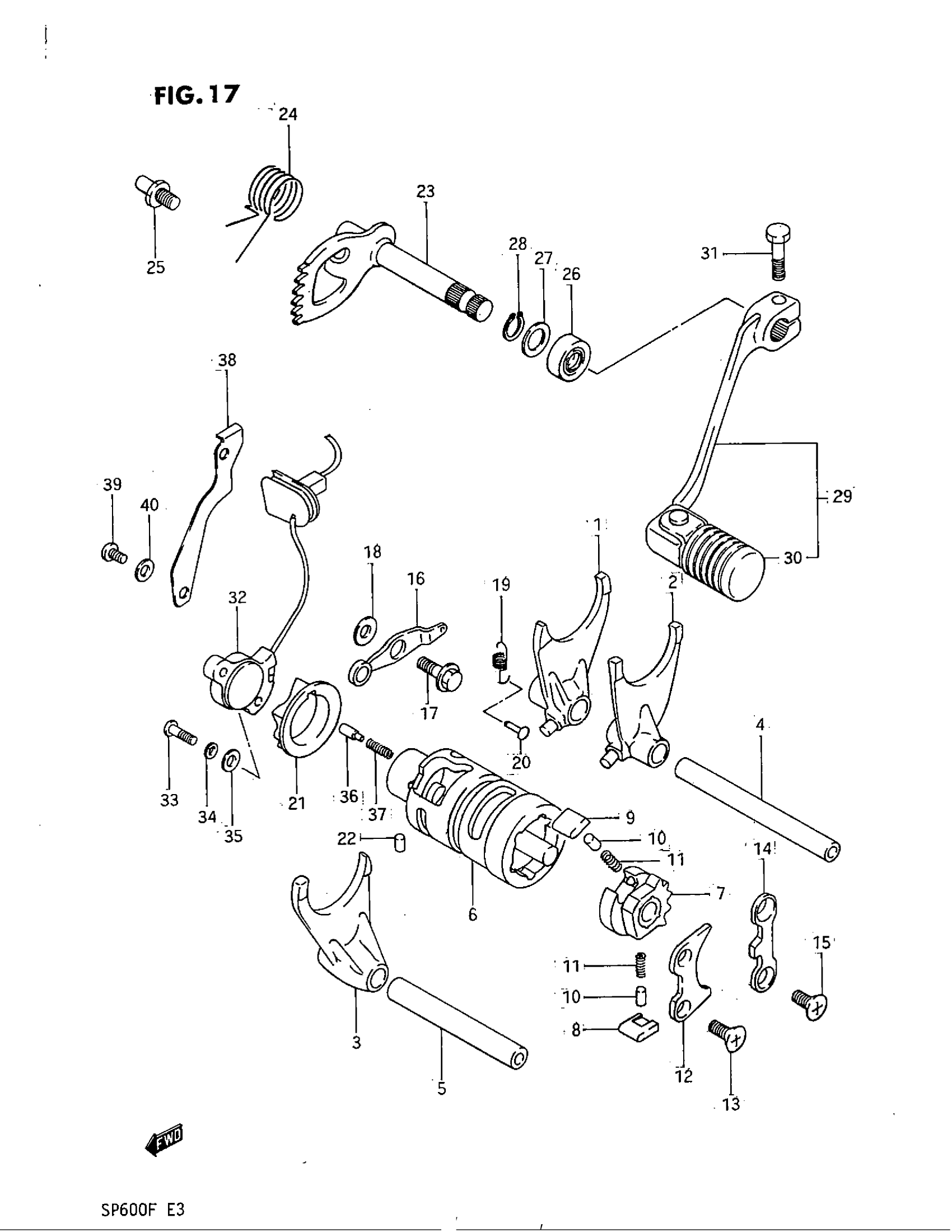

Suzuki SP600 (1985) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO,1 This part replaces 25211-37400.

25211-37401

$101.80

2

FORK,GEAR SHIFT,NO,2 This part replaces 25221-37400.

25221-37401

$101.80

3

FORK,GEAR SHIFT,NO.3 This part replaces 25231-14A00.

25231-14A01

$95.37

4

SHAFT, FORK NO.1 This part replaces 25411-14500.

25411-20A11

Unavailable

5

SHAFT, FORK NO.2 This part replaces 25421-14A00.

25421-14A02

$26.03

6

CAM, GEAR SHIFTING

25310-37400

$151.90

7

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

$30.40

8

PAWL, GEAR SHIFT NO.1 This part replaces 25323-34200.

25323-34201

$6.61

9

PAWL, GEAR SHIFT NO.2 This part replaces 25324-34200.

25324-34201

$6.80

10

PIN

09261-05003

$1.69

11

SPRING

09440-04003

$1.48

12

LIFTER,GEAR SHIFT POLE

25331-14A00

$10.15

13

SCREW This part replaces 02122-06128.

02122-06127

$1.83

14

GUIDE, CAM

25341-40001

$13.73

15

SCREW This part replaces 02122-06128.

02122-06127

$1.83

16

STOPPER

25350-37400

$17.40

17

BOLT This part replaces 09111-06019.

09111-06054

$4.02

18

WASHER

08211-06141

$1.61

19

SPRING

09443-08040

Unavailable

20

PIN This part replaces 09220-04001.

09223-04001

$1.83

21

PLATE,GEAR SHIFT CAM STOPPER This part replaces 25381-37400.

25381-37401

$23.45

22

PIN This part replaces 06211-04063.

04221-04069

$2.30

23

SHAFT,GEAR SHIFT | ~E.NO.104841 This part replaces 25510-14A01.

25510-32E00

$111.05

23

SHAFT,GEAR SHIFT | E.NO.104842~ This part replaces 25510-14A02.

25510-32E00

$111.05

24

SPRING This part replaces 09444-26012.

09444-26013

$2.84

25

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.09

26

OIL SEAL (12X22X9)

09285-12006

$5.70

27

WASHER

08212-12201

$1.87

28

CIRCLIP This part replaces 08331-31128.

08331-3112A

$1.77

29

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 30 This part replaces 25600-14A03.

25600-12D01

Unavailable

30

COVER

25652-14A00

Unavailable

31

BOLT, GEAR SHIFT LINK This part replaces 09100-06100.

01500-0620A

$1.77

32

BODY, GEAR SHIFTING SWITCH

37720-14A00

Unavailable

33

.SCREW This part replaces 02112-05166.

02112-0516A

$1.45

34

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.83

35

WASHER, FRONT This part replaces 08322-21056.

08322-0105A

$1.83

36

CONTACT

09209-05011

$2.02

37

SPRING

09440-04010

$1.52

38

CLAMP

37721-14A00

Unavailable

39

SCREW This part replaces 02112-06106.

02112-0610B

$1.83

40

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.83
