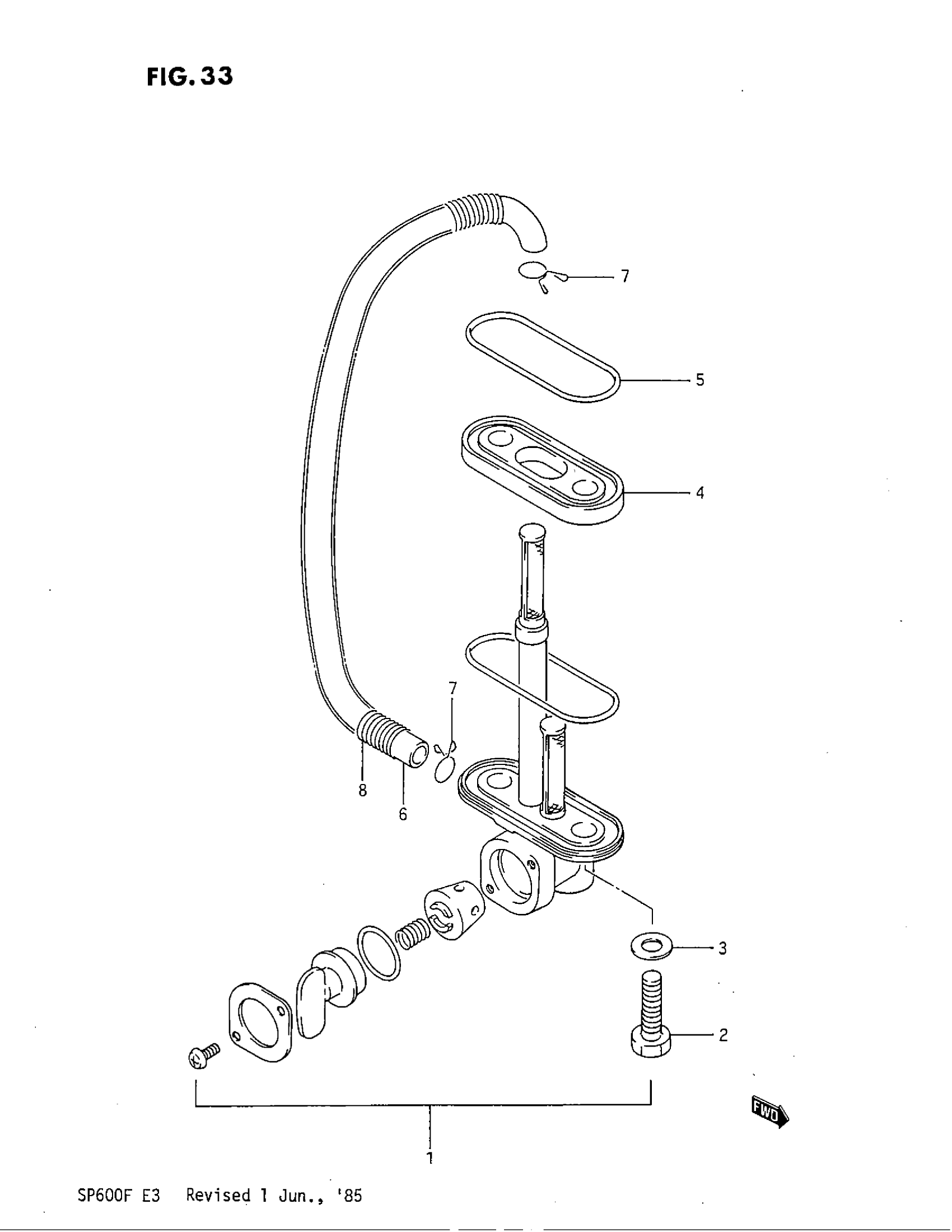

Suzuki SP600 (1985) FUEL COCK Diagram

#

Description

Price

1

COCK ASSY FUEL This part replaces 44300-14A00.

44300-14A01

$106.20

2

BOLT This part replaces 09128-06006.

09128-06057

$1.64

3

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

$2.01

4

SPACER, FUEL COCK

44365-14A00

$19.03

5

GASKET FUEL COCK This part replaces 44366-14A00.

44366-14A01

$2.80

6

HOSE(7X10.2X200 | OTHER THAN CALIFORNIACALIFORNIA ONLY This part replaces 09343-07073.

09352-70104-00B

$13.82

7

CLIP

09401-10402

$2.66

8

SPRING

09440-13012

Unavailable
