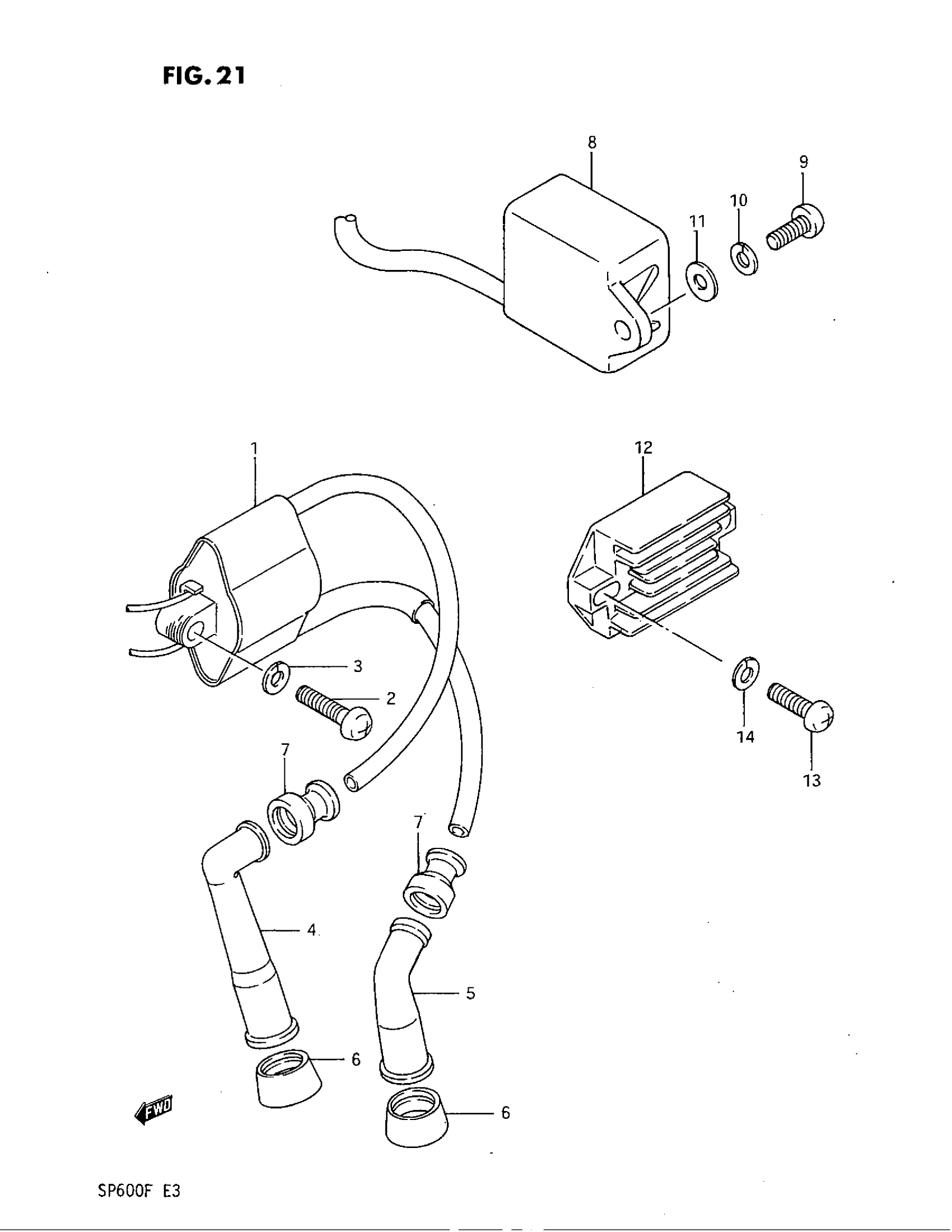

Suzuki SP600 (1985) ELECTRICAL Diagram

#

Description
Price

1

COIL ASSY,IGNIT This part replaces 33410-14A00.

33410-12D01

Unavailable

2

SCREW This part replaces 02112-06256.

02112-0625A

$1.79

3

.WASHER This part replaces 08322-21066.

08322-0106B

$2.24

4

CAP, SPARK PLUG INNER

33510-45010

$23.52

5

CAP, SPARK PLUG OUTER

33510-43010

$22.88

6

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.16

7

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$3.97

8

CDI UNIT

32900-14A00

Unavailable

9

SCREW This part replaces 02112-06166.

02112-0616A

$1.43

10

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.83

11

.WASHER This part replaces 08322-21066.

08322-0106B

$2.24

12

RECTIFIER ASSY This part replaces 32800-09300.

32800-09301

Unavailable

13

SCREW This part replaces 02112-06206.

02112-0620A

$1.45

14

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.83
