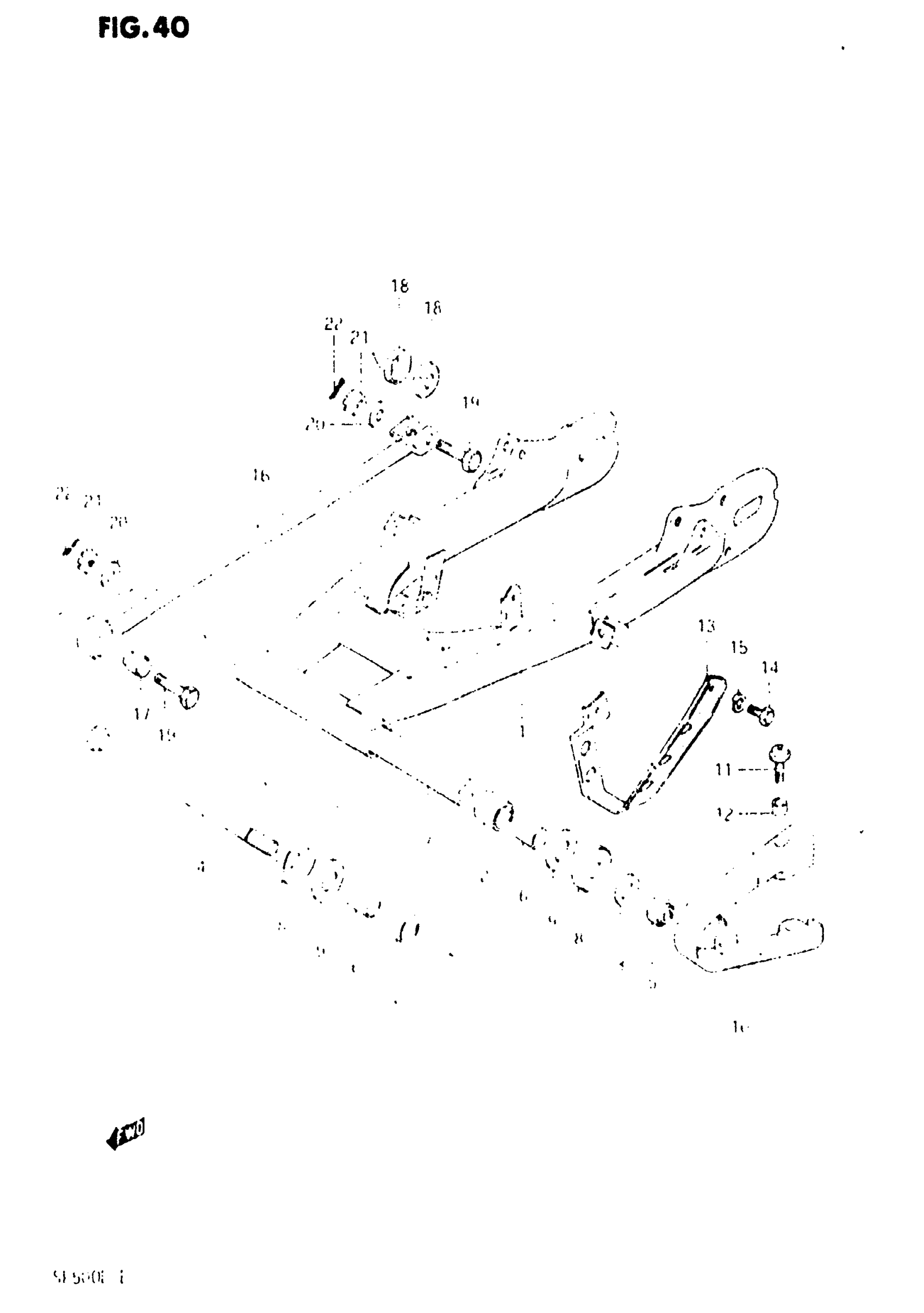

Suzuki SP500 (1983) REAR SWINGING ARM Diagram

#

Description
Price

1

REAR SWINGING ARM | GOLD; Includes Item(s) 2

61100-37860-08C

Unavailable

2

BEARING

09263-22022

$20.77

3

WASHER This part replaces 08322-11168.

08322-01167

$2.43

4

SHAFT, DIVOT

61211-37201

Unavailable

5

NUT This part replaces 08319-21168.

08319-2116A

$9.78

6

SPACER (16x22x22)

61251-32410

$16.03

7

SPACER (16.2x21.7x142)

09180-16018

Unavailable

8

COVER DUST SEAL This part replaces 61262-32410.

61262-32411

$10.97

9

WASHER

08211-16341

$3.05

10

BUFFER, CHAIN DEFENSE

61273-37410

Unavailable

11

SCREW

61275-37400

Unavailable

12

SPACER,5.5X8X4 This part replaces 09180-05015.

09180-05046

$2.72

13

GUIDE, CHAIN This part replaces 61341-30500.

61341-30501

Unavailable

14

BOLT This part replaces 01107-08128.

01500-08127

$2.64

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

16

TORQUE LINK, REAR | GOLD

64310-37411-08C

Unavailable

17

BUSHING

09319-08018

Unavailable

18

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

$6.62

19

BOLT

09101-08014

Unavailable

20

WASHER This part replaces 08322-11088.

08322-01087

$1.86

21

NUT This part replaces 08314-41088.

08314-4008B

$3.30

22

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22
