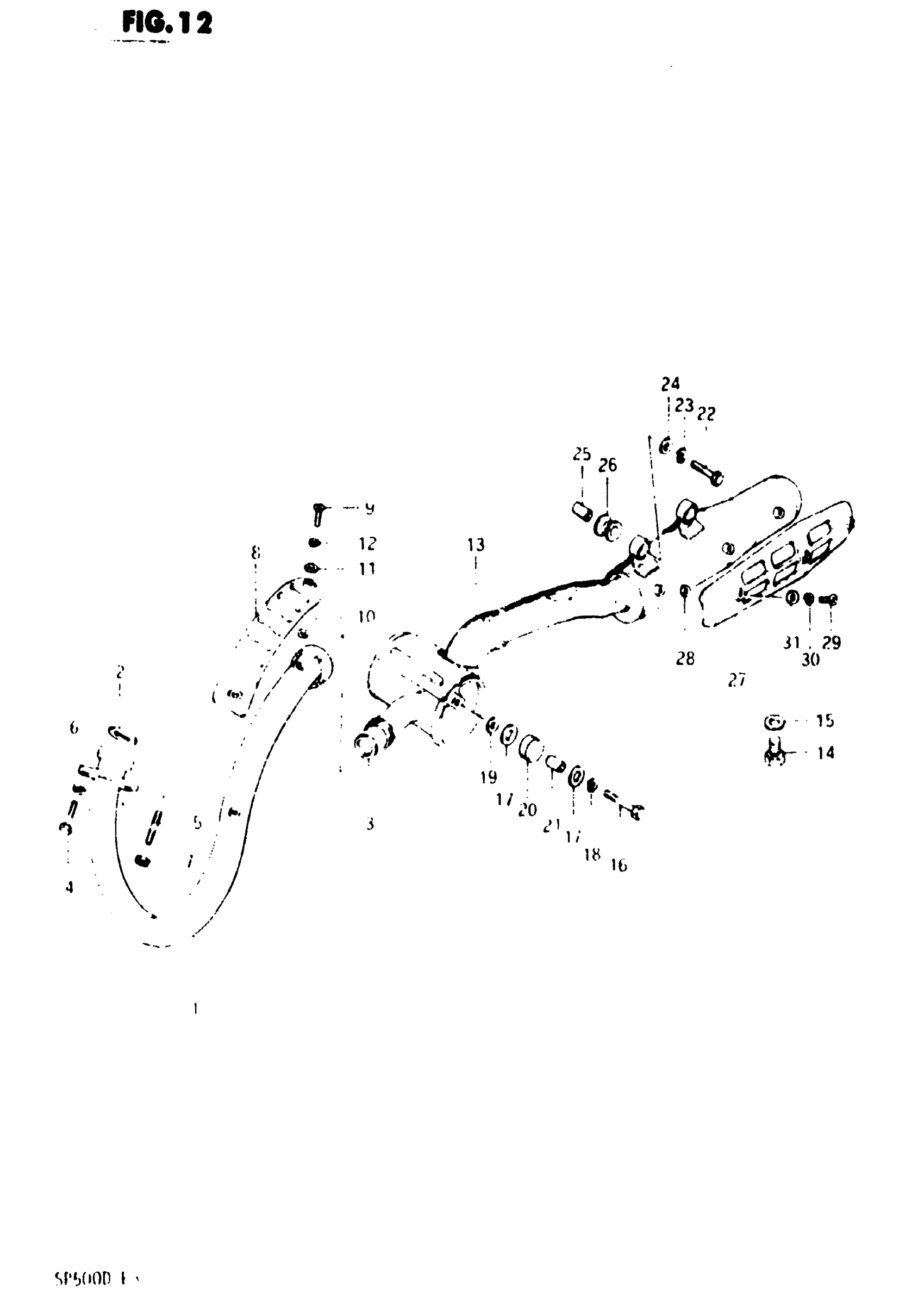

Suzuki SP500 (1983) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-37401

Unavailable

2

GASKET, EXHAUST PIPE This part replaces 14181-11020.

14181-01D00

$6.51

3

.GASKET,EXHAUST This part replaces 14181-05020.

14181-18C00

$6.61

4

BOLT This part replaces 01107-08255.

01500-0825A

$2.21

5

STUD BOLT This part replaces 01421-08205.

01421-0820A

$1.92

6

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.83

7

NUT This part replaces 08310-11085.

08310-0008A

$1.86

8

COVER

14186-37400

Unavailable

9

SCREW This part replaces 02112-06125.

02112-0612A

$1.43

10

GASKET,MUFFLER This part replaces 09168-06005.

09168-06105

$2.13

11

.WASHER This part replaces 08322-21065.

08322-0106B

$2.24

12

LOCK WASHER This part replaces 08321-21065.

08321-0106A

$1.83

13

NO DESCRIPTION AVAILABLE | Includes Item(s) 14 - 15 This part replaces 14301-37420.

14301-37441-H01

Unavailable

14

PLUG, DRAIN

09247-12103

$2.80

15

GASKET

09168-12003

$1.73

16

BOLT This part replaces 01107-08355.

01500-0835B

$2.80

17

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

$2.10

18

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.83

19

GASKET

09168-08010

Unavailable

20

CUSHION This part replaces 09320-14008.

09320-13007

$4.45

21

SPACER

09180-08076

Unavailable

22

BOLT This part replaces 01107-08405.

01500-0840A

$2.62

23

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.83

24

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

$2.10

25

SPACER This part replaces 09180-08102.

09180-08194

$2.80

26

CUSHION, EXHAUST SUPPORT This part replaces 09320-12026.

09320-12043

$7.20

27

COVER

14781-37410

Unavailable

28

GASKET,MUFFLER This part replaces 09168-06005.

09168-06105

$2.13

29

SCREW This part replaces 02112-06125.

02112-0612A

$1.43

30

LOCK WASHER This part replaces 08321-21065.

08321-0106A

$1.83

31

.WASHER This part replaces 08322-21065.

08322-0106B

$2.24
