1982 Suzuki SP500 Rear Swinging ARM Diagram

← All diagrams

Find the part on the Rear Swinging ARM diagram for your 1982 Suzuki SP500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

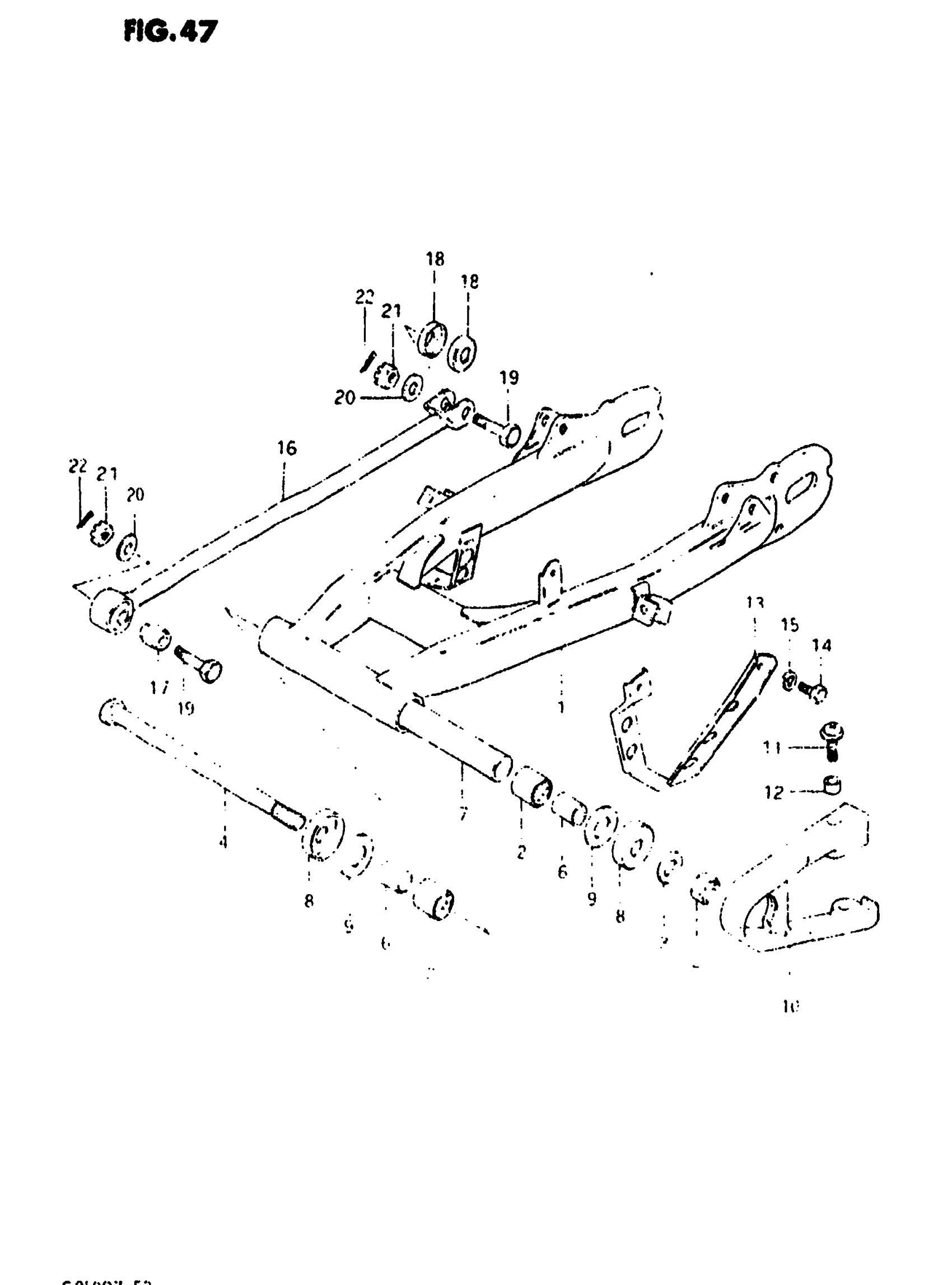

1982 Suzuki SP500 Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR SWINGING ARM | GOLD; Includes Item(s) 2

61100-37860-08C

1
Out of stock

2

BEARING

09263-22022

2

$22.40

In stock

3

1

$2.43

In stock

4

SHAFT, PIVOT

61211-37201

1
Out of stock

5

NUT This part replaces 08319-21168.

08319-2116A

1
Out of stock

6

SPACER (16x22x22)

61251-32410

2

$16.03

In stock

7

SPACER (16.2x21.7x142)

09180-16018

1
Out of stock

8

2

$10.97

In stock

9

WASHER

08211-16341

2

$3.05

In stock

10

BUFFER, CHAIN DEFENSE

61273-37410

1
Out of stock

11

SCREW

61275-37400

2
Out of stock

12

SPACER,5.5X8X4 This part replaces 09180-05015.

09180-05046

2
Out of stock

13

GUIDE, CHAIN This part replaces 61341-30500.

61341-30501

1
Out of stock

14

2

$2.85

In stock

15

2

$2.28

In stock

16

TORQUE LINK, REAR | GOLD This part replaces 64310-37410-08C.

64310-37411-08C

1
Out of stock

17

BUSHING

09319-08018

1
Out of stock

18

2

$7.21

In stock

19

BOLT | MODEL X

09101-08003

2
Out of stock

19

BOLT | MODEL Z

09101-08014

2
Out of stock

20

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

21

2

$3.30

In stock

22

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock
