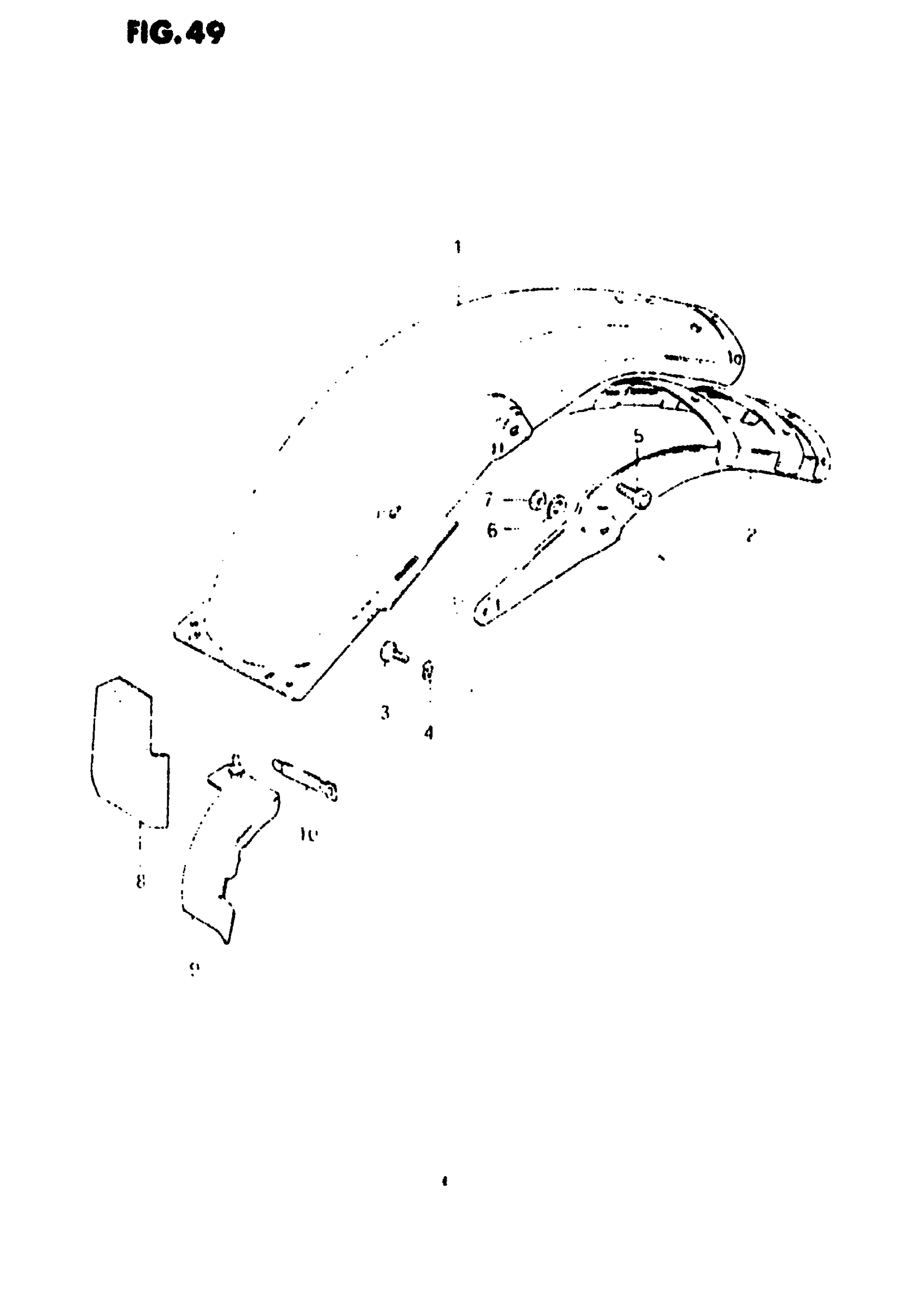

Suzuki SP500 (1982) REAR FENDER Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE This part replaces 63111-37401-07P.

63111-37402-737

Unavailable

2

REINFORCEMENT

63120-37200

Unavailable

3

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.64

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.89

5

BOLT This part replaces 01107-08308.

01500-08307

$2.82

6

WASHER This part replaces 08322-11088.

08322-01087

$1.92

7

NUT This part replaces 08310-12088.

08310-00087

$1.91

8

MUD FLAP RH

63411-37200

Unavailable

9

MUD FLAP LH

63411-37400

Unavailable

10

CLAMP This part replaces 09407-11301.

09407-18302

$2.27
