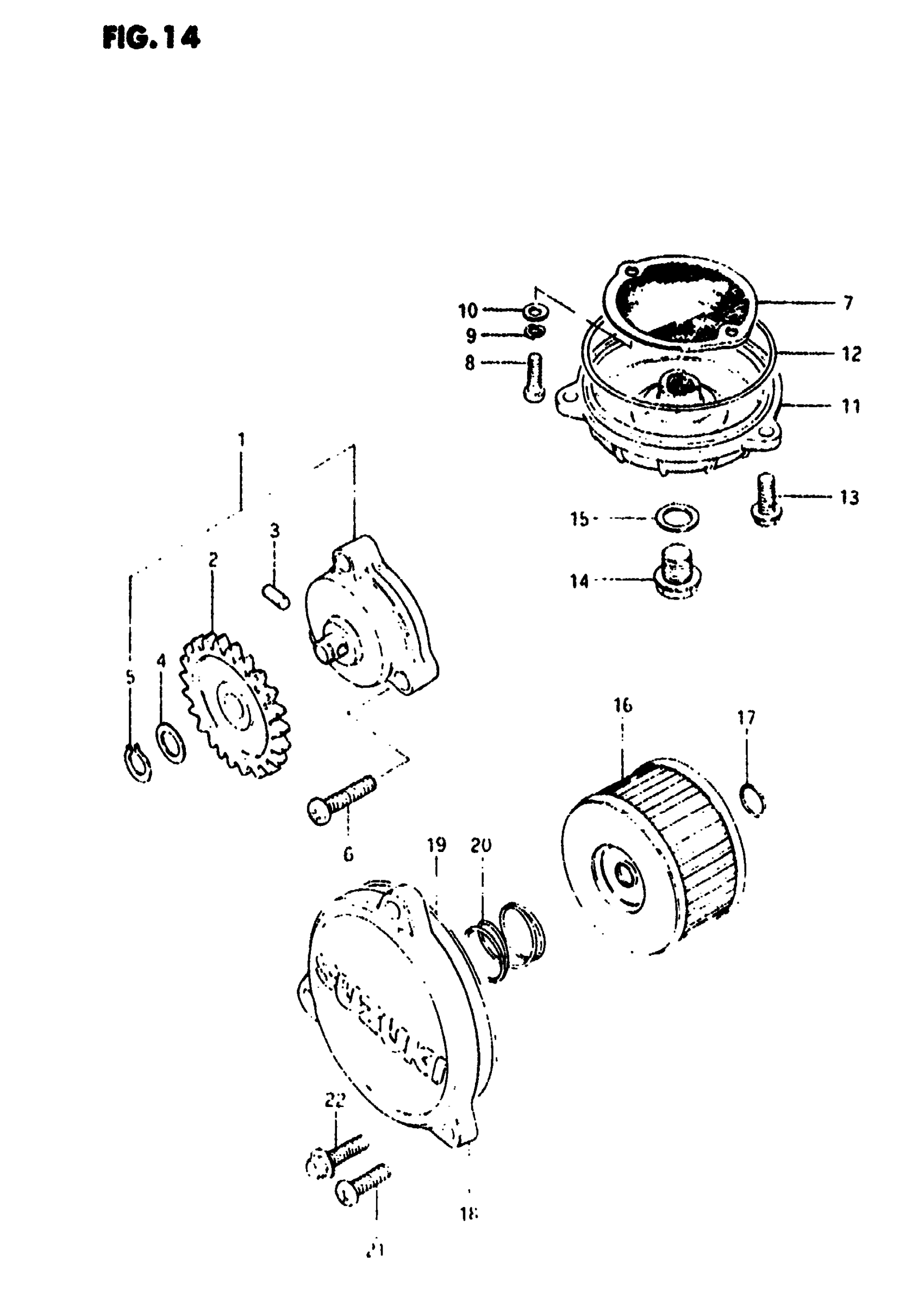

Suzuki SP500 (1982) OIL PUMP Diagram

#

Description
Price

1

PUMP, ENGINE OIL

16400-37400

Unavailable

2

GEAR, DRIVEN (NT:23)

16331-37400

Unavailable

3

PIN

09261-04009

$1.50

4

WASHER

08221-10185

$2.35

5

CIRCLIP

08331-31109

$1.77

6

SCREW This part replaces 02112-06258.

02112-06257

$1.68

7

STRAINER, ENGINE OIL

16520-37400

$9.17

8

SCREW This part replaces 02112-05108.

02112-05107

$1.43

9

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

10

WASHER This part replaces 08322-21058.

08322-01057

$1.86

11

CAP, OIL STRAINER This part replaces 16523-37400.

16523-37402

Unavailable

12

O RING

09280-82001

$4.66

13

BOLT This part replaces 01517-06208.

01550-06207

$2.31

14

PLUG This part replaces 09247-14012.

09247-14026

$3.38

15

GASKET

09168-14004

$1.69

16

FILTER, ENGINE OIL This part replaces 16510-37440.

16510-37450

$5.39

17

O RING

09280-16005

$2.24

18

CAP

16512-37400

Unavailable

19

.O RING (D:2.4,ID:73)

09280-72001

$4.47

20

SPRING

09440-21004

$2.99

21

SCREW This part replaces 02112-06165.

02112-0616A

$1.43

22

BOLT This part replaces 01547-06208.

01547-06207

$2.01
