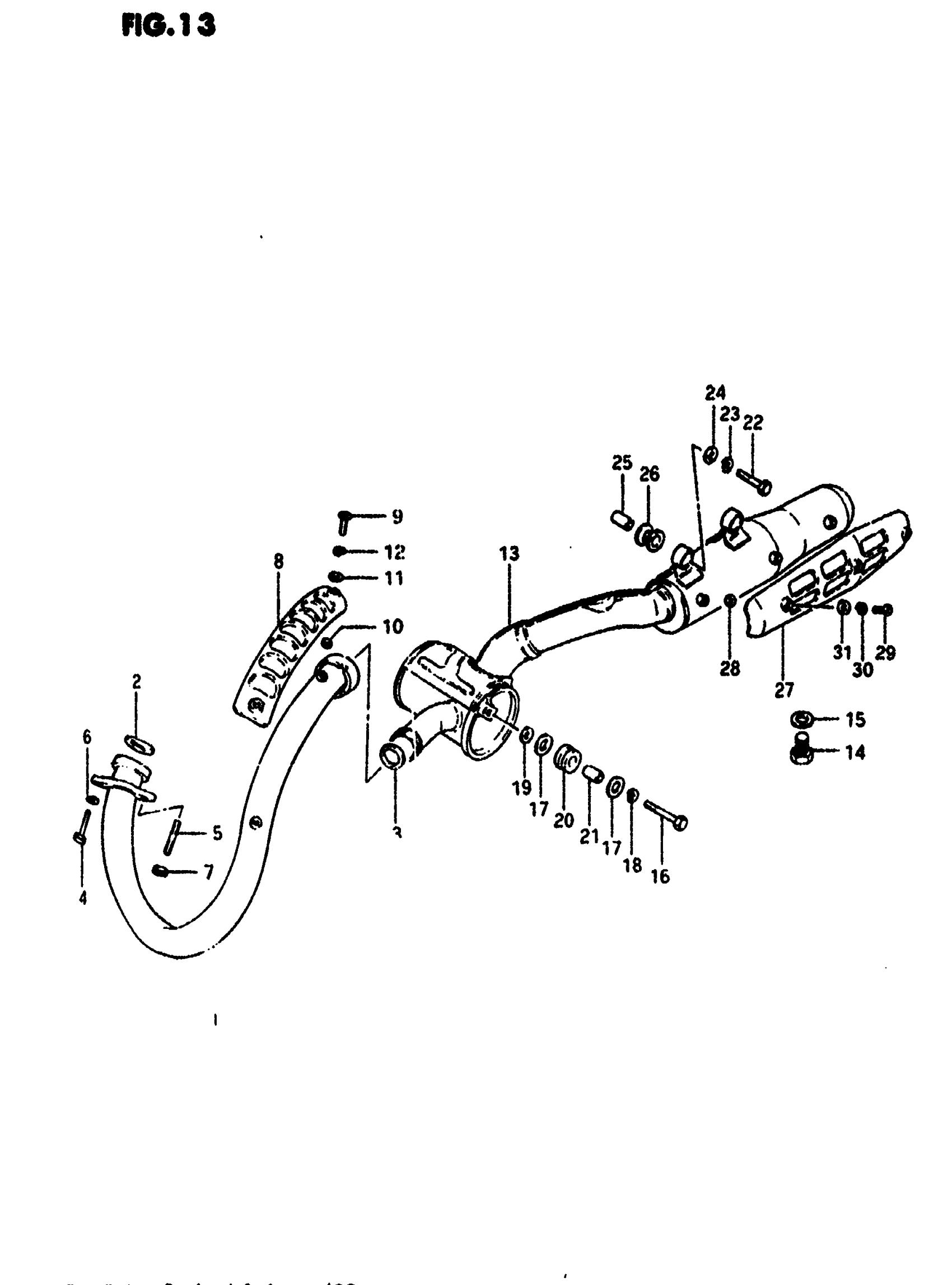

Suzuki SP500 (1982) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-37401

Unavailable

2

GASKET, EXHAUST PIPE This part replaces 14181-11020.

14181-01D00

$6.80

3

.GASKET,EXHAUST This part replaces 14181-05020.

14181-18C00

$6.91

4

BOLT This part replaces 01107-08258.

01500-08257

$2.62

5

STUD BOLT This part replaces 01421-08208.

01421-0820A

$1.99

6

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.89

7

NUT This part replaces 08310-12088.

08310-00087

$1.91

8

COVER

14186-37400

Unavailable

9

SCREW This part replaces 02112-06128.

02112-06127

$1.89

10

GASKET,MUFFLER This part replaces 09168-06005.

09168-06105

$2.21

11

WASHER This part replaces 08322-21068.

08322-01067

$1.93

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

13

NO DESCRIPTION AVAILABLE | Includes Item(s) 14 - 15 This part replaces 14301-37420.

14301-37441-H01

Unavailable

14

PLUG, DRAIN

09247-12103

$2.80

15

GASKET

09168-12003

$1.80

16

BOLT This part replaces 01107-08358.

01500-0835B

$2.82

17

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.17

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.89

19

GASKET

09168-08010

Unavailable

20

CUSHION This part replaces 09320-14008.

09320-13007

$4.45

21

SPACER

09180-08076

Unavailable

22

BOLT This part replaces 01107-08408.

01500-0840A

$2.73

23

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.89

24

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.17

25

SPACER This part replaces 09180-08101.

09180-08194

$2.90

26

CUSHION, EXHAUST SUPPORT This part replaces 09320-12026.

09320-12043

$7.42

27

COVER

14781-37410

Unavailable

28

GASKET,MUFFLER This part replaces 09168-06005.

09168-06105

$2.21

29

SCREW This part replaces 02112-06128.

02112-06127

$1.89

30

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

31

WASHER This part replaces 08322-21068.

08322-01067

$1.93
