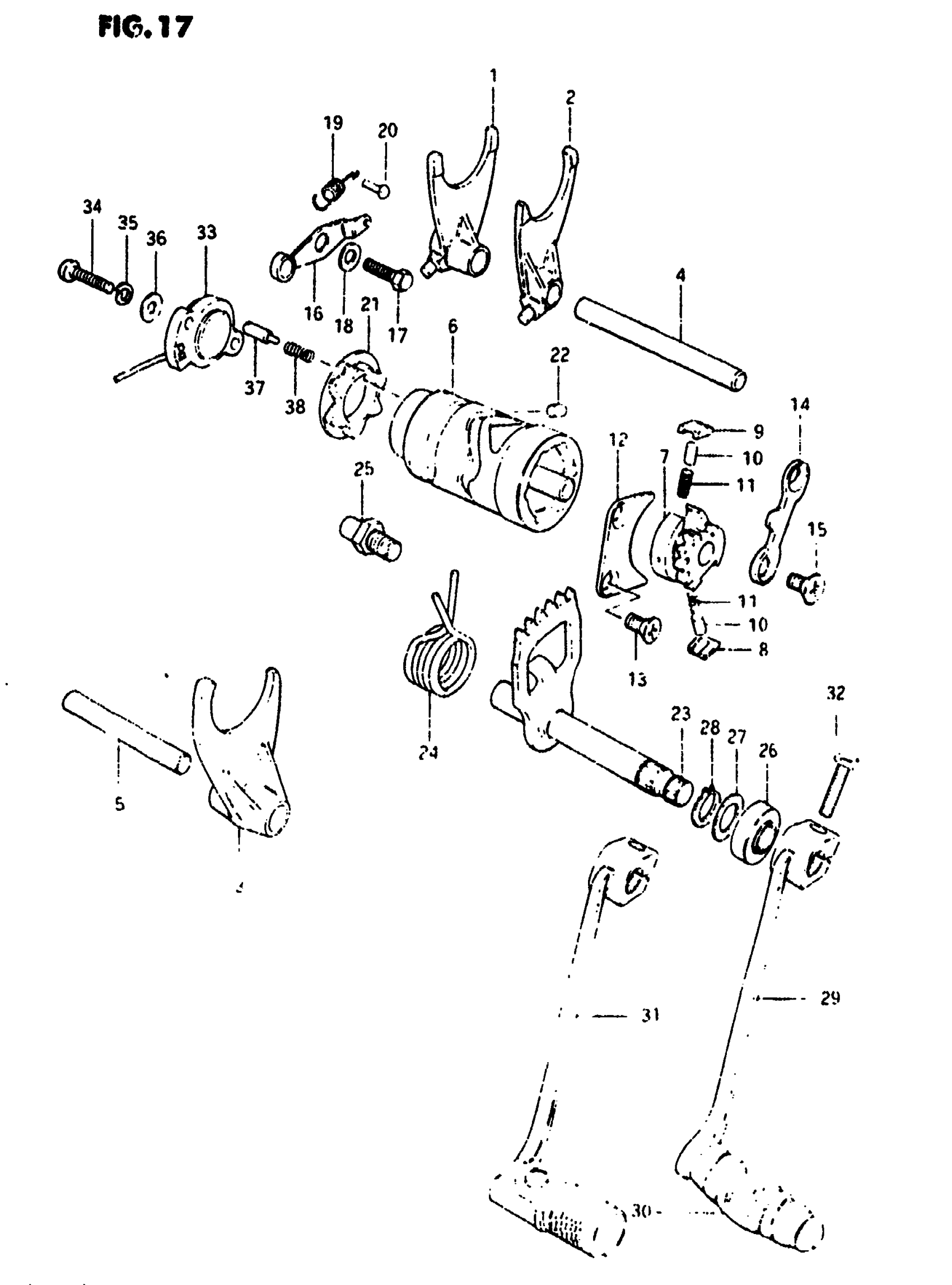

Suzuki SP500 (1982) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO,1 This part replaces 25211-37400.

25211-37401

$101.80

2

FORK,GEAR SHIFT,NO,2 This part replaces 25221-37400.

25221-37401

$101.80

3

FORK, GEAR SHIFTING (3)

25231-37400

Unavailable

4

SHAFT, FORK NO.1 This part replaces 25411-37410.

25411-20A11

Unavailable

5

SHAFT, FORK NO.2 This part replaces 25421-37400.

25421-14A02

$26.03

6

CAM, GEAR SHIFTING

25310-37400

$151.90

7

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-34200.

25322-31310

$30.40

8

PAWL, GEAR SHIFT NO.1 This part replaces 25323-34200.

25323-34201

$6.61

9

PAWL, GEAR SHIFT NO.2 This part replaces 25324-34200.

25324-34201

$6.80

10

PIN

09261-05003

$1.69

11

SPRING

09440-04003

$1.48

12

LIFTER, PAWL

25331-37400

Unavailable

13

SCREW This part replaces 02122-06128.

02122-06127

$1.83

14

GUIDE, CAM This part replaces 25341-40400.

25341-40001

$13.73

15

SCREW This part replaces 02122-06128.

02122-06127

$1.83

16

STOPPER

25350-37400

$17.40

17

BOLT This part replaces 09111-06019.

09111-06054

$4.02

18

WASHER

08211-06141

$1.61

19

SPRING

09443-08020

$3.17

20

PIN | INC. 11300-37400 & 11300-37410 This part replaces 09220-04001.

09223-04001

$1.83

21

PLATE,GEAR SHIFT CAM STOPPER This part replaces 25381-37400.

25381-37401

$23.45

22

PIN This part replaces 06211-04063.

04221-04069

$2.30

23

NO DESCRIPTION AVAILABLE This part replaces 25510-37400.

25510-37401

Unavailable

24

SPRING This part replaces 09444-26012.

09444-26013

$2.84

25

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.09

26

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$5.70

27

WASHER

08212-12201

$1.87

28

CIRCLIP This part replaces 08331-31128.

08331-3112A

$1.77

29

LEVER ASSY, GEAR SHIFTING | MODEL X; Includes Item(s) 30

25600-37400

Unavailable

30

.RUBBER,GEAR SHIFT PEDAL | MODEL X This part replaces 25652-16500.

25652-16510

$3.42

31

LEVER ASSY, GEAR SHIFTING | MODEL Z

25600-37410

Unavailable

32

BOLT This part replaces 09100-06091.

01500-06207

$1.99

33

BODY, GEAR SHIFTING SWITCH | MODEL X This part replaces 37720-37400.

37720-37403

Unavailable

33

BODY, GEAR SHIFTING SWITCH | MODEL Z This part replaces 37720-37401.

37720-37403

Unavailable

34

SCREW This part replaces 02112-05168.

02112-05167

$1.97

35

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

36

WASHER This part replaces 08322-21058.

08322-01057

$1.86

37

CONTACT

09209-05011

$2.02

38

SPRING

09440-04010

$1.52
