1980 Suzuki SP400 Seat - Frame Cover Diagram

← All diagrams

Find the part on the Seat - Frame Cover diagram for your 1980 Suzuki SP400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

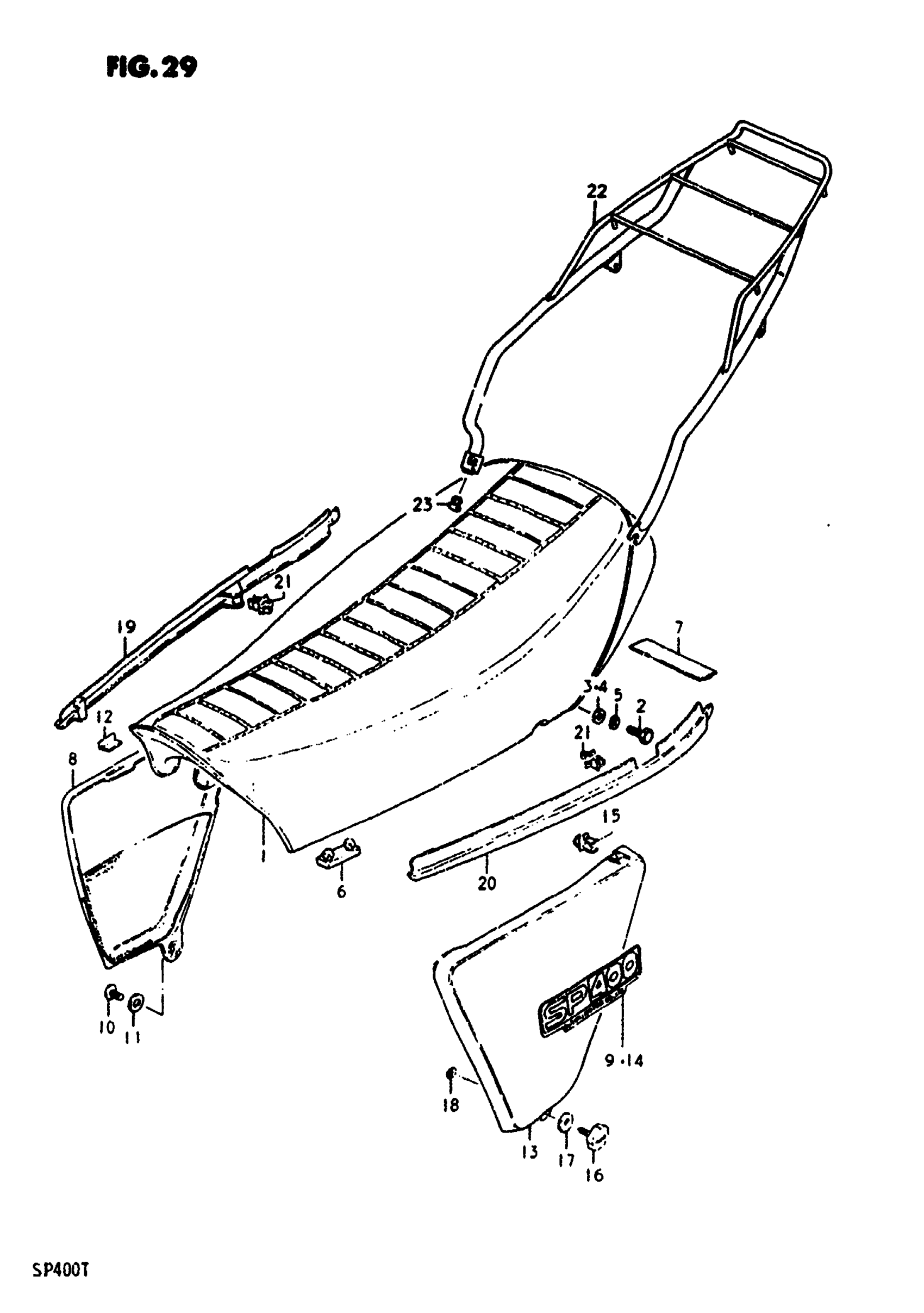

1980 Suzuki SP400 Seat - Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 45100-32500-865.

45100-32400-48F

1
Out of stock

2

3

$2.68

In stock

3

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

4

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

1
Out of stock

5

3

$2.28

In stock

6

CUSHION

09321-08009

5

$3.02

In stock

7

CUSHION

45299-41000

1
Out of stock

8

COVER, FRAME RH

47110-32401-291

1
Out of stock

9

EMBLEM, "SP400"

68131-37100

1
Out of stock

10

SCREW

02142-06167

1
Out of stock

11

1

$1.90

In stock

12

CUSHION, RH

47117-45000

2

$2.48

In stock

13

COVER,FRAME LH This part replaces 47211-32400-291.

47211-32400

1
Out of stock

14

EMBLEM, "SP400"

68131-37100

1
Out of stock

15

CLAMP

09403-07306

2

$2.92

In stock

16

KNOB, FRAME LH

47130-33101

1

$9.56

In stock

17

1

$2.25

In stock

18

STOPPER

09152-06001

1

$1.90

In stock

19

NO DESCRIPTION AVAILABLE This part replaces 47181-32500-185.

47181-32500

1
Out of stock

20

COVER, SEAT LOWER LH

47281-32500-185

1
Out of stock

21

CLAMP

09403-07306

2

$2.92

In stock

22

CARRIER | OPT

46310-32400

1
Out of stock

23

PLUG | OPT

09250-11003

1

$2.72

In stock
