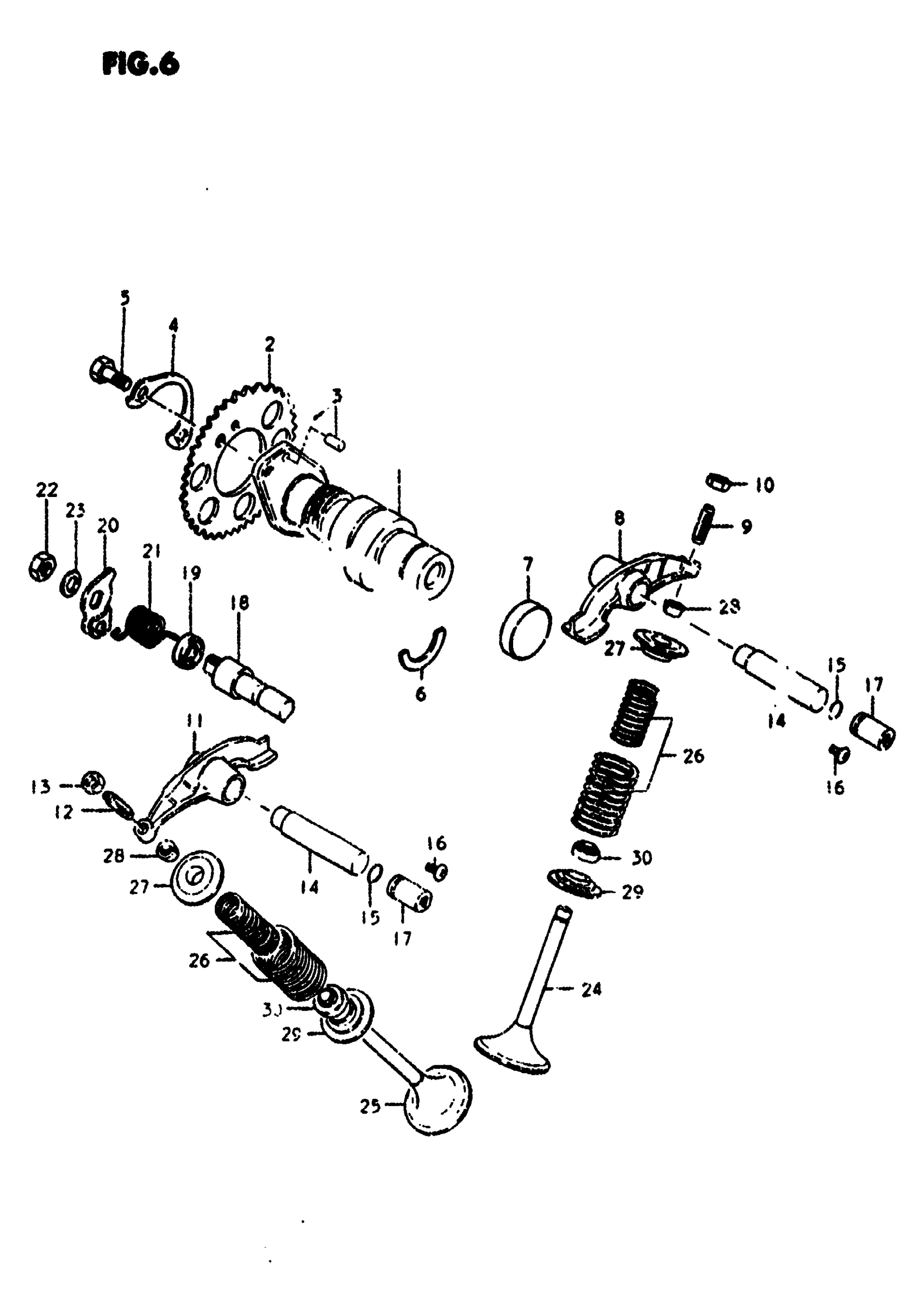

Suzuki SP400 (1980) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT

12711-32411

Unavailable

2

SPROCKET (NT:34)

12741-32402

Unavailable

3

PIN This part replaces 06211-05103.

04221-05109

$1.55

4

WASHER This part replaces 12747-44000.

12747-44001

$2.60

5

BOLT

09111-06027

$1.87

6

C RING

09390-25003

$2.56

7

PLUG

09241-30003

$6.48

8

ARM, VALVE ROCKER EX. | Includes Item(s) 9 - 10 This part replaces 12840-32400.

12850-37110

Unavailable

9

.SCREW, TAPPET ADJUSTING This part replaces 12842-32400.

12842-32411

$5.16

10

.NUT, ADJUSTING SCREW

12843-32400

$2.80

11

ARM, VALVE ROCKER EX. | Includes Item(s) 12 - 13 This part replaces 12850-37100.

12850-37110

Unavailable

12

.SCREW, TAPPET ADJUSTING This part replaces 12842-32400.

12842-32411

$5.16

13

.NUT, ADJUSTING SCREW

12843-32400

$2.80

14

SHAFT, ROCKER ARM

12861-32400

Unavailable

15

.O RING (D:1.9,ID:8.6) This part replaces 09280-09004.

09280-09005

$3.44

16

SCREW

02142-05107

$1.15

17

CAP, ROCKER ARM SHAFT

12862-32401

Unavailable

18

SHAFT, DECOMP RH This part replaces 12941-37100.

12941-37103

Unavailable

19

SEAL, OIL This part replaces 09284-10005.

09282-10014

$6.23

20

LEVER, SHAFT RH This part replaces 12942-37100.

12942-37101

Unavailable

21

SPRING

09448-17014

$4.42

22

NUT This part replaces 08310-22088.

08310-00087

$1.91

23

WASHER This part replaces 08322-11088.

08322-01087

$1.92

24

VALVE,INTAKE This part replaces 12911-32430.

12911-32431

Unavailable

25

VALVE,EXHAUST This part replaces 12912-32430.

12912-32431

Unavailable

26

VALVE SPRING SET This part replaces 12900-32810.

12920-32420

Unavailable

27

RETAINER, VALVE SPRING This part replaces 12931-45000.

12931-45001

$9.17

28

COTTER, VALVE

12932-45010

$2.60

29

SEAT, SPRING

12933-45001

$7.07

30

OIL SEAL

09289-07002

$7.52
