1979 Suzuki SP370 Rear Swinging Arm Diagram

← All diagrams

Find the part on the Rear Swinging Arm diagram for your 1979 Suzuki SP370, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

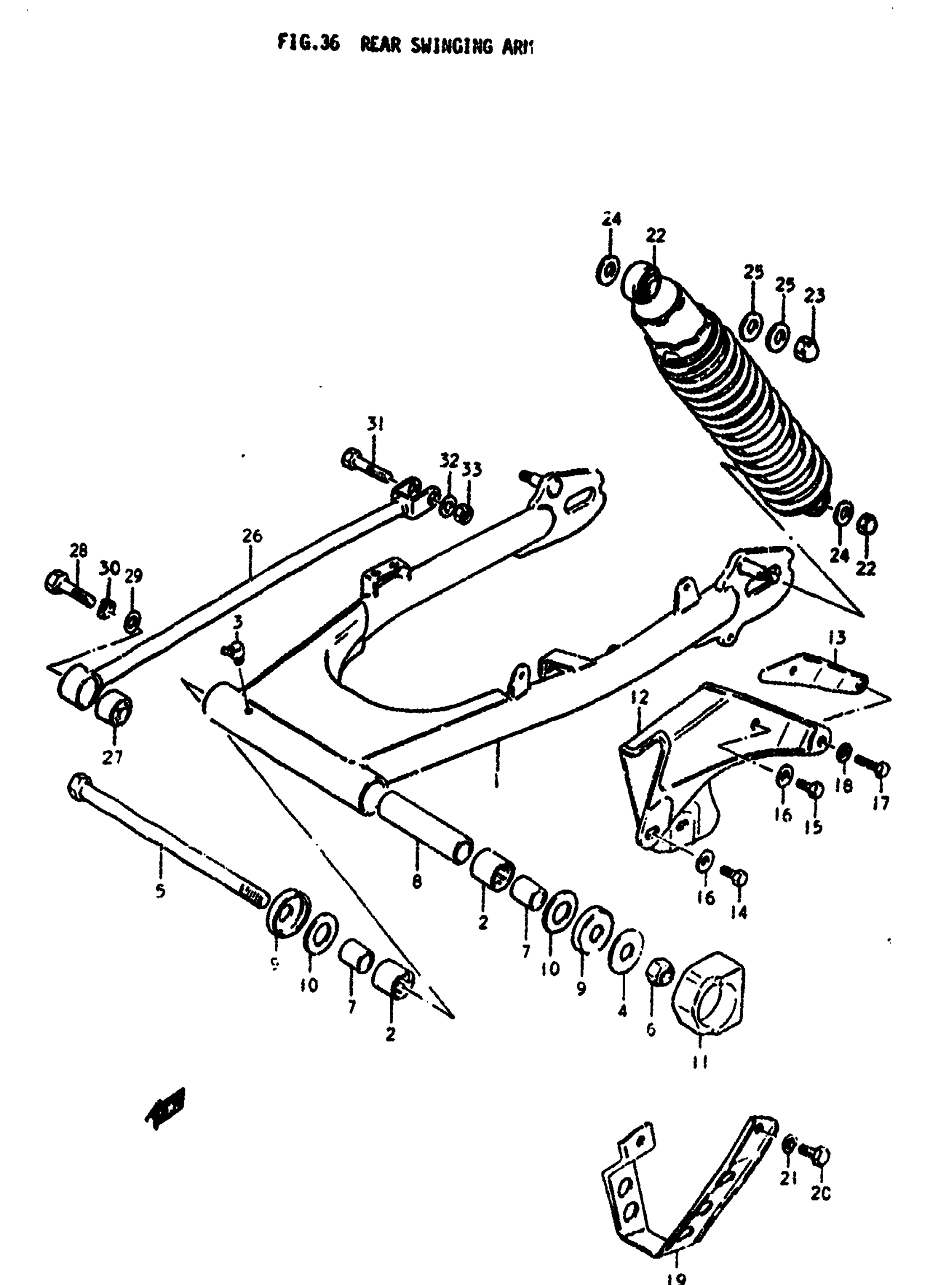

1979 Suzuki SP370 Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR SWINGING ARM SET | C This part replaces 61100-32861-019.

61100-32862-019

1
Out of stock

1

REAR SWINGING ARM SET | N; Includes Item(s) 2 - 4

61100-32862-019

1
Out of stock

2

BEARING

09263-22022

2
Out of stock

3

NIPPLE, GREASE This part replaces 08351-31008.

08351-3100A

1
Out of stock

4

SHIM

61269-32990

1
Out of stock

5

NO DESCRIPTION AVAILABLE | C; 14x232.5 This part replaces 61211-38003.

61211-38004

1
Out of stock

5

SHAFT, PIVOT | N; 16x233.5

61211-32410

1
Out of stock

6

NUT | C This part replaces 08319-21148.

08319-2114A

1
Out of stock

6

NUT | N This part replaces 08319-21168.

08319-2116A

1
Out of stock

7

SPACER | C; 14x22x22

61251-32400

2
Out of stock

7

SPACER | N; 16x22x22

61251-32410

2
Out of stock

8

SPACER, CENTER | C; 15.3x21.7x142

09180-15044

1
Out of stock

8

SPACER, CENTER | N; 16.2x21.7x142

09180-16018

1
Out of stock

9

COVER, DUST SEAL | C

61262-45002

2
Out of stock

9

COVER DUST SEAL | N This part replaces 61262-32410.

61262-32411

2
Out of stock

10

WASHER | C; 14.2x34x1

09160-14020

2
Out of stock

10

WASHER | N

08211-16341

2
Out of stock

11

BUFFER, CHAIN TOUCH DEFENSE

61273-41110

1
Out of stock

12

CHAIN CASE

61311-32400

1
Out of stock

13

REINFOCEMENT

61380-30500

1
Out of stock

14

BOLT This part replaces 01107-06108.

01500-06107

2
Out of stock

15

BOLT | 6xB

09100-06011

1
Out of stock

16

WASHER

09169-06010

3
Out of stock

17

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

1
Out of stock

18

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

19

GUIDE, CHAIN This part replaces 61341-30500.

61341-30501

1
Out of stock

20

BOLT This part replaces 01107-08128.

01500-08127

2
Out of stock

21

.LOCK WASHER This part replaces 08321-21088.

08321-01087

2
Out of stock

22

SHOCK ABSORBER, REAR This part replaces 62100-32400.

62100-32410

2
Out of stock

23

NUT This part replaces 08313-11108.

08313-10107

4
Out of stock

24

WASHER This part replaces 08322-11128.

08322-01127

2
Out of stock

25

WASHER, LOWER (10.5X24X2.3) | 10.5x24x2.3 This part replaces 09160-10001.

09160-10093

6
Out of stock

26

NO DESCRIPTION AVAILABLE This part replaces 64310-32400.

64310-32400-019

1
Out of stock

27

BUSHING, FRONT

09319-10008

1
Out of stock

28

BOLT This part replaces 01107-10408.

01500-10407

1
Out of stock

29

WASHER This part replaces 08322-11108.

08322-01107

1
Out of stock

30

LOCK WASHER This part replaces 08321-21108.

08321-01107

1
Out of stock

31

BOLT This part replaces 01107-10408.

01500-10407

1
Out of stock

32

WASHER This part replaces 08322-11108.

08322-01107

1
Out of stock

33

NUT This part replaces 08319-21108.

09159-10027

1
Out of stock
