1979 Suzuki SP370 Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 1979 Suzuki SP370, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

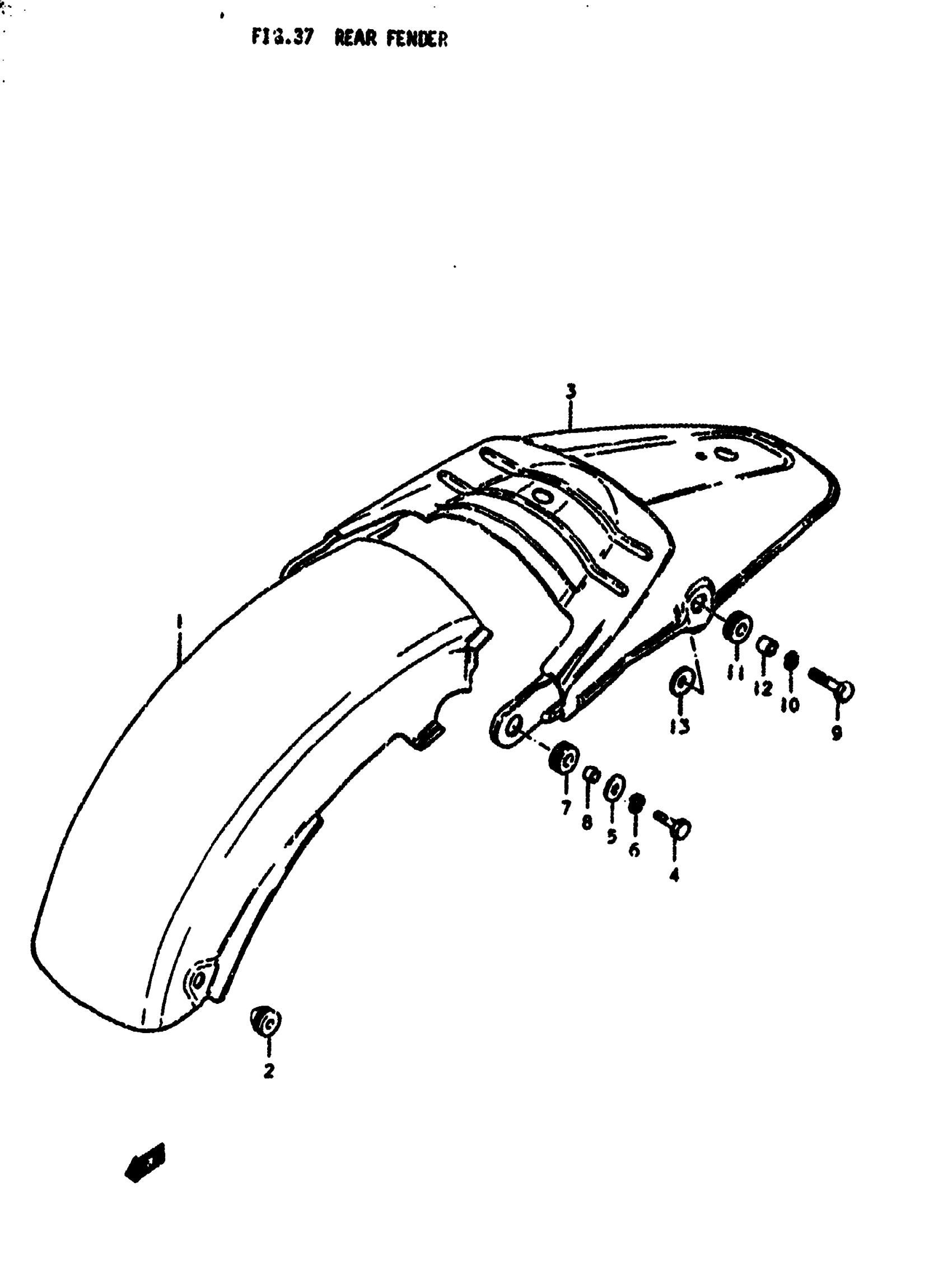

1979 Suzuki SP370 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, REAR FENDER FRONT | C This part replaces 63112-32400.

63112-32401

1
Out of stock

1

BODY, REAR FENDER FRONT | N

63112-32401

1
Out of stock

2

CUSHION, FRONT This part replaces 63159-32400.

63159-32401

2
Out of stock

3

NO DESCRIPTION AVAILABLE | C This part replaces 63110-32400-05J.

63110-32400-13L

1
Out of stock

3

FENDER, REAR | N

63110-32400-05L

1
Out of stock

4

BOLT This part replaces 01107-06208.

01500-06207

2
Out of stock

5

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

2
Out of stock

6

2

$2.28

In stock

7

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

2
Out of stock

8

SPACER | 6.1x9x7.5

09180-06038

2
Out of stock

9

BOLT This part replaces 01107-08258.

01500-08257

2
Out of stock

10

2

$2.28

In stock

11

CUSHION

09320-09002

2
Out of stock

12

SPACER | 8.2x10x8

09180-08039

2
Out of stock

13

WASHER | 8.2x24x1.6 This part replaces 09160-08021.

09160-08130

2
Out of stock
