1979 Suzuki SP370 Rear Combination Lamp Diagram

← All diagrams

Find the part on the Rear Combination Lamp diagram for your 1979 Suzuki SP370, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

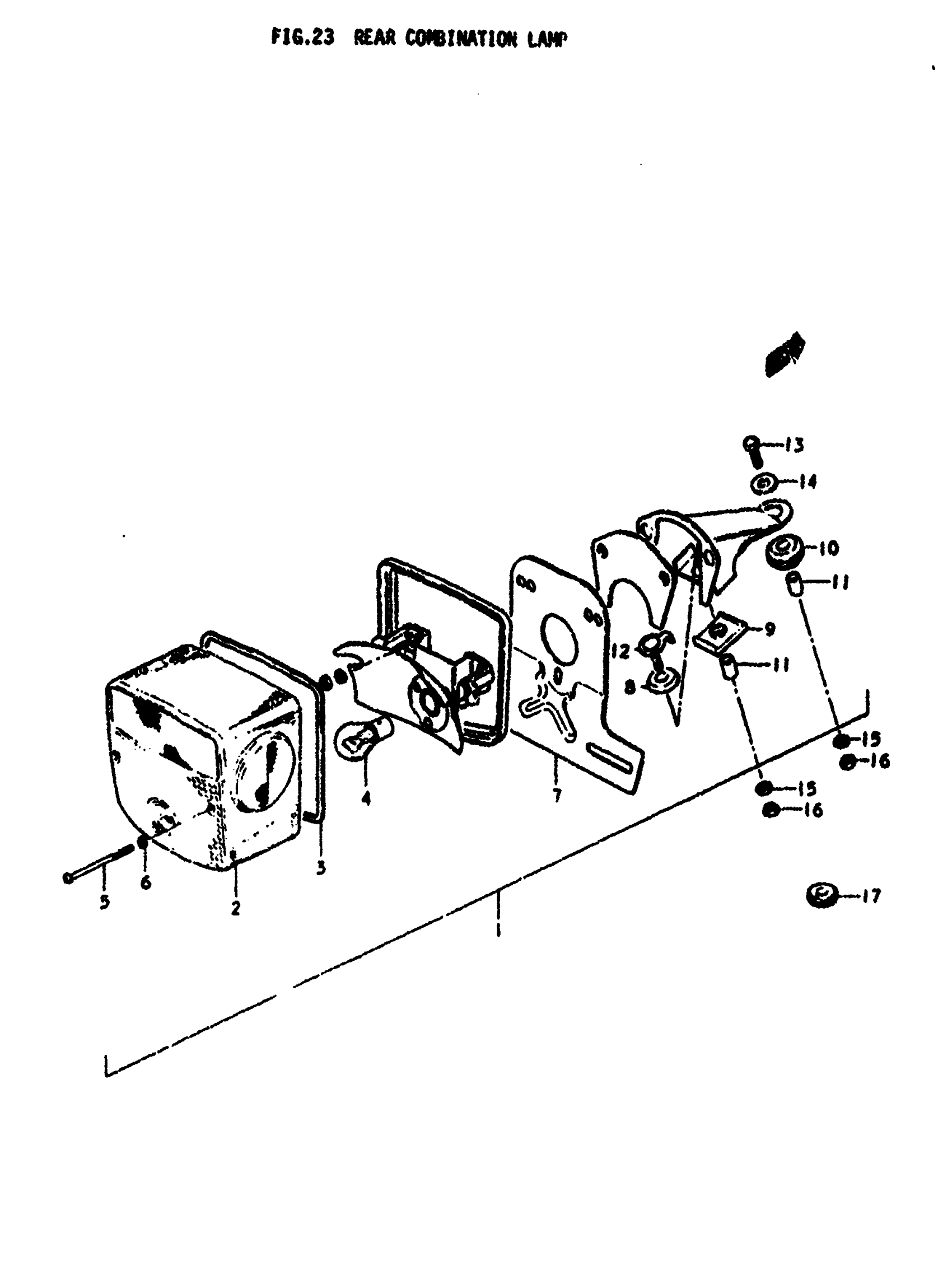

1979 Suzuki SP370 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 11

35710-32430

1
Out of stock

2

LENS This part replaces 35712-30511.

35712-30512

1
Out of stock

3

GASKET

35713-30510

1
Out of stock

4

BULB | 6V, 32/3CP

09471-06030

1
Out of stock

5

SCREW 4X55 This part replaces 09125-04002.

02112-04558

2
Out of stock

6

GASKET

35627-43010

2

$2.65

In stock

7

NO DESCRIPTION AVAILABLE This part replaces 35927-30503.

35927-30504

1
Out of stock

8

CUSHION

35761-32410

1
Out of stock

9

CUSHION

35762-32410

1
Out of stock

10

CUSHION

35765-32410

1
Out of stock

11

SPACER This part replaces 35766-22210.

35766-37120

2
Out of stock

12

BOLT

35792-32400

1
Out of stock

13

BOLT This part replaces 01107-06208.

01500-06207

1
Out of stock

14

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

1
Out of stock

15

.WASHER This part replaces 08322-11068.

08322-0106B

2
Out of stock

16

.NUT This part replaces 08310-11067.

08310-00067

2
Out of stock

17

GROMMET

09308-09001

1
Out of stock
