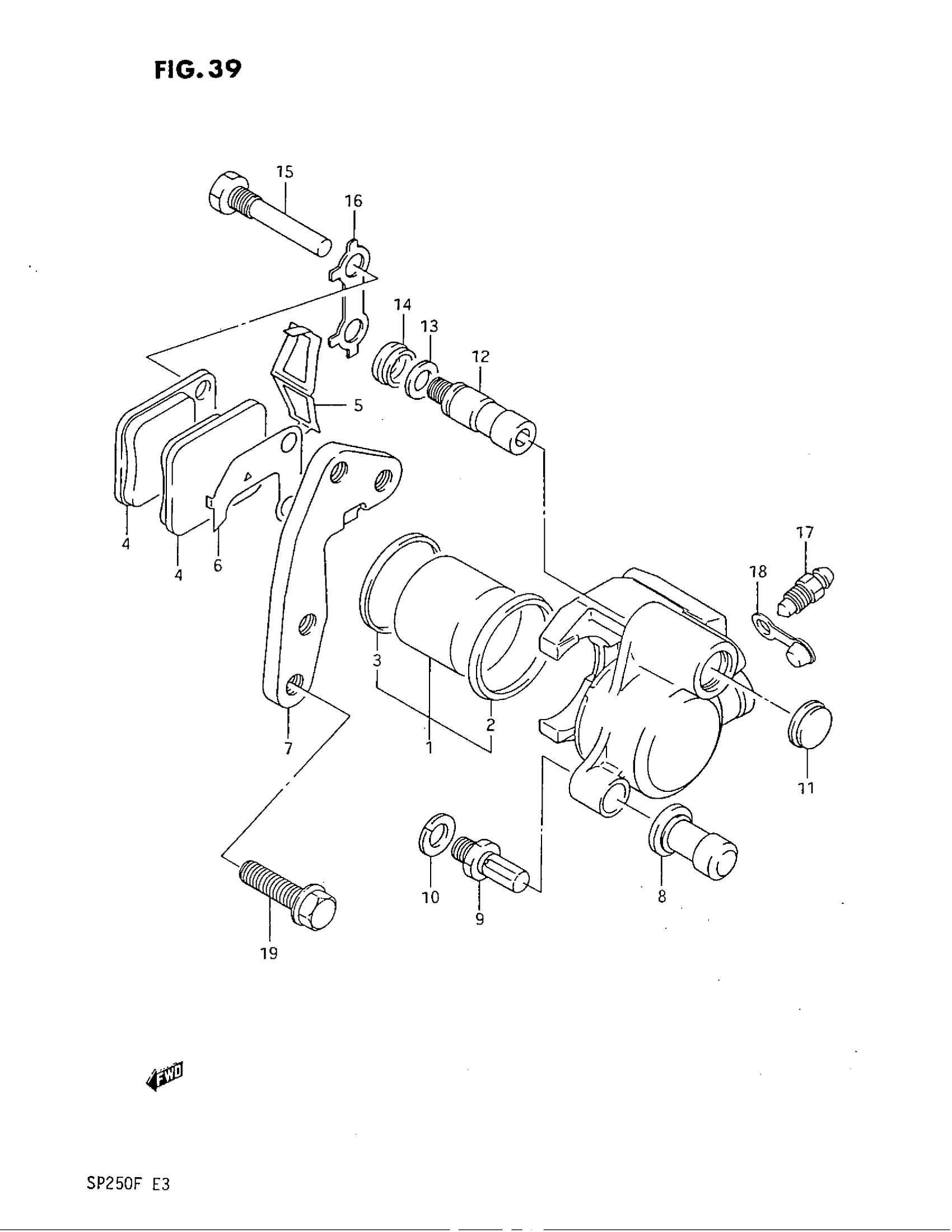

Suzuki SP250 (1985) FRONT CALIPER Diagram

#

Description
Price

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 18 This part replaces 59300-13A10.

59300-13A20

Unavailable

1

PISTON SET

59300-13810

$42.57

2

..SEAL SET,PISTON This part replaces 59107-13A00.

69100-13820

$8.38

3

BOOT

59108-13A00

Unavailable

4

PAD SET This part replaces 59340-13A00.

59300-44870

Unavailable

5

SPRING

59315-13A00

$12.43

6

SHIM

59371-13A00

$10.58

7

BRACKET This part replaces 59351-13A00.

59351-13A01

Unavailable

8

BOOT

59386-13A00

$7.60

9

BOLT

59382-13A00

$7.56

10

WASHER

59314-13A00

$2.28

11

DUST SEAL

59384-13A00

$5.16

12

PIN, SLIDE This part replaces 59305-13A00.

59305-13A01

$22.60

13

SPRING

59306-13A00

$3.57

14

BOOT

59303-13A00

$5.71

15

PIN

59345-13A00

$7.88

16

WASHER

59346-13A00

$4.70

17

BLEEDER

59121-01A00

$8.35

18

CAP

59122-01A00

$4.15

19

BOLT (8X29) This part replaces 09103-08156.

09103-08409

$3.96
