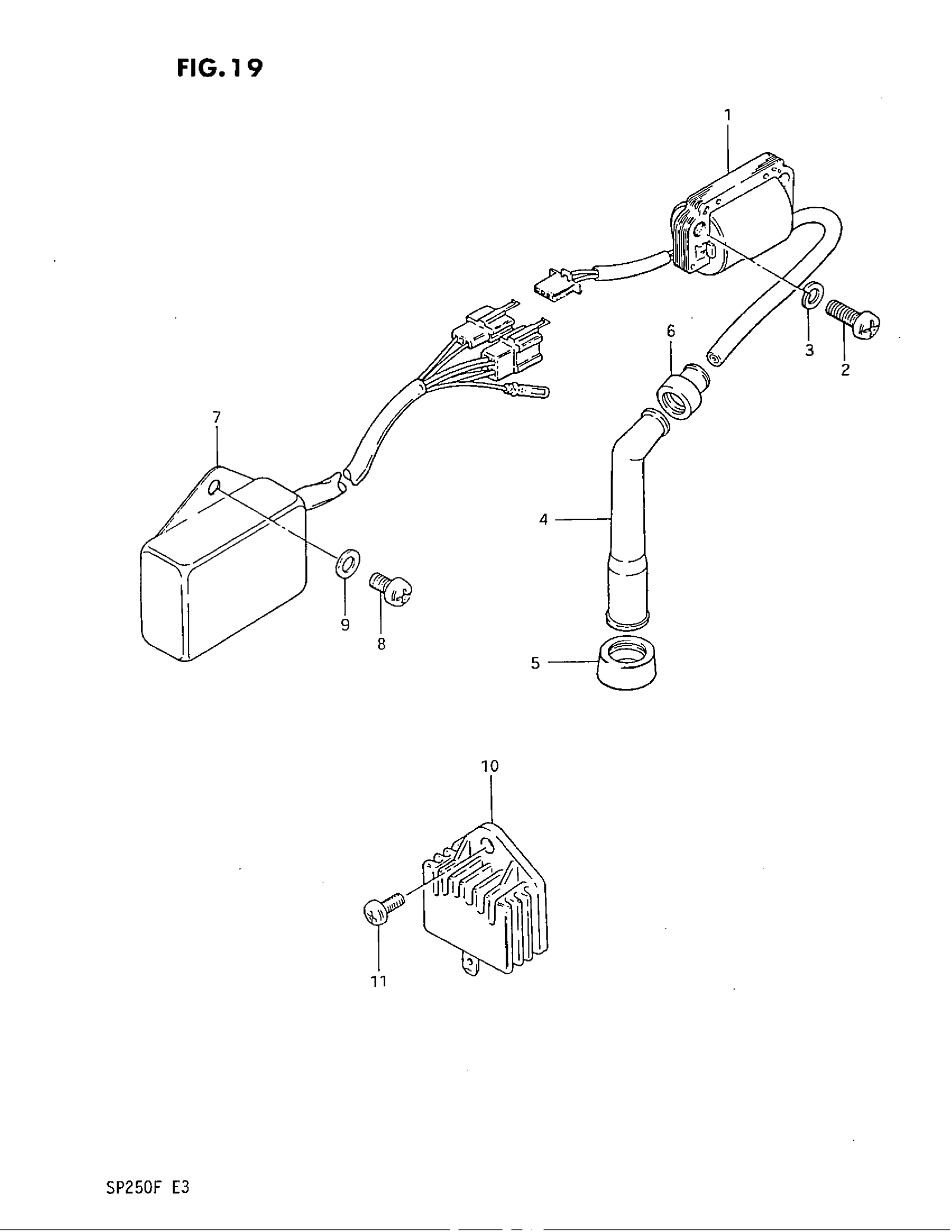

Suzuki SP250 (1985) ELECTRICAL Diagram

#

Description
Price

1

COIL ASSY, IGNITION

33410-38210

Unavailable

2

SCREW This part replaces 02112-06208.

02112-06207

$1.83

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

4

CAP, SPARK PLUG

33510-45010

$24.59

5

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.50

6

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.15

7

IGNITER UNIT

32900-38210

Unavailable

8

SCREW This part replaces 02112-06104.

02112-0610B

$1.89

9

.WASHER This part replaces 08322-21064.

08322-0106B

$2.31

10

RECTIFIER, REGULATOR

32800-38200

Unavailable

11

SCREW This part replaces 02112-06128.

02112-06127

$1.89
