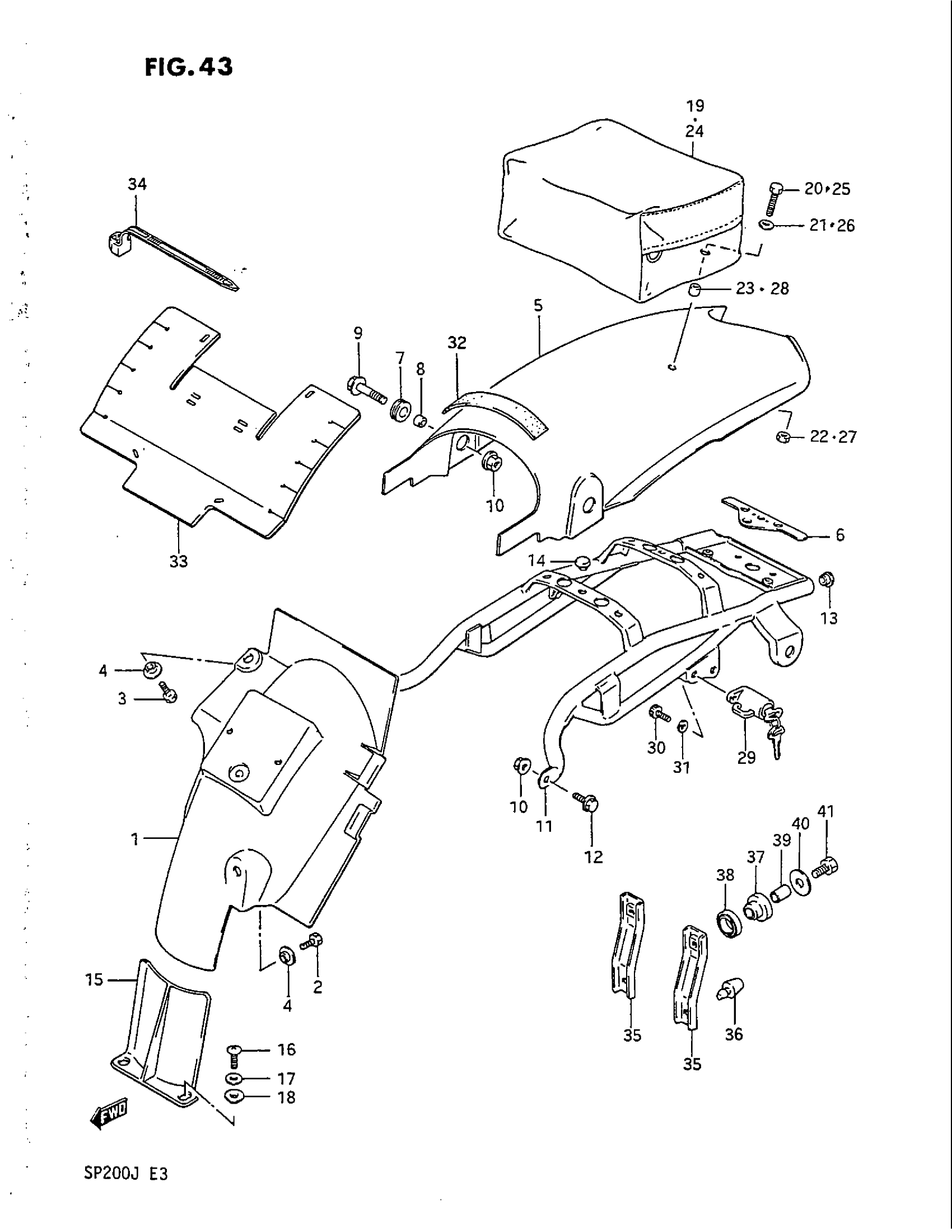

Suzuki SP200 (1988) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER FRONT This part replaces 63112-42A00.

63112-42A10

Unavailable

2

BOLT This part replaces 01107-06125.

01500-0612A

$1.85

3

BOLT This part replaces 01107-06165.

01500-0616A

$1.82

4

WASHER This part replaces 09169-06028.

09169-06041

$2.02

5

NO DESCRIPTION AVAILABLE This part replaces 63113-13A10-14C.

63113-13A01-14C

Unavailable

6

CUSHION

63191-13A00

Unavailable

7

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.97

8

SPACER This part replaces 09180-08021.

09180-08188

$2.68

9

BOLT This part replaces 01517-08304.

01550-0830A

$2.82

10

NUT

08319-31087

$2.38

11

REINFORCEMENT

63120-42A40

Unavailable

12

BOLT (8X20) This part replaces 09103-08102.

09103-08505

$3.90

13

PLUG This part replaces 09250-13001.

09250-13004

$3.70

14

CUSHION

09321-06016

Unavailable

15

MUD GUARD, REAR UNIT This part replaces 63411-42A00.

63411C42A00J000

Unavailable

16

SCREW

02142-06167

$1.41

17

WASHER (6.5X16X1.2)

09160-06019

$1.43

18

WASHER This part replaces 09169-06025.

09169-06010

$2.71

19

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 94900-42A00-7TP.

94900-42811-9DM

Unavailable

20

BOLT This part replaces 01107-06257.

01500-06257

$2.01

21

WASHER This part replaces 09160-06007.

09160-06084

$1.82

22

NUT This part replaces 08319-31066.

08319-31067

$2.09

23

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$1.68

24

BAG,SEAT TAIL | MODEL H/J; Includes Item(s) 25 - 28 This part replaces 94900-42810-9DD.

94900-42811-9DD

Unavailable

25

BOLT This part replaces 01107-06257.

01500-06257

$2.01

26

WASHER This part replaces 09160-06007.

09160-06084

$1.82

27

NUT This part replaces 08319-31066.

08319-31067

$2.09

28

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$1.68

29

LOCK SET, HELME This part replaces 95700-35821.

95700-49850

Unavailable

30

BOLT, NO.3 This part replaces 09106-06024.

07130-0610B

$1.23

31

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.89

32

CUSHION

63191-44A00

Unavailable

33

MUD FLAP

63412-44A00

Unavailable

34

CLAMP

09407-14403

$2.31

35

HOLDER, LICENSE PLATE

63462-42A00

Unavailable

36

CUSHION

09321-06025

Unavailable

37

CUSHION

09320-10038

$2.67

38

CUSHION

09320-14017

$2.40

39

SPACER

09180-06159

$4.28

40

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.97

41

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$2.01
