Find the part on the Rear Cushion diagram for your 1988 Suzuki SP200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

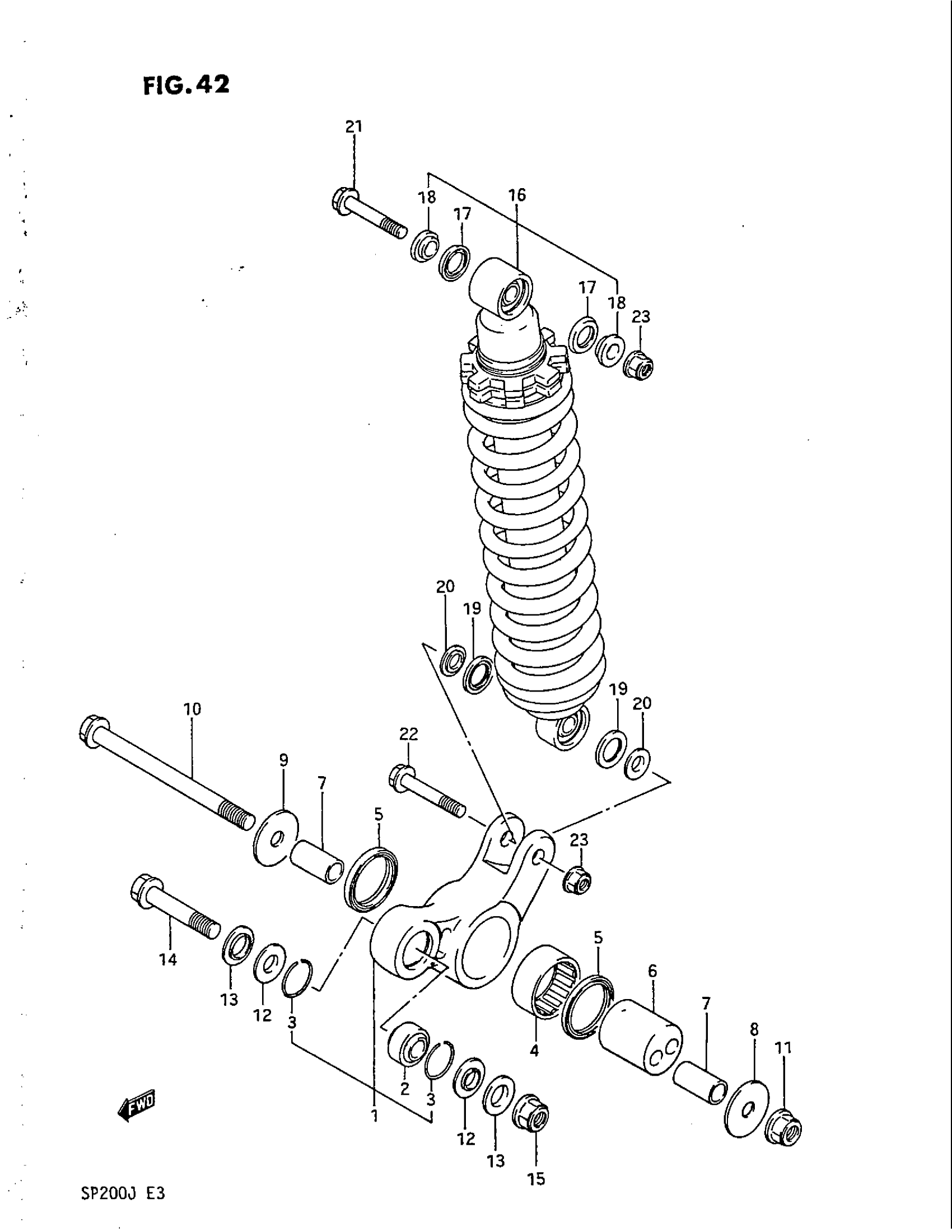

1988 Suzuki SP200 Rear Cushion Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 4

62600-42812

1
Out of stock

2

BEARING, FRONT

09269-12006

1
Out of stock

3

RING, STOPPER REAR This part replaces 62657-05A00.

62277-27C20

2
Out of stock

4

BEARING, CENTER

09263-37003

1
Out of stock

5

DUST SEAL

62624-42A00

2
Out of stock

6

SPACER

62623-42A11

1
Out of stock

7

SPACER

62646-42A11

2
Out of stock

8

WASHER, LH

09160-12065

1
Out of stock

9

WASHER, RH

62625-42A00

1
Out of stock

10

SHAFT, REAR CUSHION LEVER CENTER This part replaces 62621-42A11.

62621-42AA0

1
Out of stock

11

NUT This part replaces 08319-31128.

08319-3112A

1
Out of stock

12

DUST SEAL

62647-05A00

2
Out of stock

13

SPACER

62316-05A01

2
Out of stock

14

BOLT

62668-42A02

1
Out of stock

15

NUT This part replaces 08319-31128.

08319-3112A

1
Out of stock

16

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 62100-42A20-019.

62100-42A12-34S

1
Out of stock

16

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 62100-42A20-19F.

62100-42A12-34S

1
Out of stock

16

NO DESCRIPTION AVAILABLE | MODEL J; Includes Item(s) 17 - 20 This part replaces 62100-42A21-34S.

62100-42A12-34S

1
Out of stock

17

DUST SEAT

62226-20900

2
Out of stock

18

COLLAR

62684-20900

2
Out of stock

19

DUST SEAL | FOR 62100-42A20-019,19F This part replaces 62226-31300.

62226-02B00

2
Out of stock

19

DUST SEAL | FOR 62100-42A21-34S

62226-02B00

2
Out of stock

20

COLLAR

62684-31300

2
Out of stock

21

BOLT (10X58) This part replaces 62311-14501.

09103-10428

1
Out of stock

22

BOLT, LOWER

09103-10126

1
Out of stock

23

NUT

08319-31107

2
Out of stock
