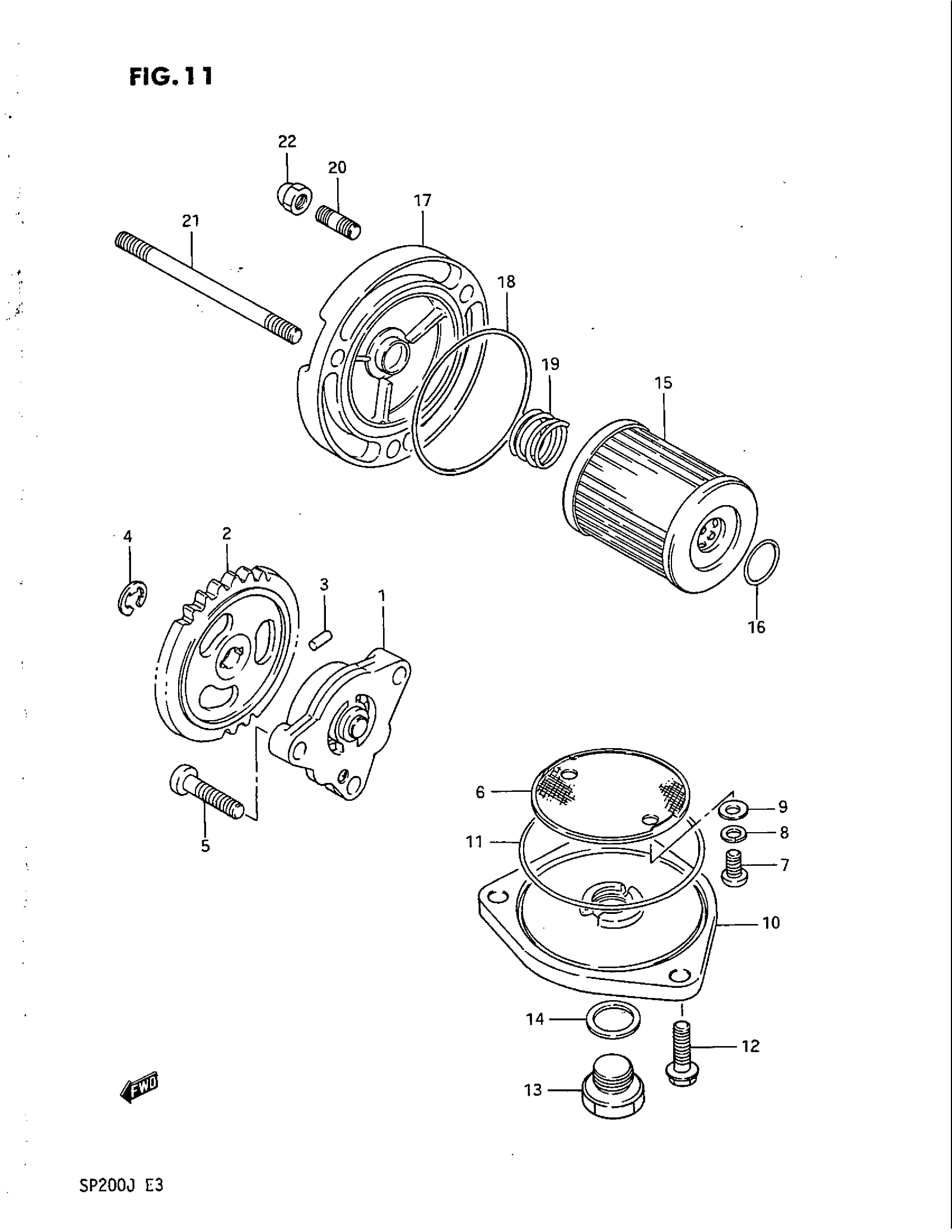

Suzuki SP200 (1988) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, ENG OIL

16400-42A01

$175.28

2

GEAR, OIL PUMP DRIVEN (NT:30) This part replaces 16331-42A00.

16331-04B00

$51.22

3

PIN

09261-02008

$1.48

4

CIRCLIP This part replaces 08332-11068.

08332-1106A

$1.46

5

SCREW This part replaces 02112-06256.

02112-0625A

$1.85

6

STRAINER, ENGINE OIL

16520-05202

$5.71

7

SCREW This part replaces 02112-05126.

02112-0512A

$1.49

8

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.89

9

WASHER, FRONT This part replaces 08322-21056.

08322-0105A

$1.89

10

CAP, OIL STR

16523-05200

$14.04

11

.O RING (D:2.4,ID:60.5)

09280-60005

$2.95

12

BOLT This part replaces 01547-06208.

01547-06207

$2.09

13

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$4.86

14

GASKET

09168-14004

$1.69

15

FILTER ASSY, ENG OIL This part replaces 16510-24501.

16510-25C00

$7.14

16

O RING

09280-13004

$2.25

17

CAP, OIL FILTER This part replaces 16512-42A00.

16512-42A20

$37.12

18

O RING

09280-54001

$3.49

19

SPRING

09440-18002

$1.13

20

STUD BOLT This part replaces 01421-06128.

09108-06128

$2.15

21

STUD BOLT (L:90) This part replaces 01421-06908.

09108-06108

$3.49

22

NUT This part replaces 08313-11065.

08313-1006A

$1.89
