1988 Suzuki SP200 Front Master Cylinder Diagram

← All diagrams

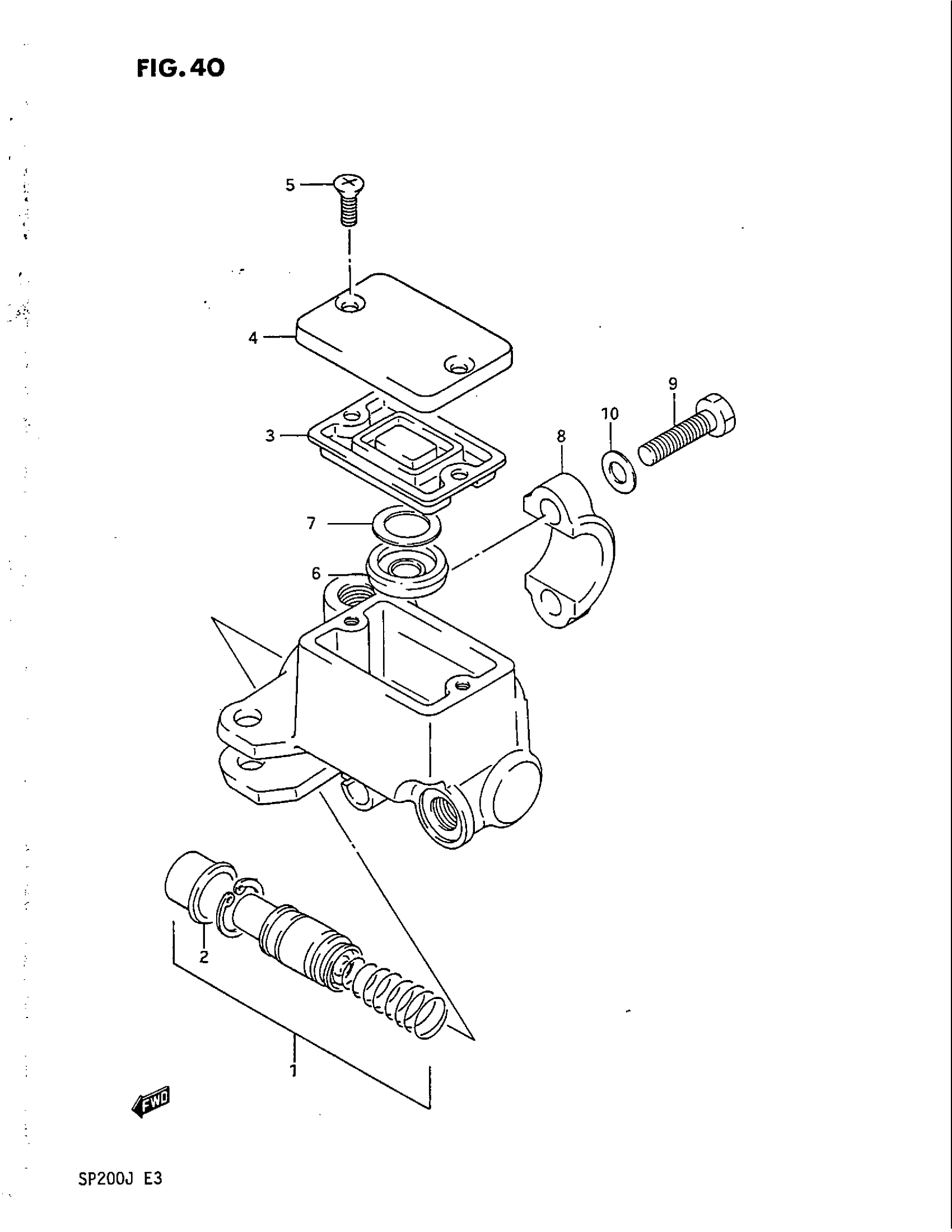

Find the part on the Front Master Cylinder diagram for your 1988 Suzuki SP200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki SP200 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CYLINDER, FR MA | Includes Item(s) 1 - 10 This part replaces 59600-13A20.

59600-13A60

1
Out of stock

1

PISTON & CUP SET

59600-13820

1
Out of stock

2

BOOT

59666-44300

1
Out of stock

3

DIAPHRAGM

59667-04700

1
Out of stock

4

CAP This part replaces 59669-04710.

69669-24A01

1
Out of stock

5

SCREW

69689-49300

2
Out of stock

6

SEPARATOR

59748-15400

1
Out of stock

7

PLATE

59749-15400

1
Out of stock

8

.HOLDER

59671-36500

1
Out of stock

9

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

2
Out of stock

10

.WASHER This part replaces 08322-21064.

08322-0106B

2
Out of stock
