1988 Suzuki SP125 Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 1988 Suzuki SP125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

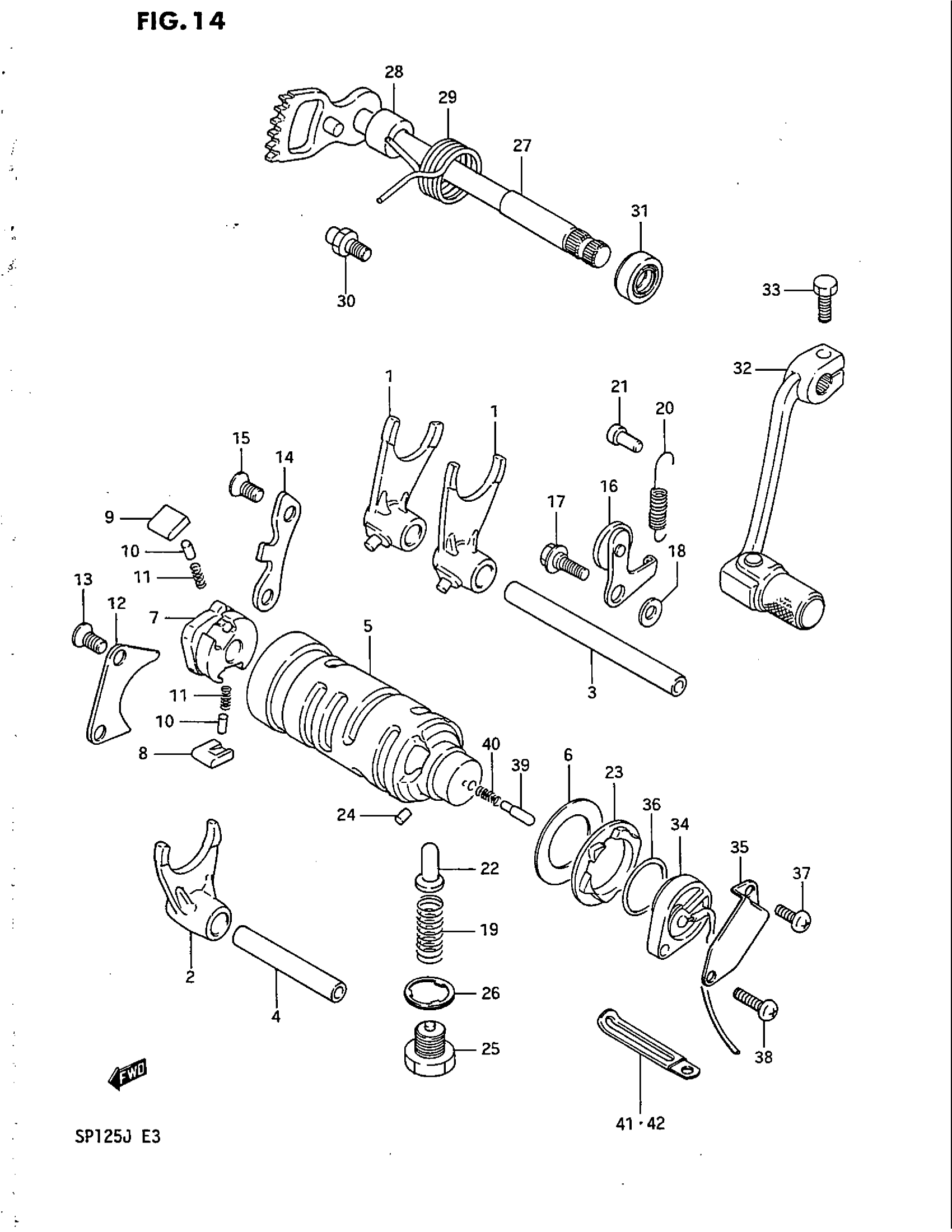

1988 Suzuki SP125 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFT NO.2 This part replaces 25211-05200.

25221-08300

2
Out of stock

2

FORK, GEAR SHIFT NO.3

25231-05201

1
Out of stock

3

SHAFT, GEAR SHIFT FORK (L:109

25411-16701

1
Out of stock

4

SHAFT, NO.1 This part replaces 25421-35401.

25421-35410

1
Out of stock

5

CAM, GEAR SHIFTING

25310-44A00

1
Out of stock

6

WASHER, SUB T/M DRIVE This part replaces 08211-25401.

09181-25251

1
Out of stock

7

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

1
Out of stock

8

PAWL, GEAR SHIFT NO.1 | MODEL G/H This part replaces 25323-34200.

25323-34201

1
Out of stock

8

PAWL, GEAR SHIFT NO.1 | MODEL J

25323-34201

1
Out of stock

9

PAWL, GEAR SHIFT NO.2 | MODEL G/H This part replaces 25324-34200.

25324-34201

1
Out of stock

9

PAWL, GEAR SHIFT NO.2 | MODEL J

25324-34201

1
Out of stock

10

PIN

09261-05003

2
Out of stock

11

SPRING

09440-04003

2
Out of stock

12

LIFTER, GR SHIFT POLE

25331-30001

1
Out of stock

13

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

14

GUIDE, GEAR SHIFT CAM

25341-05200

1
Out of stock

15

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

16

STOPPER, GEAR SHIFT CAM

25350-44A00

1
Out of stock

17

BOLT This part replaces 09111-06019.

09111-06054

1
Out of stock

18

WASHER

08211-06141

1
Out of stock

19

SPRING

09440-11014

1
Out of stock

20

SPRING

09443-08044

1
Out of stock

21

HOOK

09223-04001

1
Out of stock

22

STOPPER, GEAR SHIFT CAM NO.2

25351-30010

1
Out of stock

23

PLATE, GEAR SHIFT CAM STOPPER

25381-45400

1
Out of stock

24

PIN This part replaces 06211-04063.

04221-04069

1
Out of stock

25

1

$3.63

In stock

26

WASHER

09168-14004

1
Out of stock

27

SHAFT, GEAR SHIFTING

25510-05201

1
Out of stock

28

SPACER

09180-12068

1
Out of stock

29

SPRING

09444-26001

1
Out of stock

30

STOPPER, ARM This part replaces 25671-01000.

25671-01011

1
Out of stock

31

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

32

LEVER ASSY, GEAR SHIFT This part replaces 25600-37211.

25600-42A00

1
Out of stock

33

BOLT, GEAR SHIFT LINK This part replaces 09100-06100.

01500-0620A

1
Out of stock

34

BODY, SWITCH | MODEL G

37720-42A00

1
Out of stock

34

BASE ASSY, NEUTRAL SWITCH | MODEL H/J This part replaces 37720-42A10.

37720-42A30

1
Out of stock

35

PROTECTOR

37721-42A00

1
Out of stock

36

O RING, FAIL SAFE SWITCH This part replaces 09280-22014.

37941-33D00

1
Out of stock

37

SCREW This part replaces 02112-05086.

02112-0508A

1
Out of stock

38

.SCREW This part replaces 02112-05166.

02112-0516A

1
Out of stock

39

CONTACT

09209-05011

1
Out of stock

40

SPRING

09440-04010

1
Out of stock

41

CLAMP (L:60) This part replaces 09404-06422.

09404-06429

1
Out of stock

42

CLAMP | MODEL G This part replaces 09404-06413.

09404-06039

1
Out of stock

42

CLAMP(L:80) | MODEL H/J This part replaces 09404-06417.

09404-06036

1
Out of stock
