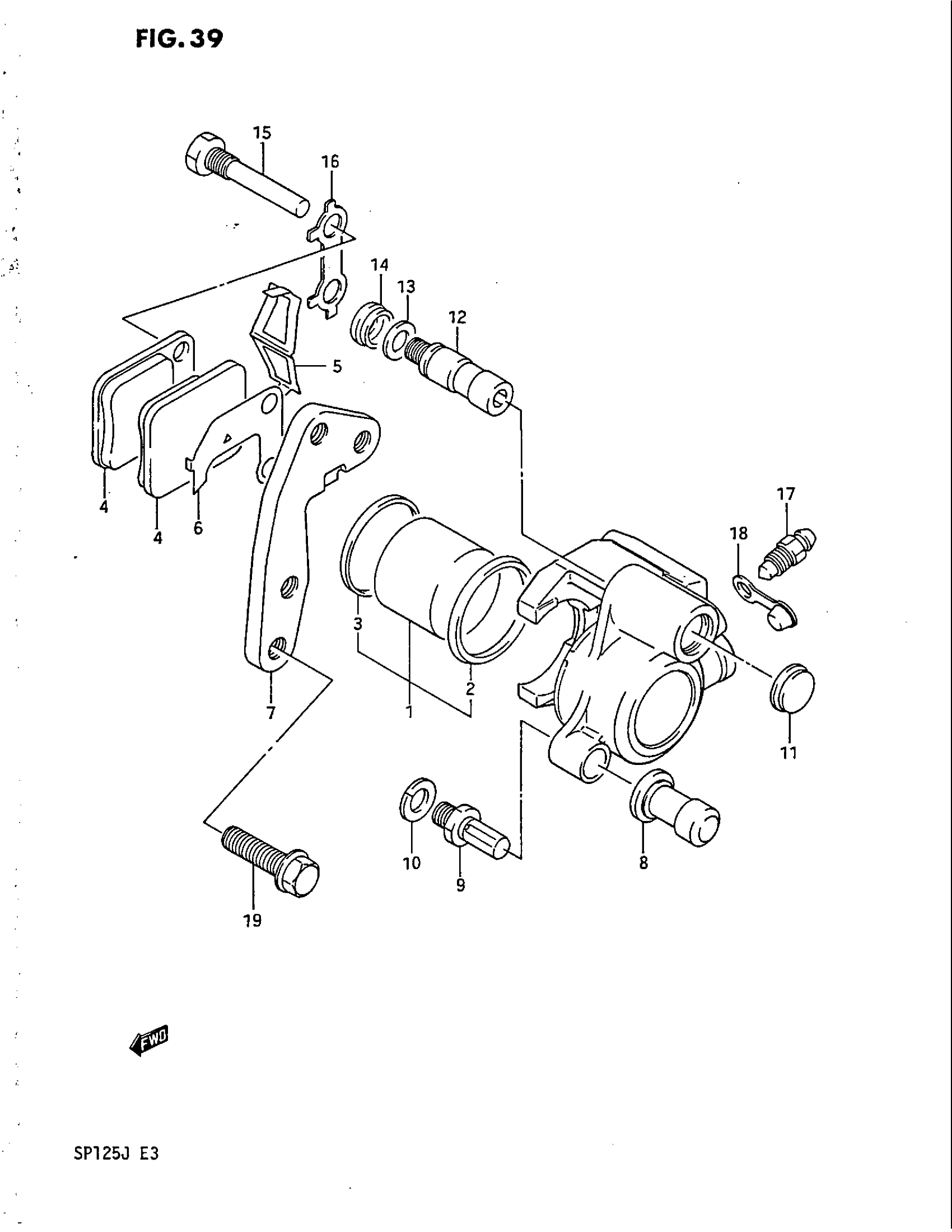

Suzuki SP125 (1988) FRONT CALIPER Diagram

#

Description
Price

CALIPER ASSY, FRONT LH | MODEL G/H This part replaces 59300-13A02.

59300-42A10-999

$243.42

CALIPER ASSY, FRONT LH | MODEL J; Includes Item(s) 1 - 18 This part replaces 59300-44A00.

59300-42A10-999

$243.42

1

PISTON SET

59300-13810

$42.57

2

..SEAL SET,PISTON This part replaces 59107-13A00.

69100-13820

$8.02

3

BOOT

59108-13A00

Unavailable

4

PAD SET | MODEL G/H This part replaces 59340-13A00.

59300-44870

Unavailable

4

PAD SET | MODEL J This part replaces 59340-44A00.

59300-44870

Unavailable

5

SPRING

59315-13A00

$12.43

6

SHIM

59371-13A00

$10.58

7

BRACKET

59351-13A01

Unavailable

8

BOOT

59386-13A00

$7.28

9

BOLT

59382-13A00

$7.24

10

WASHER

59314-13A00

$2.28

11

DUST SEAL

59384-13A00

$4.93

12

PIN

59305-13A01

$22.60

13

SPRING

59306-13A00

$3.57

14

BOOT

59303-13A00

$5.46

15

PIN

59345-13A00

$7.88

16

WASHER

59346-13A00

$4.70

17

BLEEDER

59121-01A00

$7.99

18

CAP

59122-01A00

$3.97

19

BOLT This part replaces 01517-08307.

01550-08307

$3.24
