1988 Suzuki SP125 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1988 Suzuki SP125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

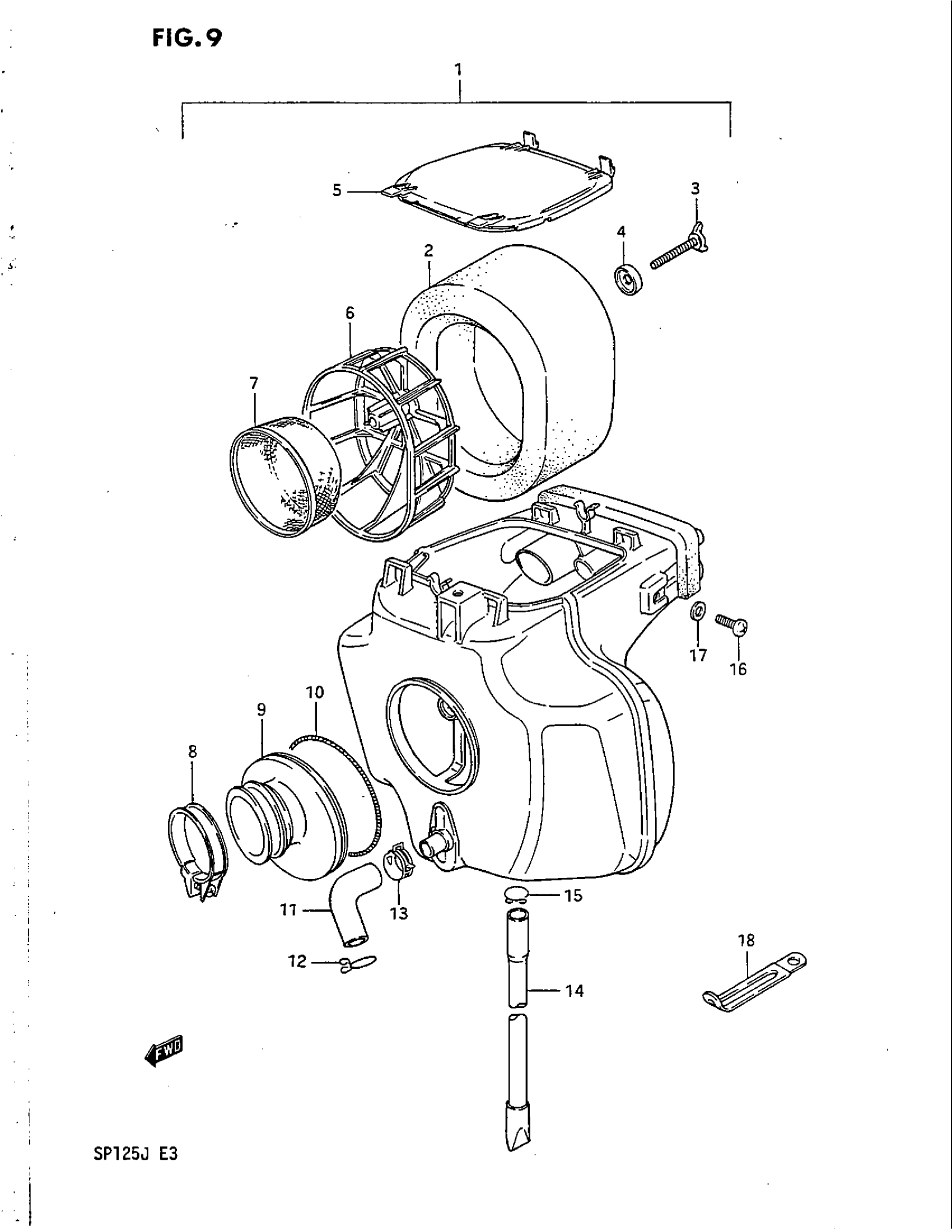

1988 Suzuki SP125 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 15 This part replaces 13700-44A10.

13700-44A11

1
Out of stock

2

FILTER This part replaces 13780-42A00.

13780-42A01

1
Out of stock

3

BOLT, WING

13831-42A00

1
Out of stock

4

WASHER

13796-16700

1
Out of stock

5

CAP

13740-42A00

1
Out of stock

6

HOLDER This part replaces 13791-42A00.

13790-42A00

1
Out of stock

7

TRAP

13810-42A00

1
Out of stock

8

CLAMP This part replaces 09402-48207.

09402-48208

1
Out of stock

9

TUBE, OUTLET

13881-44A10

1
Out of stock

10

SPRING

13826-38300

1
Out of stock

11

TUBE, BREATHER

13853-42A00

1
Out of stock

12

CLIP This part replaces 13828-00020.

09401-14401

1
Out of stock

13

CLIP This part replaces 13824-43400.

09401-14404

1
Out of stock

14

TUBE,DRAIN This part replaces 13870-42A00.

13870-11459

1
Out of stock

15

CLIP

09401-14301

1
Out of stock

16

SCREW

02112-06167

3
Out of stock

17

3

$2.28

In stock

18

CLAMP(L:80) This part replaces 09404-06404.

09404-06036

1
Out of stock
