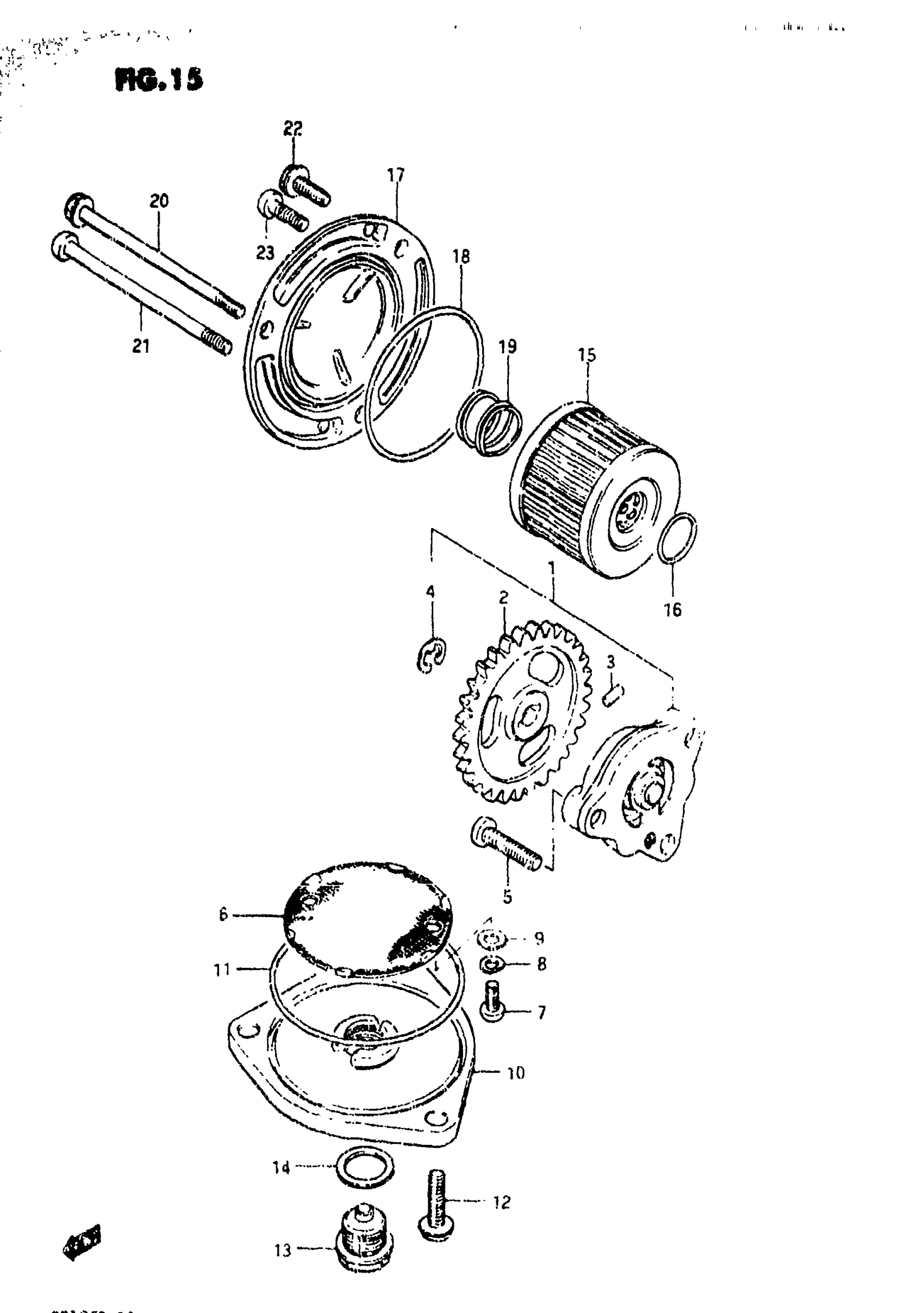

Suzuki SP125 (1983) OIL PUMP Diagram

PUMP ASSY, ENGINE OIL This part replaces 16400-05200.

16400-05201

Unavailable

GEAR, DRIVEN (NT:30)

16331-05200

Unavailable

PIN

09261-02008

$1.53

CIRCLIP This part replaces 08332-11068.

08332-1106A

$1.46

SCREW This part replaces 02112-06258.

02112-06257

$1.68

STRAINER, ENGINE OIL | MODEL Z This part replaces 16520-05200.

16520-05202

$5.71

STRAINER, ENGINE OIL | MODEL D

16520-05202

$5.71

SCREW This part replaces 02112-05128.

02112-05127

$2.01

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.89

WASHER This part replaces 08322-21058.

08322-01057

$1.93

CAP, OIL STR

16523-05200

$14.04

.O RING (D:2.4,ID:60.5)

09280-60005

$2.95

BOLT This part replaces 01547-06208.

01547-06207

$2.09

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$4.86

GASKET

09168-14004

$1.69

FILTER, ENGINE OIL

16510-05240

$5.55

O RING

09280-13004

$2.25

CAP, OIL FILTER | MODEL Z This part replaces 16512-05210.

16512-05212

Unavailable

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 16512-05200.

16512-29B00

Unavailable

O RING

09280-54001

$3.49

SPRING

09440-18002

$1.13

BOLT | MODEL Z This part replaces 01547-06908.

01547-0690B

$3.03

SCREW | MODEL D This part replaces 02112-06905.

02112-06907

$3.00

BOLT | MODEL Z This part replaces 01547-06208.

01547-06207

$2.09

SCREW | MODEL D This part replaces 02112-06205.

02112-0620A

$1.49
