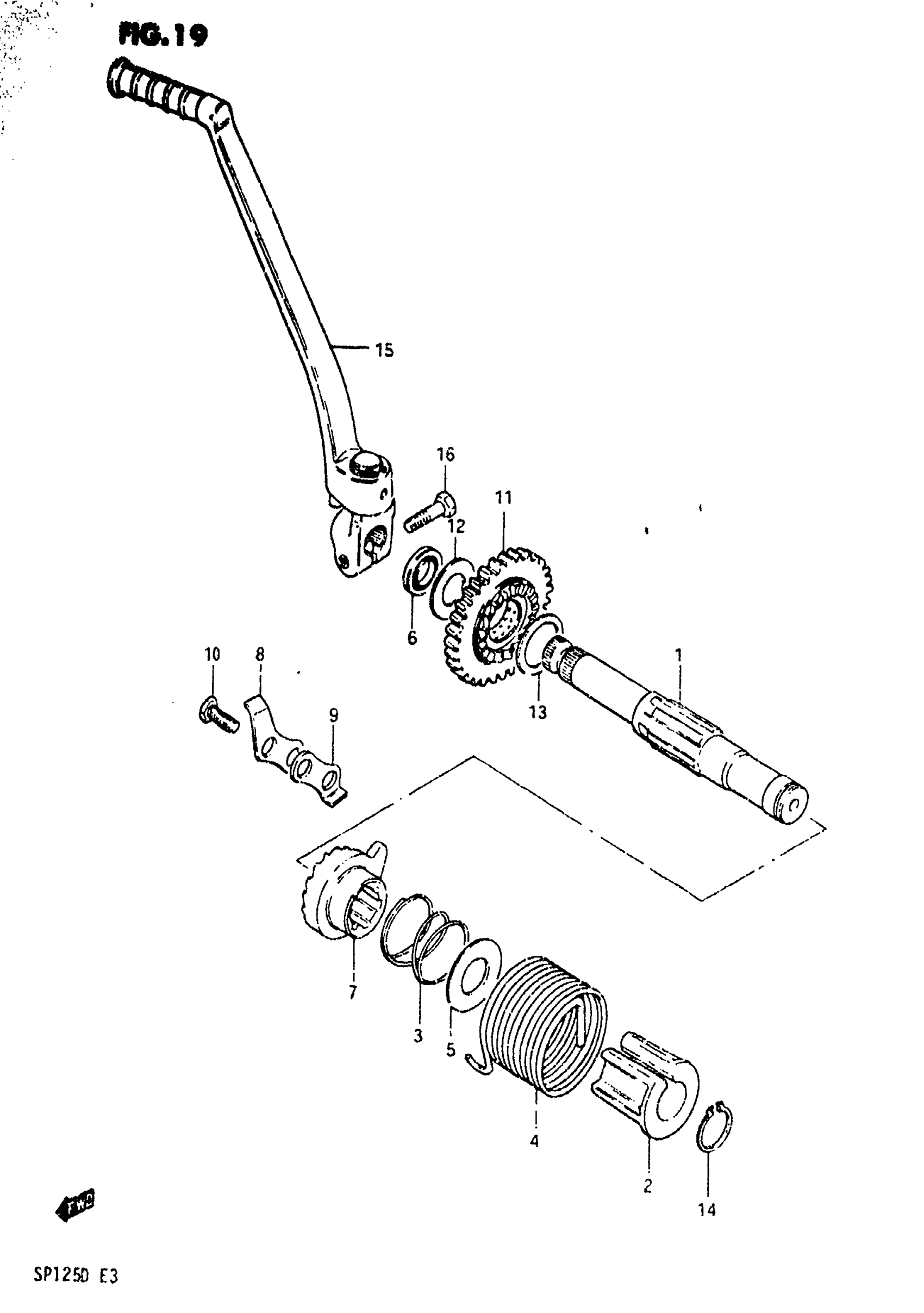

Suzuki SP125 (1983) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER This part replaces 26211-05200.

26211-05203

$103.72

2

GUIDE, KICK STARTER

26221-05200

$9.50

3

SPRING

09440-32006

$2.58

4

SPRING

09448-45003

$7.10

5

PLATE

08211-17341

$2.53

6

OIL SEAL (16X24X5)

09285-16003

$3.13

7

STARTER, KICK This part replaces 26231-38200.

26231-38202

$38.87

8

GUIDE, KICK STARTER

26232-38200

Unavailable

9

STOPPER, KICK STARTER

26233-32400

$6.10

10

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.55

11

GEAR, KICK STARTER DRIVE | MODEL Z This part replaces 26240-05200.

26240-05202

Unavailable

11

GEAR, KICK STARTER DRIVE | MODEL D This part replaces 26240-05201.

26240-05202

Unavailable

12

WASHER, RH

09160-16003

$3.67

13

WASHER (20X26X1) This part replaces 08211-20261.

09181-20139

$1.82

14

CIRCLIP

09380-17001

$1.90

15

LEVER ASSY, KICK STARTAR | MODEL Z This part replaces 26300-05203.

26300-05213

Unavailable

15

LEVER ASSY, KICK STARTAR | MODEL D

26300-05213

Unavailable

16

BOLT | MODEL Z This part replaces 01107-08258.

01500-08257

$2.53

16

BOLT,8X25 | MODEL D This part replaces 09100-08193.

09100-08193-XC0

Unavailable
