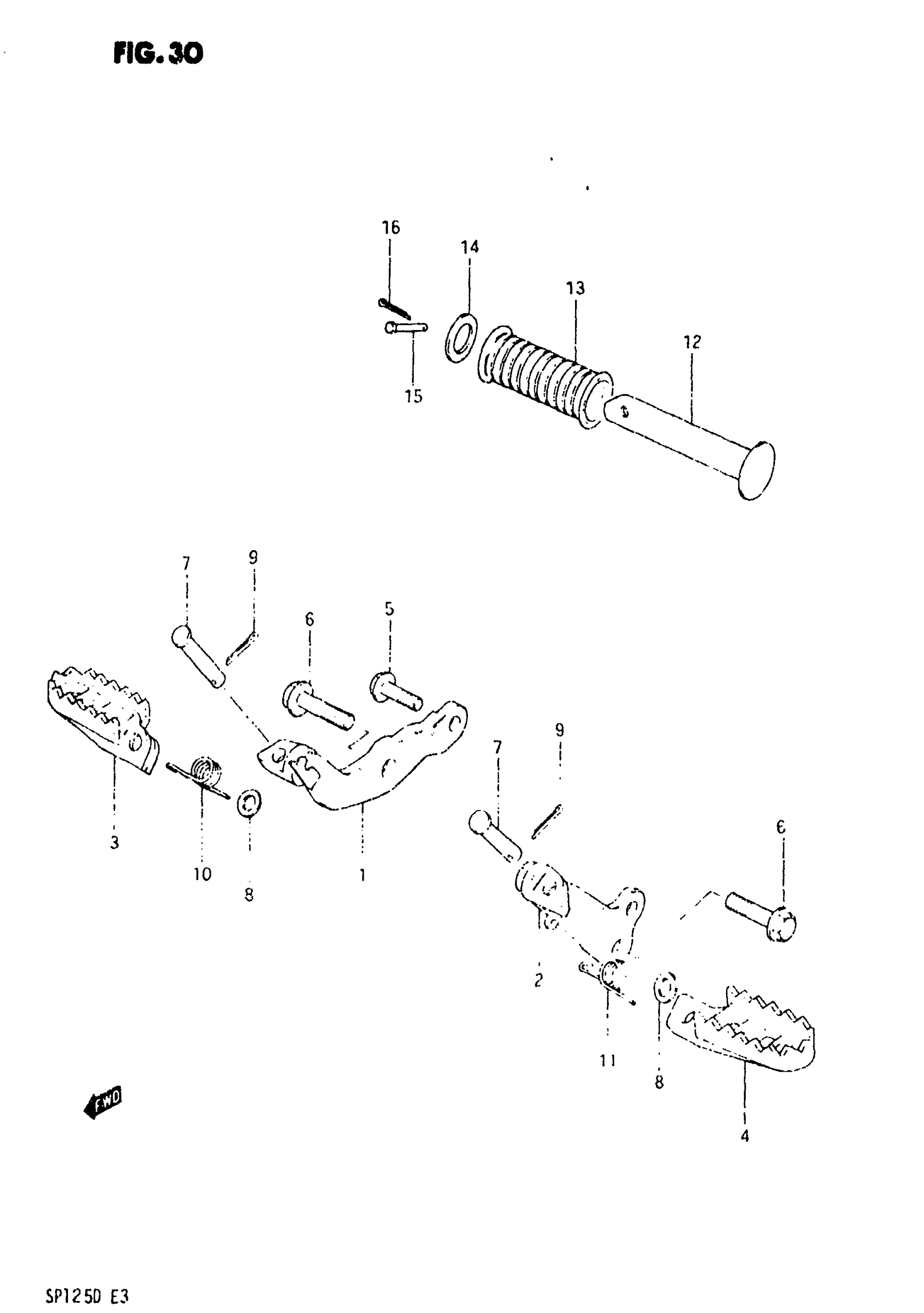

Suzuki SP125 (1983) FOOTREST Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 43510-05201.

43510-05201-019

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 43520-05200.

43520-05200-019

Unavailable

3

FOOTREST, FRONT RH (BLACK) This part replaces 43551-37202.

43551-37202-019

Unavailable

4

FOOTREST, FRONT LH (BLACK) This part replaces 43561-40401.

43561-40401-019

Unavailable

5

BOLT, PROP SHAFT REAR This part replaces 01527-10207.

01550-1020A

$2.80

6

BOLT This part replaces 01527-12255.

01550-1225A

$4.02

7

PIN This part replaces 09200-08035.

09200-08064

$5.61

8

WASHER This part replaces 08322-21088.

08322-01087

$1.86

9

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

10

SPRING, RH

09448-14027

Unavailable

11

SPRING, LH This part replaces 43582-14300.

43582-14600

Unavailable

12

BAR, PILLION FOOTREST

43610-03001

$6.14

13

RUBBER

43612-03001

$4.85

14

WASHER This part replaces 09160-19006.

09160-19024

$2.76

15

PIN

09200-06010

$1.87

16

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22
