1983 Suzuki SP100 Stand - Rear Brake Diagram

← All diagrams

Find the part on the Stand - Rear Brake diagram for your 1983 Suzuki SP100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

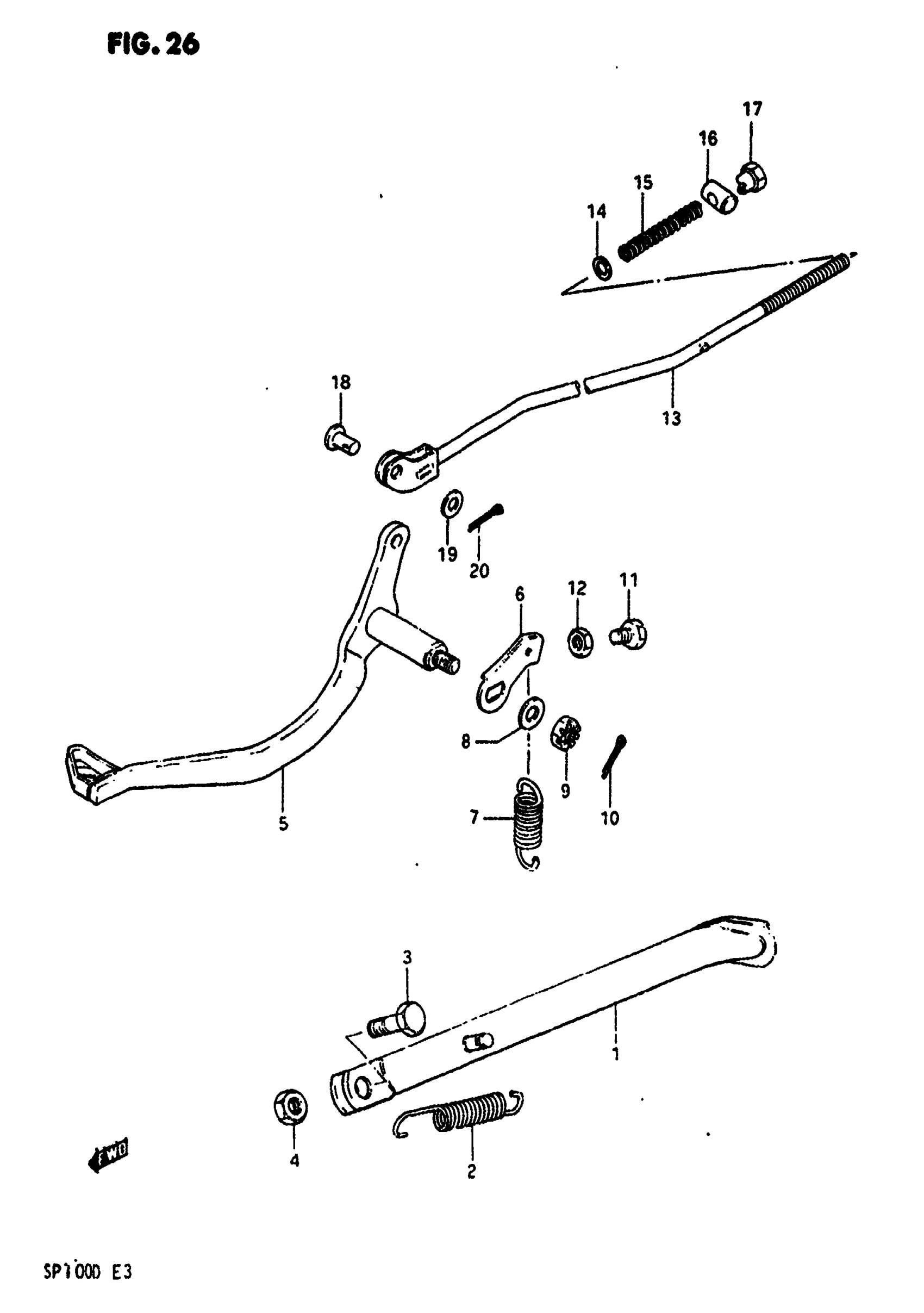

1983 Suzuki SP100 Stand - Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 42310-05260.

42310-05260-019

1
Out of stock

2

SPRING

09443-17007

1
Out of stock

3

BOLT (10X30)

09100-10067

1
Out of stock

4

NUT This part replaces 08310-22108.

08310-00107

1
Out of stock

5

PEDAL, BRAKE

43110-05260

1
Out of stock

6

ARM, BRAKE PEDAL

43128-05250

1
Out of stock

7

SPRING This part replaces 09443-14020.

09443-14015

1
Out of stock

8

WASHER

08211-08202

1
Out of stock

9

NUT This part replaces 08314-41088.

08314-4008B

1
Out of stock

10

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

11

BOLT

01607-06205

1
Out of stock

12

.NUT This part replaces 08310-11068.

08310-00067

1
Out of stock

13

NO DESCRIPTION AVAILABLE | Includes Item(s) 14 - 20 This part replaces 43300-20400.

43300-20X50

1
Out of stock

14

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

15

SPRING

09440-09004

1
Out of stock

16

PIN

09209-11002

1
Out of stock

17

.NUT This part replaces 09150-06009.

09150-06010

1
Out of stock

18

PIN

09200-06039

1
Out of stock

19

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

20

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock
