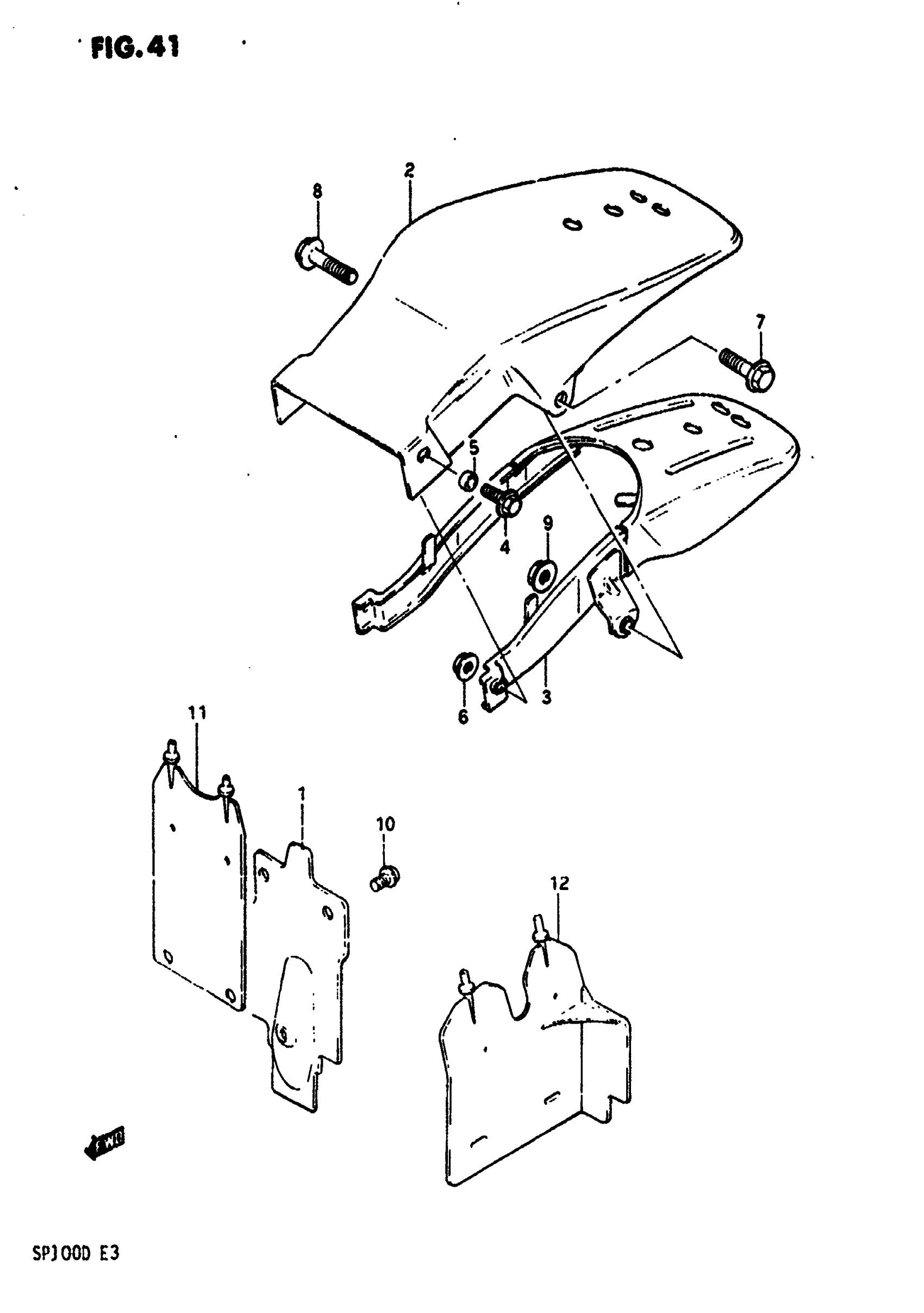

Suzuki SP100 (1983) REAR FENDER Diagram

#

Description
Price

1

REAR FENDER, FRONT

63112-05200

Unavailable

2

FENDER, REAR (RED)

63111-05260-07P

Unavailable

3

REINFORCEMENT

63120-05260

Unavailable

4

BOLT This part replaces 01517-06208.

01550-06207

$2.38

5

SPACER (6.5X9X5) This part replaces 09180-06073.

09180-06306

$2.13

6

NUT This part replaces 08319-31068.

08319-31067

$2.09

7

BOLT This part replaces 01517-08258.

01550-08257

$2.80

8

BOLT This part replaces 01517-08308.

01550-08307

$3.35

9

NUT This part replaces 08319-31088.

08319-3108A

$2.38

10

SCREW This part replaces 02152-06128.

02112-06127

$1.89

11

MUD FLAP, FRONT

63411-05260

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 63416-05200.

63416-05201

Unavailable
