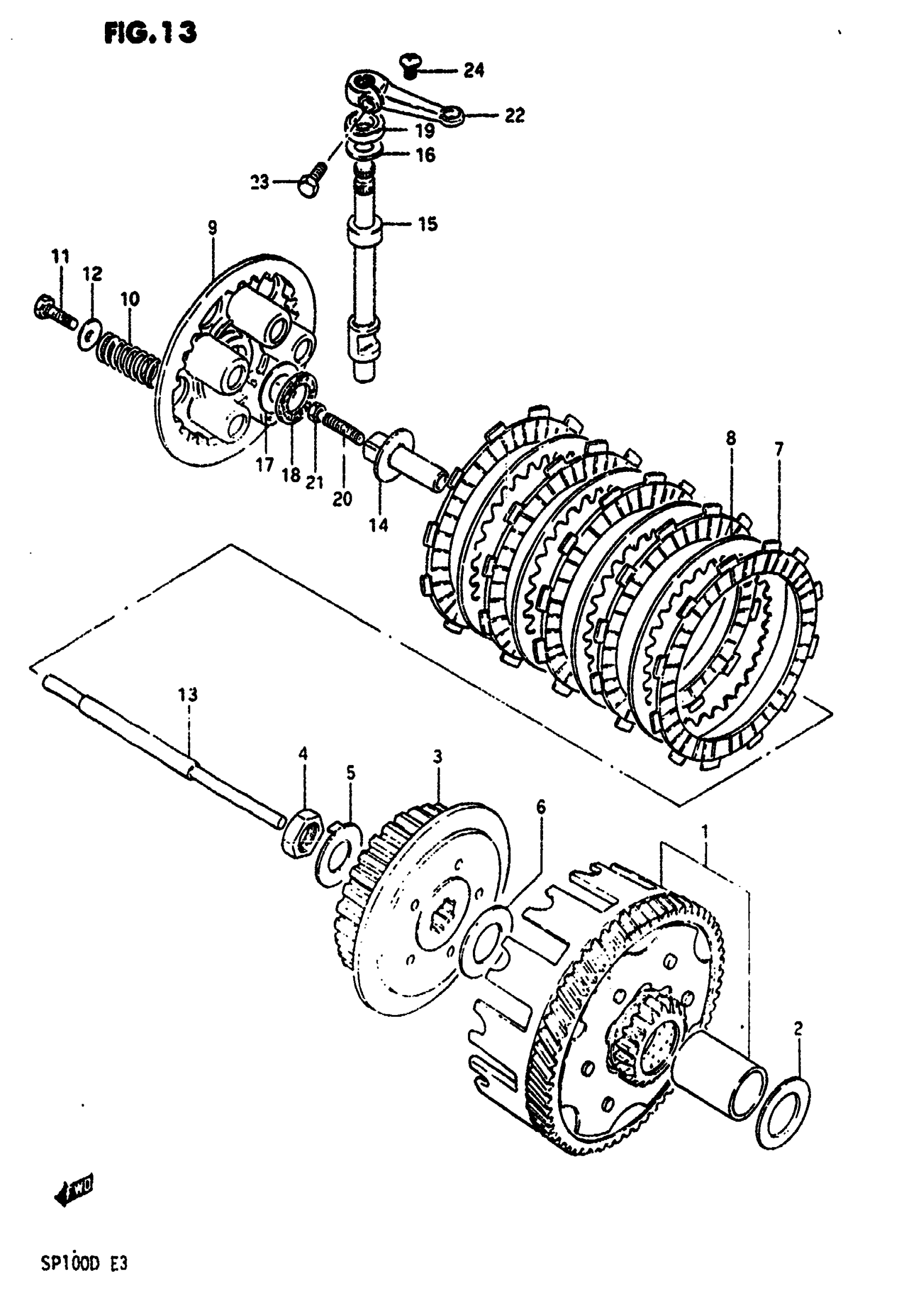

Suzuki SP100 (1983) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | NT:20/60 This part replaces 21200-05860.

21200-05863

Unavailable

2

WASHER

08211-20353

Unavailable

3

HUB, CLUTCH SLEEVE (NT:30) This part replaces 21411-05200.

21411-05230

$87.95

4

NUT This part replaces 09140-16014.

09140-16005

$4.08

5

LOCK WASHER

09169-16003

$2.67

6

WASHER

08211-20352

Unavailable

7

PLATE, CLUTCH DRIVE This part replaces 21441-28301.

21441-13A01

$13.49

8

PLATE, CLUTCH DRIVEN (T:1.6) This part replaces 21451-28000.

21451-19A00

$6.94

9

DISC, CL PRESSURE This part replaces 21462-14102.

21462-14130

$28.07

10

SPRING

09440-15014

$3.08

11

BOLT

09100-05002

$1.50

12

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.33

13

ROD, CLUTCH PUSH This part replaces 23110-05200.

23110-05203

$20.33

14

PIECE, CLUTCH PUSH This part replaces 23121-38200.

23121-38201

$30.18

15

CAMSHAFT, CLUTCH RELEASE

23122-05200

$56.53

16

WASHER, CLUTCH RELEASE This part replaces 08211-10201.

09181-10195

$2.00

17

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.52

18

THRUST BEARING

09263-15003

$7.49

19

SEAL, CLUTCH RELEASE ARM This part replaces 09282-10007.

09282-10012

$7.20

20

SCREW This part replaces 09134-06001.

09134-06010

$2.81

21

.NUT This part replaces 08310-22068.

08310-00067

$1.83

22

ARM, CLUTCH RELEASE This part replaces 23271-46000.

23271-46010

$32.70

23

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

24

SCREW

02142-06108

$2.67
