1983 Suzuki SP100 Cam Shaft - Valve Diagram

← All diagrams

Find the part on the Cam Shaft - Valve diagram for your 1983 Suzuki SP100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

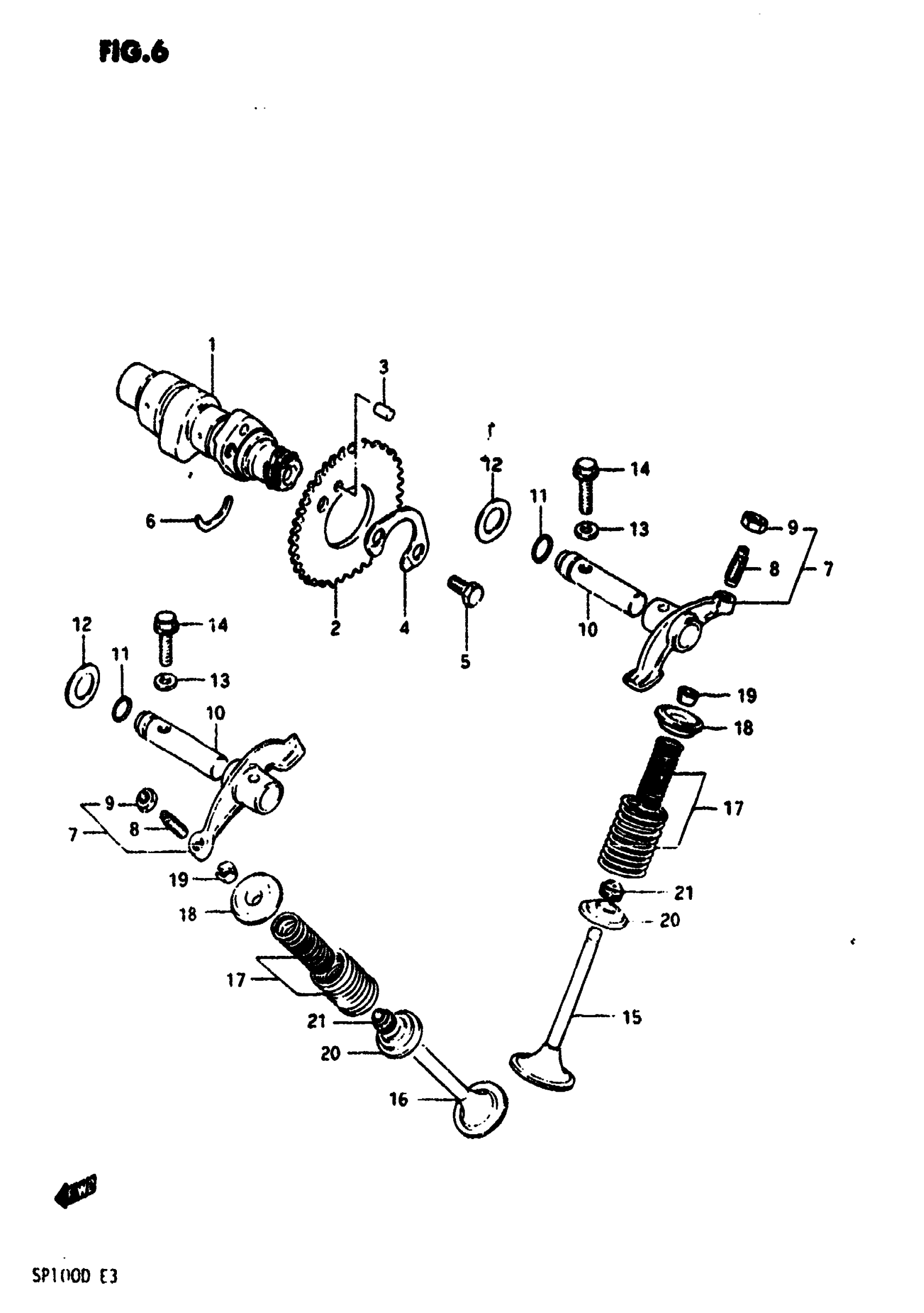

1983 Suzuki SP100 Cam Shaft - Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAM SHAFT This part replaces 12711-05210.

12711-05211

1
Out of stock

2

1

$25.93

In stock

3

PIN

09261-05005

1
Out of stock

4

1

$2.76

In stock

5

BOLT

09111-06032

2

$2.54

In stock

6

C-RING

09390-22002

1
Out of stock

9

.NUT, ADJUSTING SCREW

12843-32400

2

$2.92

In stock

10

2

$22.25

In stock

12

WASHER

09164-12021

2

$2.18

In stock

13

GASKET

09168-06004

2
Out of stock

14

BOLT This part replaces 01517-06258.

01550-06257

2
Out of stock

15

VALVE, INTAKE (OD:28)

12911-05221

1
Out of stock

16

VALVE, EXHAUST (OD:23)

12912-05221

1
Out of stock

17

SPRING SET, VAL This part replaces 12920-05230.

12920-11C00

2
Out of stock

19

COTTER, VALVE

12932-49200

4
Out of stock

20

2

$5.98

In stock
